Description
Description

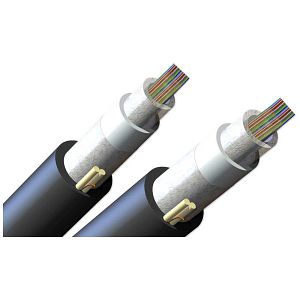

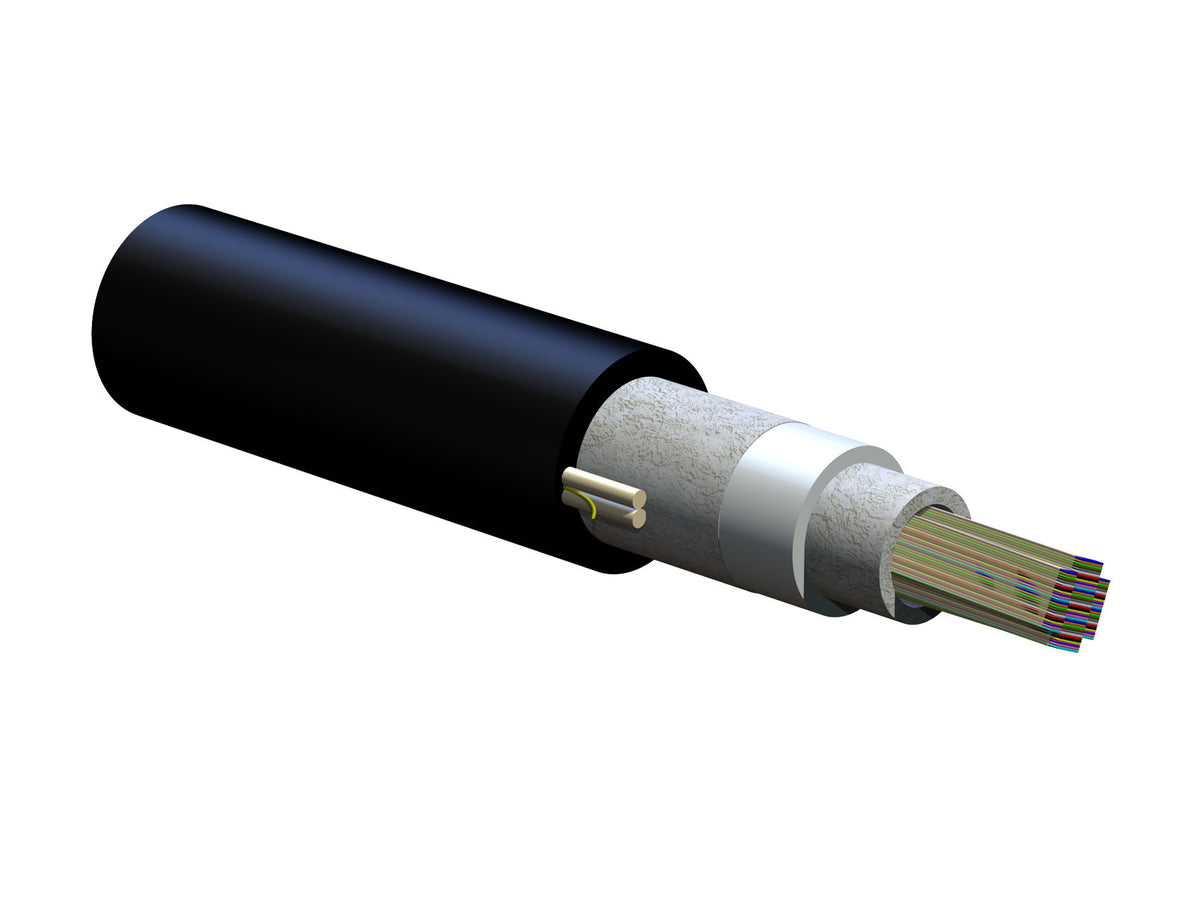

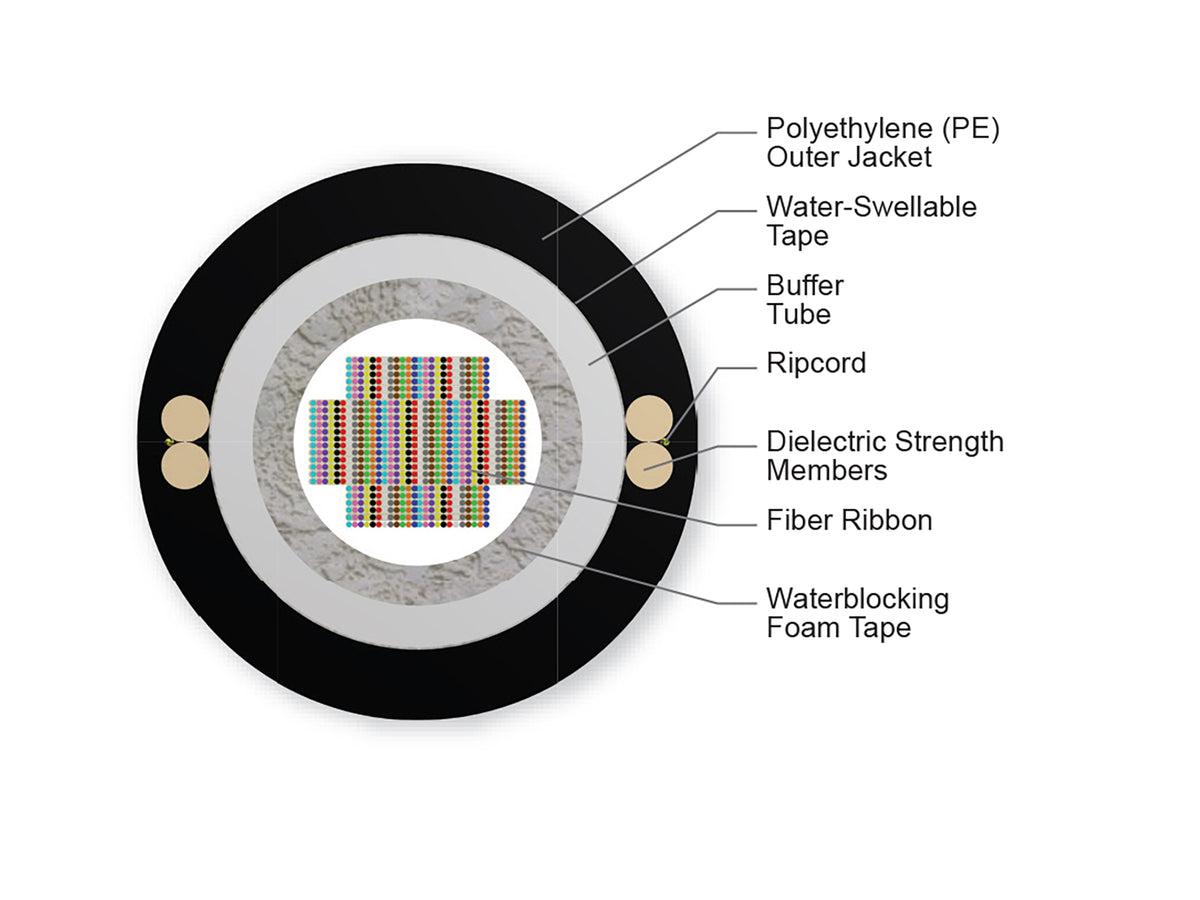

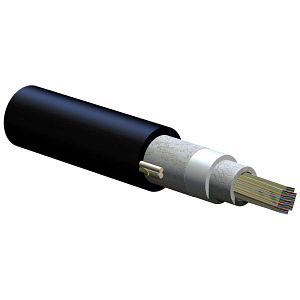

Corning SST-UltraRibbon gel-free cables continue the innovative breakthrough in outdoor cable technology by introducing a new generation of high-fiber-count gel-free cables. Providing high-fiber-counts in a rugged, compact design, the enhanced coupling features ensure the ribbon stack and cable act as one unit, providing long-term reliability in aerial, duct and direct-buried applications. These features also minimize ribbon movement in situations where cable vibration may occur. The cable consists of a single buffer tube containing 24-fiber and 36-fiber ribbons wrapped within a water-swellable foam tape and surrounded by a second water-swellable tape. Each 24-fiber and 36-fiber ribbon can be easily separated by hand into 12-fiber ribbons. Strength members located 180 degrees apart under the cable jacket provide tensile and anti-buckling strength. The cable is jacketed with a black UV-resistant polyethylene sheath.
Corning - 720EV4-14100D53 - Features
- Gel-free with no filling compound
- Eliminates time and labor of cleaning
- Innovative waterblocking technology
- Prevents water penetration
- Up to 864 fibers in a compact design
- Maximizes use of critical duct space
- 12-fiber ribbons individually numbered
- Easy identification
Specifications
Specifications
Corning - 720EV4-14100D53 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor - Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Outdoor
- Outdoor Duct Cables
Corning - 720EV4-14100D53 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 720EV4-14100D53 |
| EAN Code | 4056418781136 |
| Environment | Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Application | Duct, Aerial |
| Fiber Count | 720 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Common Installations | Outdoor lashed aerial and duct, indoor when installed according to National Electrical Code (NEC) Article 770 |
| Design and Test Criteria | ANSI/ICEA S-87-640, Telcordia GR-20, RDUP PE-90 |
| Environmental Conditions | - |
| Temperature Range, Installation | -30 °C to 70 °C (-22 °F to 158 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 720 |
| Buffer Tube Diameter | 18 mm (0.71 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Polyethylene (PE) |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Waterblocking foam tape |
| Tape, Layer 1 | Water-swellable |
| Tape, Layer 2 | Water-swellable |
| Ribbons per Tube | 12 and 12 |
| Fibers per Ribbon | 24 and 36 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 2700 N (606.98 lbf) |
| Min. Bend Radius Installation | 351 mm (13.82 in) |
| Min. Bend Radius Operation | 234 mm (9.21 in) |
| Nominal Outer Diameter | 23.4 mm (0.92 in ) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 0 |
| Maximum Attenuation | 0.35 dB/km / 0.35 dB/km / 0.25 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Ordering Information | - |
| Weight | 345 kg/km (231.83 lb/1000 ft) |
| Country of Origin | US - United States |
