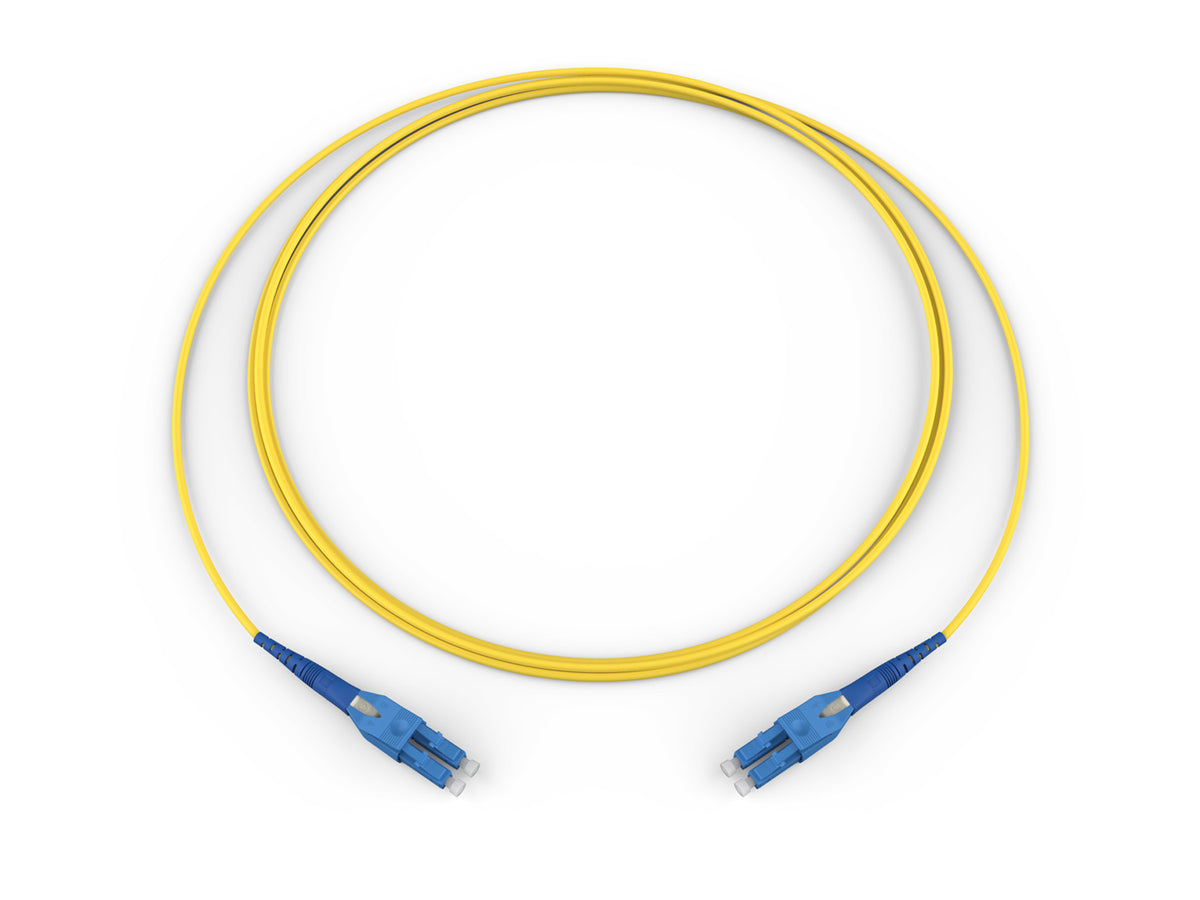

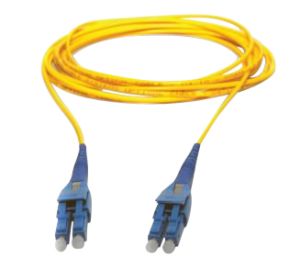

Corning 787802GD120010M | Edge Uniboot Jumper
Regular price
$39.36
Unit price
Brand: Corning
|
SKU:
443663
Regular price
$39.36
Unit price
Description
Description
Corning 787802GD120010M | Edge Uniboot Jumper Standard LCU Uniboot SM / Standard LCU Uniboot SM, SMF Ultra, 2F, DFX 250 Riser, Standard Yellow Jacket 10 Meters
Corning - 787802GD120010M - Features
- State-of-the-art manufacturing processes
- Advanced technology results in unsurpassed product consistency and quality
- Global operations
- Mitigates trade barriers or supply disruptions
- Flexible design options
- Choice of materials for strength elements and fiber properties for various application requirements
- Superior performance testing
- Each termination is tested to ensure the highest network performance
Specifications
Specifications
Corning - 787802GD120010M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Data Communications and Networking
- Patch Cords
- Fiber Optic Patch Cords
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 787802GD120010M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 787802GD120010M |
| EAN Code | 4056418777627 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | Bend-improved SM (OS2) |
| Cable Assembly Type | Two Fiber |
| Application | Data Center, General Building Applications, Vertical Riser |
| Cable Type | Interconnect |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 2 |
| Mechanical Specifications | - |
| Minimum Bend Radius | 10 mm (0.39 in) |
| Cable Length | 10 m (32.8 ft) |
| Optical Characteristics | - |
| Fiber Code | G |
| Fiber Type | Single-Mode Ultra-Bendable Fiber |
| Fiber Compliance | ITU-T G.652.D and ITU-T G.657.A1 |
| Fiber Core Diameter | 8.2 µm |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Serial 1 Gigabit Ethernet | 5000 MHz*km / - / - |
| Serial 10 Gigabit Ethernet | 10000 MHz*km / - / 40000 MHz*km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | OS2 |
| Specifications - Connector A | - |
| Polish | UPC |
| Boot Color | Blue |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Polish | UPC |
| Boot Color | Blue |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Type | Fiber Optic Jumper |
| Transmission Mode | Singlemode |
| Cable Construction | Duplex |
| End Connector - A | LC Uniboot |
| End Connector - B | LC Uniboot |
| End Type A | Ceramic Ferrule, Composite Housing |
| End Type B | Ceramic Ferrule, Composite Housing |
| Jacket Rating | CM |
| Length - Metric | 10m |
| Length | 32.8 ft. |
