Brand: Corning
|
SKU:
10122838

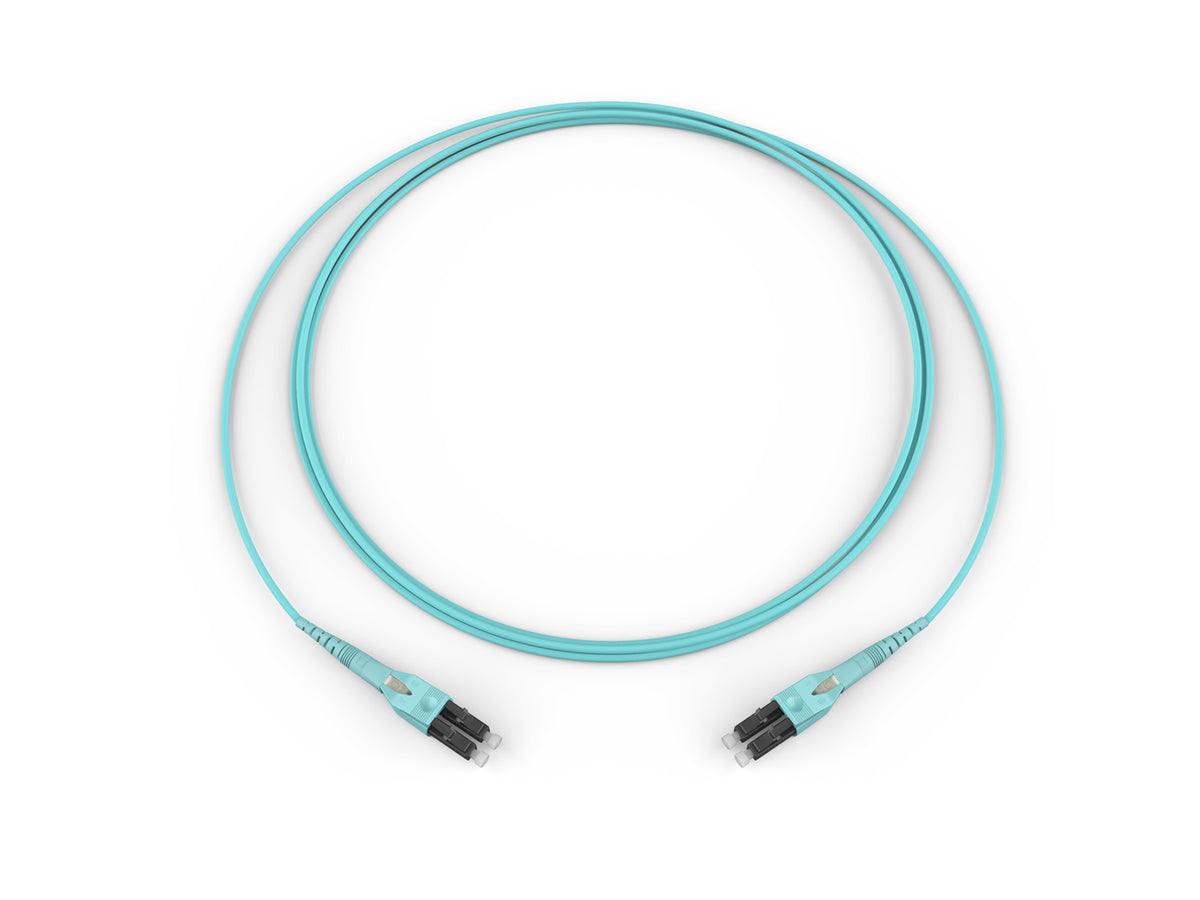

Corning 797902QD120004. | Edge Uniboot Jumper Standard LC Uniboot MM - Standard LC Uniboot MM, OM4 50 µm, Standard Aqua Jacket, 4 m
Regular price
$56.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 797902QD120004. | Edge Uniboot Jumper Standard LC Uniboot M...
Regular price
$56.99
Unit price
Description
Description
Corning 797902QD120004. | Edge Uniboot Jumper Standard LC Uniboot MM - Standard LC Uniboot MM, OM4 50 µm, Standard Aqua Jacket, 4 m
Corning - 797902QD120004. - Features
- State-of-the-art manufacturing processes
- Advanced technology results in unsurpassed product consistency and quality
- Global operations
- Mitigates trade barriers or supply disruptions
- Flexible design options
- Choice of materials for strength elements and fiber properties for various application requirements
- Space reducing design
- The uniboot design allows one cable to carry both fibers, reducing the jumper bulk when routing
- Superior performance testing
- Each termination is tested to ensure the highest network performance
Specifications
Specifications
Corning - 797902QD120004. - Specifications
| Product Number | 797902QD120004M |
|---|---|
| EAN Code | 4056418169941 |
| Flame Rating | Riser (ofNR) |
| Fiber Category | 50 µm MM (OM4) |
| Cable Assembly Type | Two Fiber |
| Application | Data Center, General Building Applications, Vertical Riser |
| Cable Type | Interconnect |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Fiber Count | 2 |
| Outer Jacket Color | Aqua |
| Fiber Type | Multimode |
| Minimum Bend Radius | 10 mm (0.39 in) |
| Nominal Outer Diameter | 2 mm (0.08 in ) |
| Fiber Code | T |
| Performance Option Code | 90 |
| Fiber Category | OM4 |
| Fiber Type | Multimode |
| Fiber Name | 50 µm MM (OM4) |
| Boot Color | Aqua |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
