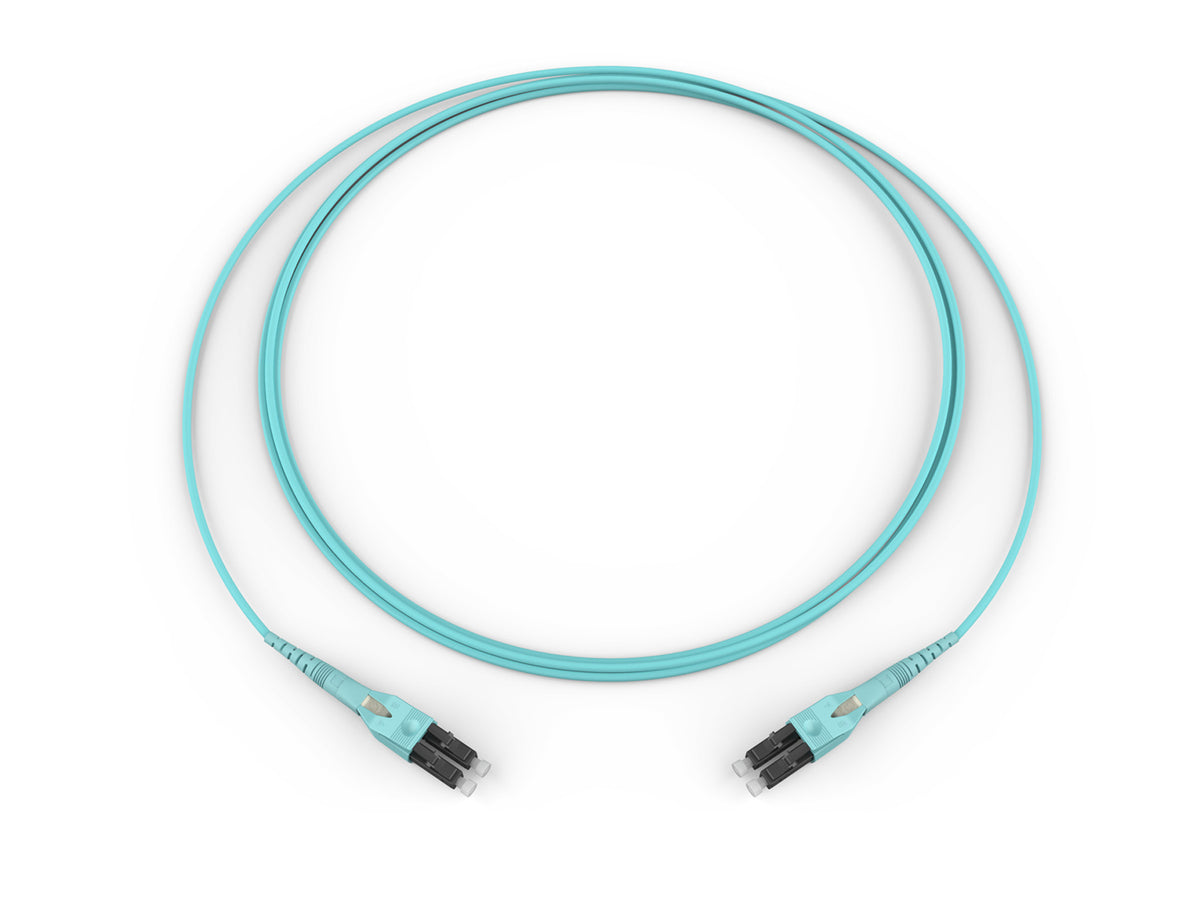

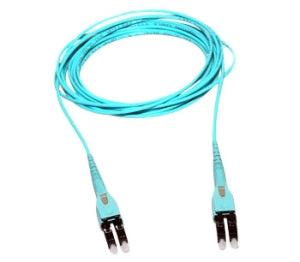

Corning 797902TD120003M | Edge Uniboot Jumper
Regular price
$56.58
Unit price
Brand: Corning
|
SKU:
405582
Regular price
$56.58
Unit price
Description
Description
Corning 797902TD120003M | Edge Uniboot Jumper Standard LC Uniboot MM / Standard LC Uniboot MM, OM3 50um, 2F, DFX 250 Riser, Standard Aqua Jacket 3 Meters
Corning - 797902TD120003M - Features
- State-of-the-art manufacturing processes
- Advanced technology results in unsurpassed product consistency and quality
- Global operations
- Mitigates trade barriers or supply disruptions
- Flexible design options
- Choice of materials for strength elements and fiber properties for various application requirements
- Superior performance testing
- Each termination is tested to ensure the highest network performance
Specifications
Specifications
Corning - 797902TD120003M - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Data Communications and Networking
- Patch Cords
- Fiber Optic Patch Cords
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - 797902TD120003M - Specifications
| General Specifications | - |
|---|---|
| Product Number | 797902TD120003M |
| EAN Code | 4056418179209 |
| Flame Rating | Riser (OFNR) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | Two Fiber |
| Application | Data Center, General Building Applications, Vertical Riser |
| Cable Type | Interconnect |
| Standards | - |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| Design | - |
| Fiber Count | 2 |
| Fiber Type | Multimode |
| Mechanical Specifications | - |
| Minimum Bend Radius | 10 mm (0.39 in) |
| Cable Length | 3 m (9.84 ft) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Name | G50/125 Pretium 300 ULTRA-BEND 7.5 |
| Fiber Type | Multimode |
| Fiber Compliance | IEC 60793-2-10 for A1a class 50/125 multimode fibers; TIA/EIA 492AAAC-A (OM3); ITU-T Recommendation G.651; ISO/IEC 11801 Ed.2.2 Grade OM3 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Boot Color | Aqua |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Housing Material | Composite |
| Specifications - Connector B | - |
| Boot Color | Aqua |
| Connector Type | LC Uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Black |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Type | Fiber Patch Cord |
| Transmission Mode | Multimode |
| Cable Construction | Duplex |
| End Connector - A | LC |
| End Connector - B | LC |
| End Type A | Ceramic Ferrule |
| End Type B | Ceramic Ferrule |
| Jacket Rating | CM |
| Length - Metric | 3m |
| Length | 9.8 ft. |
