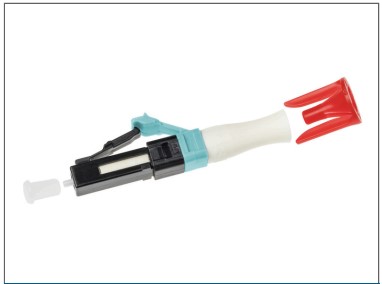

Corning 80611327745 | No Polish Connectors NPC LC/OM4/250/900 (60 Pieces)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 80611327745 | No Polish Connectors NPC LC/OM4/250/900 (60 P...
Description
Description
The No Polish Connector (NPC) enable fast, on-site installation of kink proof, 1.6 to 3 mm cable with bend insensitive, single mode fiber. The SC PC and SC APC compatible connectors consist of a factory-polished ferrule assembly and a mechanical splice that is installed without installation tools. A screw on boot retains the aramid fiber in the threads and it clamps the cable jacket by squeezing the jacket holder. Both connectors utilize standard, flat cleaves for the splice. Systems integrators and installers for communication companies and private networks will find this connector to be the easiest way to make field terminations that improve the cable management inside buildings or in the outside plant.
Corning - 80611327745 - Features
- Field Termination - Right cable length with no cable slack to store
- Simple Assembly Tool - Fast, easy installation
- 250/900 µm connectors and jacketed connectors available - Potentially improve supply chain and inventory management
- Factory-Polished fiber stub in ferrule - No on-site polish or adhesives required
- No Tool Investment - Enables maximum deployment speed by eliminating the purchase of installation tools and fiber cleavers (Easy Cleaver Combos)
Specifications
Specifications
Corning - 80611327745 - Specifications
| Fiber Category | 50 µm MM (OM3/OM4) |
|---|---|
| Product Type | Field-Installable Connectors |
| Technology | No-Epoxy/No-Polish |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | In compliance with environmental and mechanical requirements of TIA/ EIA-568-D.3, GR-1081, Issue 1 section 4.3 yield, Insertion loss requirements of GR-1081-CORE, Issue 1 (GR-326-CORE, Issue 4) Thermal Cycle and Thermal Age; Back reflection performance was typical of an index gelmatched mechanical splice connector |
| Temperature Cycling Standard | ? 0.2 dB IL, -10° to +60°C, 21 cycles |
| Connector Type | LC |
| Housing Color | Aqua |
| Ferrule Material | Yttria-stabilized Zirconia |
| Nominal Fiber Outer Diameter | 125 µm |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Polish | UPC |
| Insertion Loss, Max. | 0.75 dB |
| Insertion Loss, Typical | 0.2 dB |
| Reflectance, Typical | < -30 dB |
