Brand: Corning
|
SKU:
371-COROS2-RIBD-864

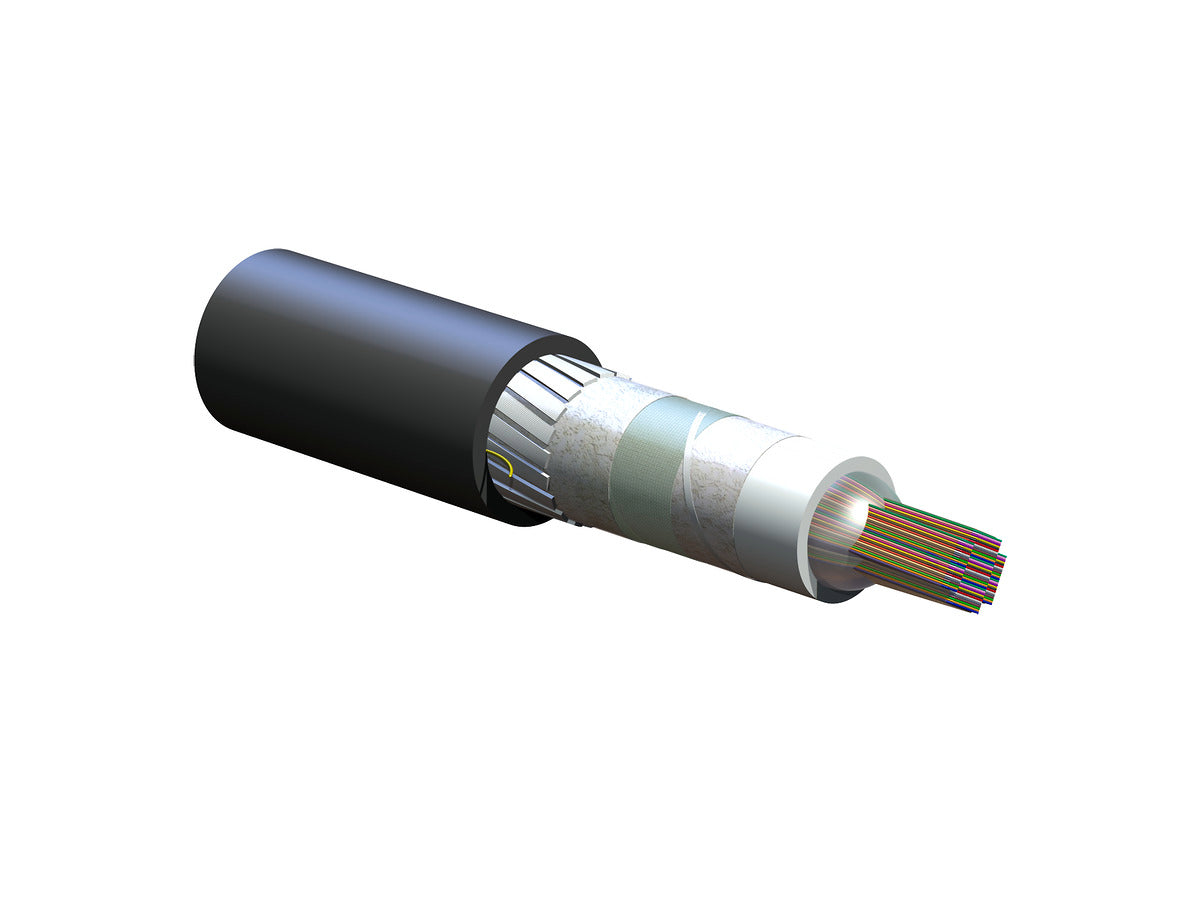

Corning 864EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Riser 864 F, Single-mode (OS2)
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 864EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Rise...
Regular price
$33.95
Unit price
Brand: Corning
|
SKU:
371-COROS2-RIBD-864
Regular price
$33.95
Unit price
Shipping calculated at checkout.
Description
Description
Corning 864EVF-14101-20 | FREEDM UltraRibbon Gel-Filled Cable, Riser 864 F, Single-mode (OS2)
Specifications
Specifications
Corning - 864EVF-14101-20 - Product Categories
- Fiber Optic Cables
- Indoor/Outdoor
- Indoor/Outdoor Riser Cables
Corning - 864EVF-14101-20 - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 864EVF-14101-20 |
| Item Description | FREEDM UltraRibbon Gel-Filled Cable, Riser 864 F, Single-mode (OS2) |
| General Specifications | - |
| Product Number | 864EVF-14101-20 |
| EAN Code | 4056418171043 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | Single-mode (OS2) |
| Flame Rating | Riser (OFNR) |
| Application | Aerial, Direct Buried, General Purpose Horizontal, Duct, Vertical Riser |
| Fiber Count | 864 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR, CSA FT-4 |
| Design and Test Criteria | ANSI/ICEA S-104-696, Telcordia GR-409 and GR-20 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10°C to 60°C (14°F to 140°F ) |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Temperature Range, Storage | -40°C to 70°C (-40°F to 158°F ) |

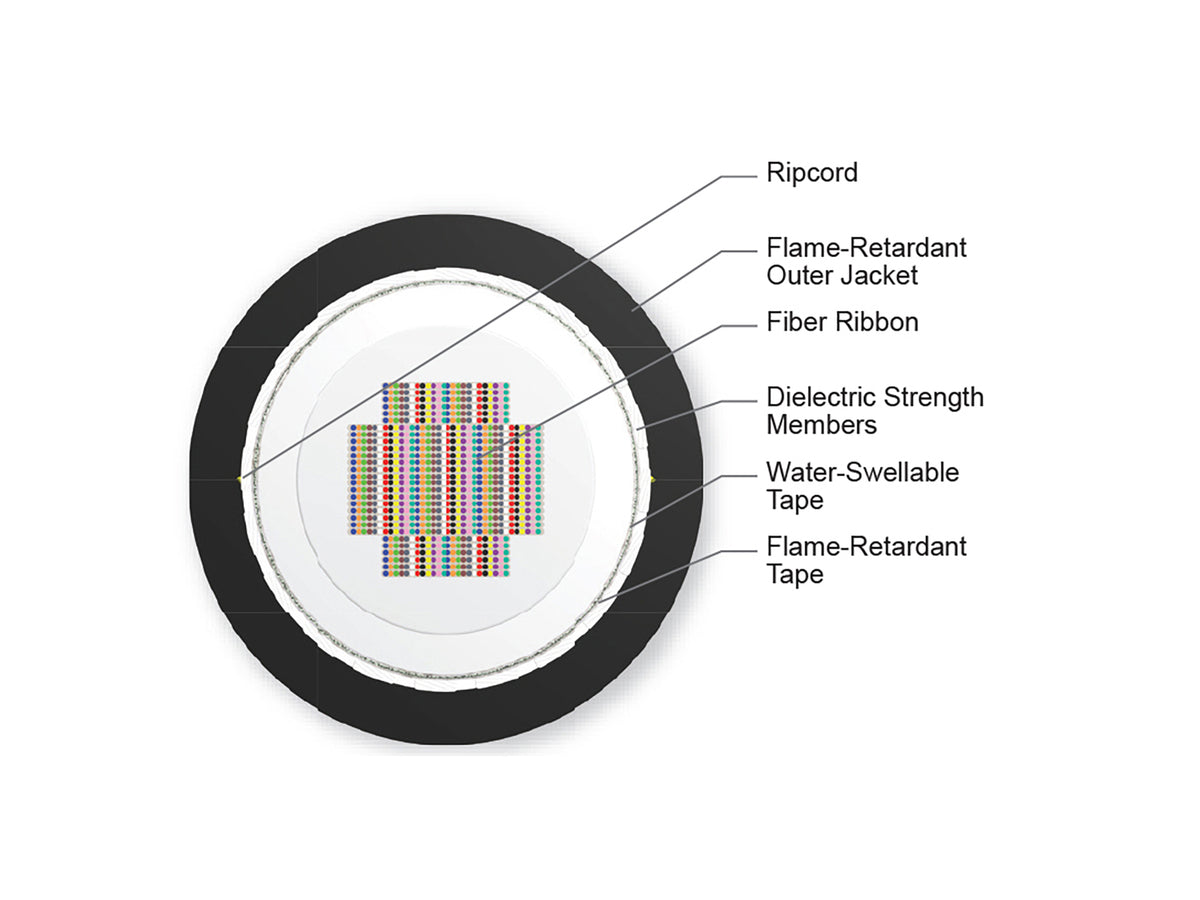

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 864 |
| Buffer Tube Diameter | 179mm (7.05in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Flame-retardant tape |
| Tape, Layer 2 | Flame-retardant tape |
| Tape, Layer 3 | Water-swellable |
| Ribbons per Tube | 16 and 12 |
| Fibers per Ribbon | 24 and 36 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890N (200.08lbf) |
| Max. Tensile Strength, Short-Term | 890N (200.08lbf) |
| Min. Bend Radius Installation | 381mm (15in) |
| Min. Bend Radius Operation | 254mm (10in) |
| Nominal Outer Diameter | 25.4mm (1in) |
| Optical Characteristics | - |
| Fiber Code | E |
| Fiber Name | Single-mode (OS2) |
| Fiber Type | Single-mode |
| Performance Option Code | 01 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | G.652.D |
| Dimensions | - |
| Cable Weight | 577kg/km (387.73lb/1000 ft) |
