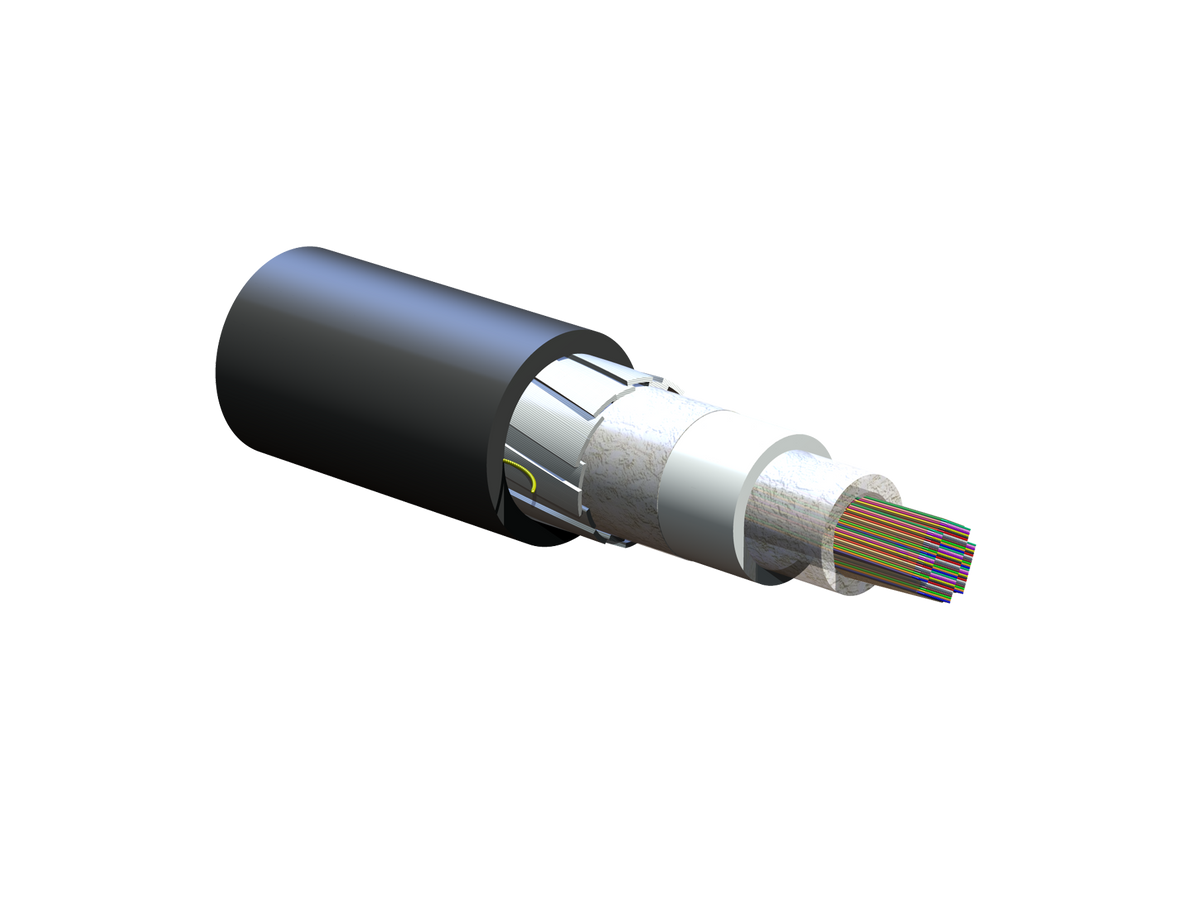

Corning 864ZVF-14101D20 | FREEDM UltraRibbon Gel-Free Cable, Riser 864 F, SMF-28 Ultra fiber, Single-mode (OS2)
Corning - 864ZVF-14101D20 - Features
- Precise fiber and ribbon geometries
- Excellent mass splicing yields
- Waterblocked cable
- Enables use of cables for outdoor applications
- 12-fiber ribbons with ribbon IDs
- Easy identification
- UV-resistant, flame-retardant jacket
- Rugged, durable and easy to strip
- Available in preconnectorized assemblies
- Easy field installation and reduced labor costs
- Common installations
- Outdoor aerial and duct
Specifications
Specifications
Corning - 864ZVF-14101D20 - Product Categories
- Shop by Manufacturer/Corning
- Wire & Cable
- Voice and Data Cable
- Indoor | Outdoor Fiber Optic Cable
- Fiber Optic Cables
- Indoor|Outdoor
- Indoor|Outdoor Riser Cables
Corning - 864ZVF-14101D20 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 864ZVF-14101D20 |
| Environment | Indoor/Outdoor |
| Cable Type | Ribbon |
| Product Type | Dielectric |
| Fiber Category | SMF-28 Ultra fiber |
| Flame Rating | Riser (OFNR) |
| Application | Direct Buried, Duct, Aerial, Vertical Riser, General Purpose Horizontal |
| Fiber Count | 864 |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | National Electrical Code (NEC) OFNR |
| Design and Test Criteria | ANSI/ICEA S-104-696, CSA FT-4 |
| Environmental Conditions | - |
| Temperature Range, Installation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Temperature Range, Operation | -40 °C to 70 °C (-40 °F to 158 °F ) |
| Temperature Range, Storage | -40 °C to 70 °C (-40 °F to 158 °F ) |

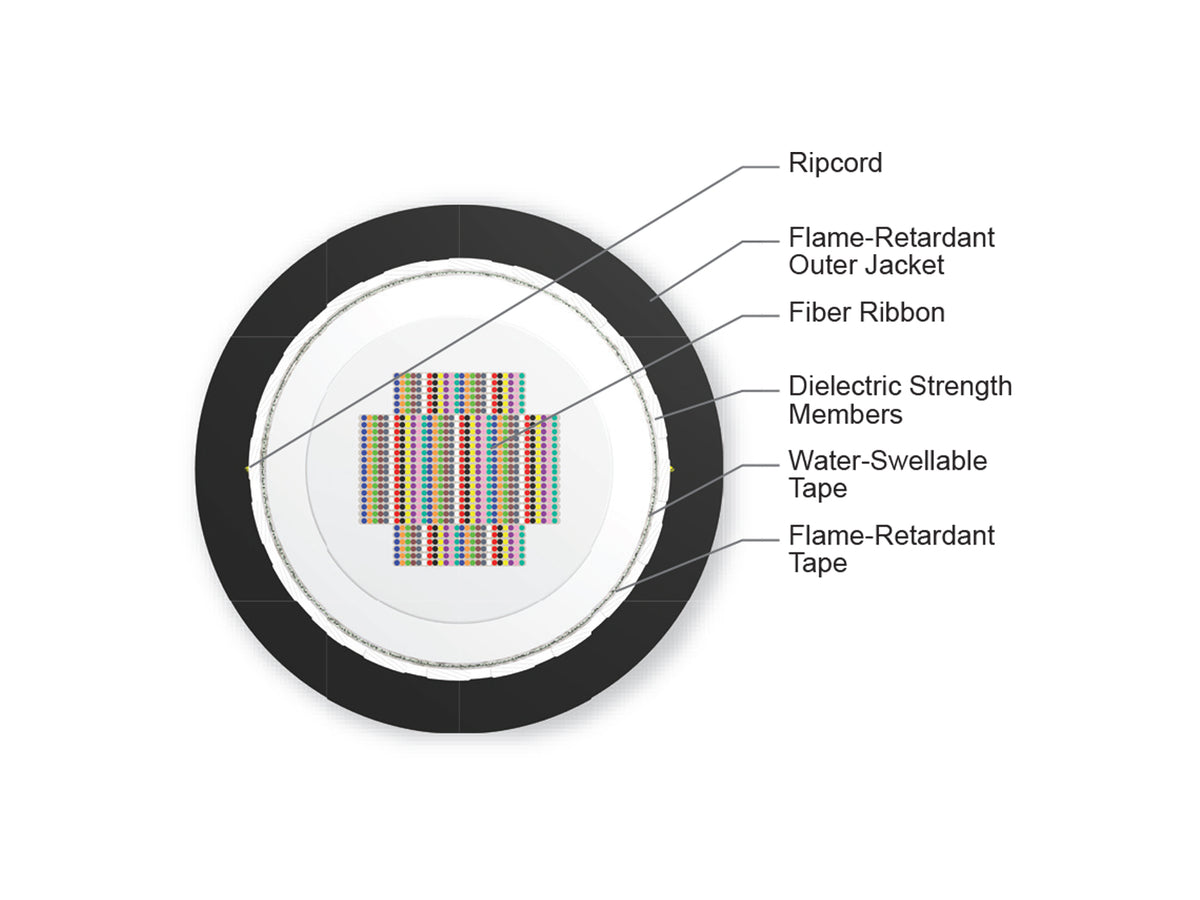

| Cable Design | - |
| Buffer Tube Color | Natural |
| Fiber Count | 864 |
| Buffer Tube Diameter | 181 mm (7.13 in) |
| Number of Ripcords | 2 |
| Fiber Coloring | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua |
| Outer Jacket Color | Black |
| Outer Jacket Material | Flame-Retardant, UV-Resistant |
| Tensile Strength Elements and/or Armoring - Layer 1 | Dielectric strength members |
| Tape | Water-swellable |
| Tape, Layer 1 | Waterblocking foam tape |
| Tape, Layer 2 | Waterblocking Tape |
| Ribbons per Tube | 12 and 16 |
| Fibers per Ribbon | 24 and 36 |
| Mechanical Specifications | - |
| Max. Tensile Strength, Long-Term | 890 N (200.08 lbf) |
| Max. Tensile Strength, Short-Term | 810 N (182.1 lbf) |
| Min. Bend Radius Installation | 381 mm (15 in) |
| Min. Bend Radius Operation | 254 mm (10 in) |
| Nominal Outer Diameter | 25.4 mm (1 in ) |
| Optical Characteristics | - |
| Fiber Code | Z |
| Fiber Name | SMF-28 Ultra fiber |
| Fiber Type | Single-mode |
| Performance Option Code | 1 |
| Maximum Attenuation | 0.4 dB/km / 0.4 dB/km / 0.3 dB/km |
| Wavelengths | 1310 nm / 1383 nm / 1550 nm |
| Fiber Category | ITU-T G.657.A1 |
| Ordering Information | - |
| Weight | 467.87 kg/km (314.39 lb/1000 ft) |
| All-Dielectric | YES |
| Armored | NO |
| Cable Type | RIBBON |
| Fiber Type | OS2 SINGLE-MODE |
| Fire Rating | RISER |
| Rodent Protected | NO |
| UNSPSC Code | 26121607 |
