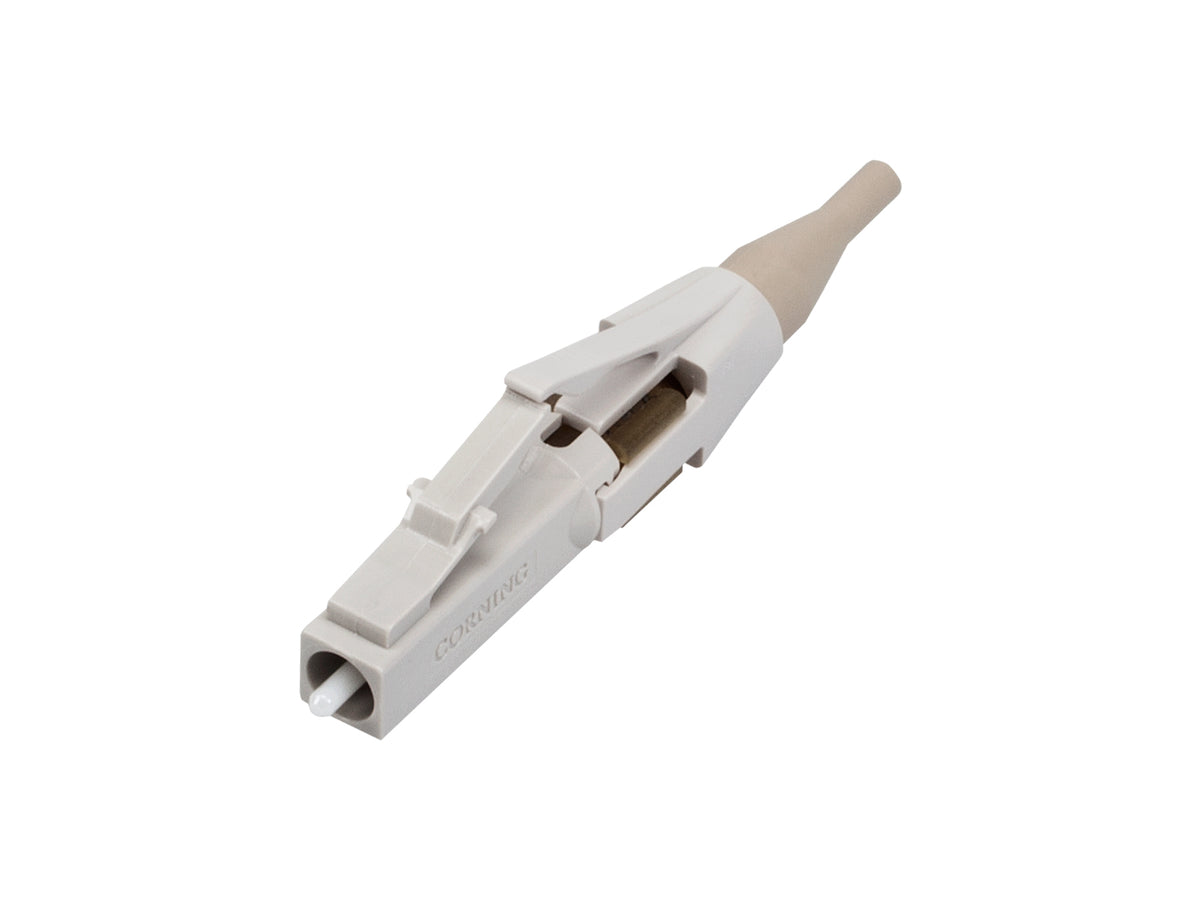

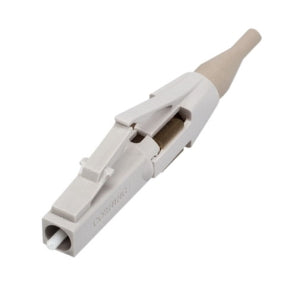

Corning 95-000-99 | UniCam Connector, LC
Regular price
$23.49
Unit price
Brand: Corning
|
SKU:
338909
Regular price
$23.49
Unit price
Description
Description
Corning 95-000-99 | UniCam Connector, LC 62.5 µm multimode (OM1)
Corning - 95-000-99 - Features
- Performance guaranteed
- 100 percent yield guarantee
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance
Specifications
Specifications
Corning - 95-000-99 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Connectivity
- Connectors
Corning - 95-000-99 - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-000-99 |
| EAN Code | 4056418202433 |
| Fiber Category | 62.5 µm MM (OM1) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Beige |
| Boot Color | Beige |
| Ferrule Material | Ceramic |
| Pinned | No |
| Mechanical Specifications - Connector | - |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 50 N (11.24 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change ? 0.2 dB, FOTP-6 |
| Optical Specifications - Connector | - |
| Polish | UPC |
| Insertion Loss, Max. | 0.5 dB |
| Insertion Loss, Typical | 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |

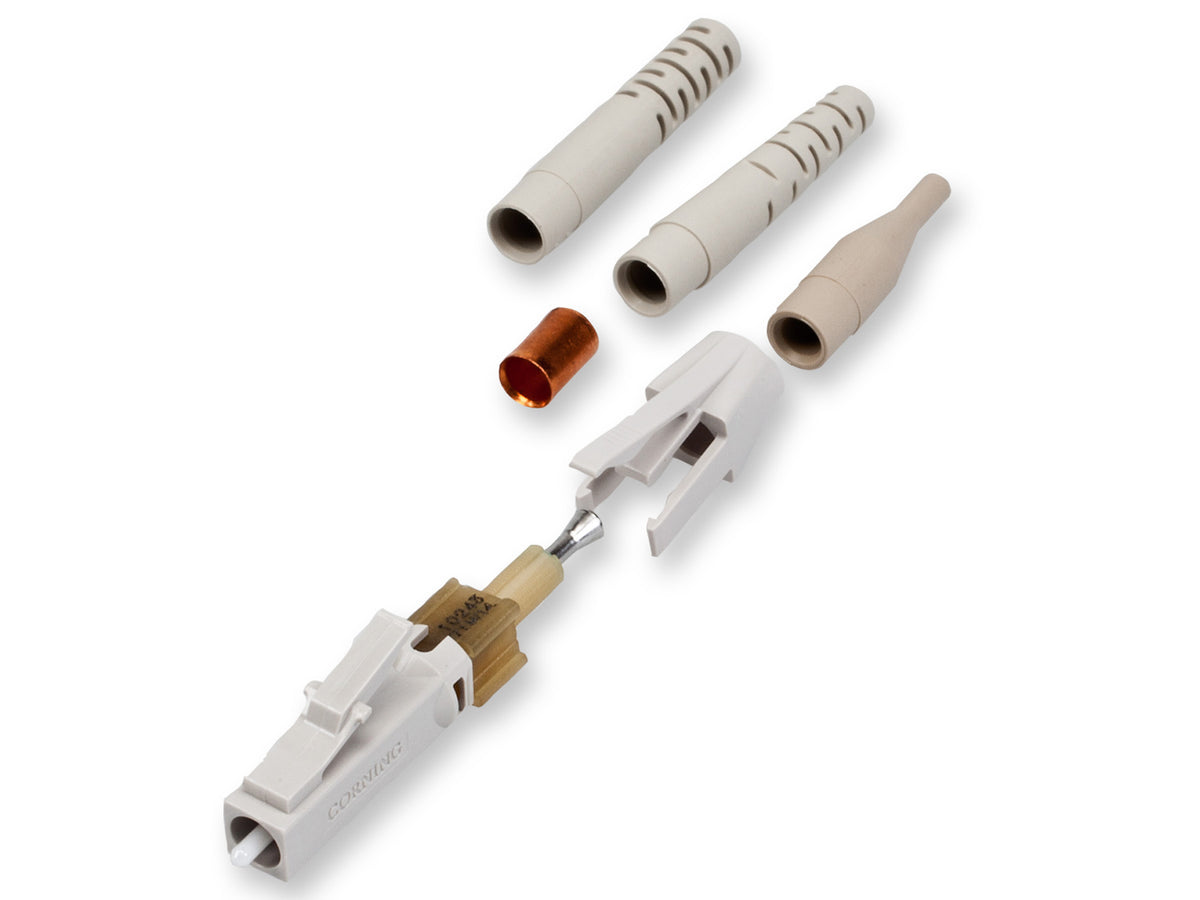

| Package Contents | Connector, Trigger, Crimp Band, Boot (900 µm), Boot (3.0 mm), Boot (2.0 mm) |
| Units per Delivery | 1/1" |
| Connector Type | LC Field Terminating Connector |
| Fiber Type | Multimode 62.5um |
| Ferrule | Ceramic |
| Installation | Cleave, Cam and Crimp |
| Color | Beige Housing, Beige Boot |
