Brand: Corning
|
SKU:
286235

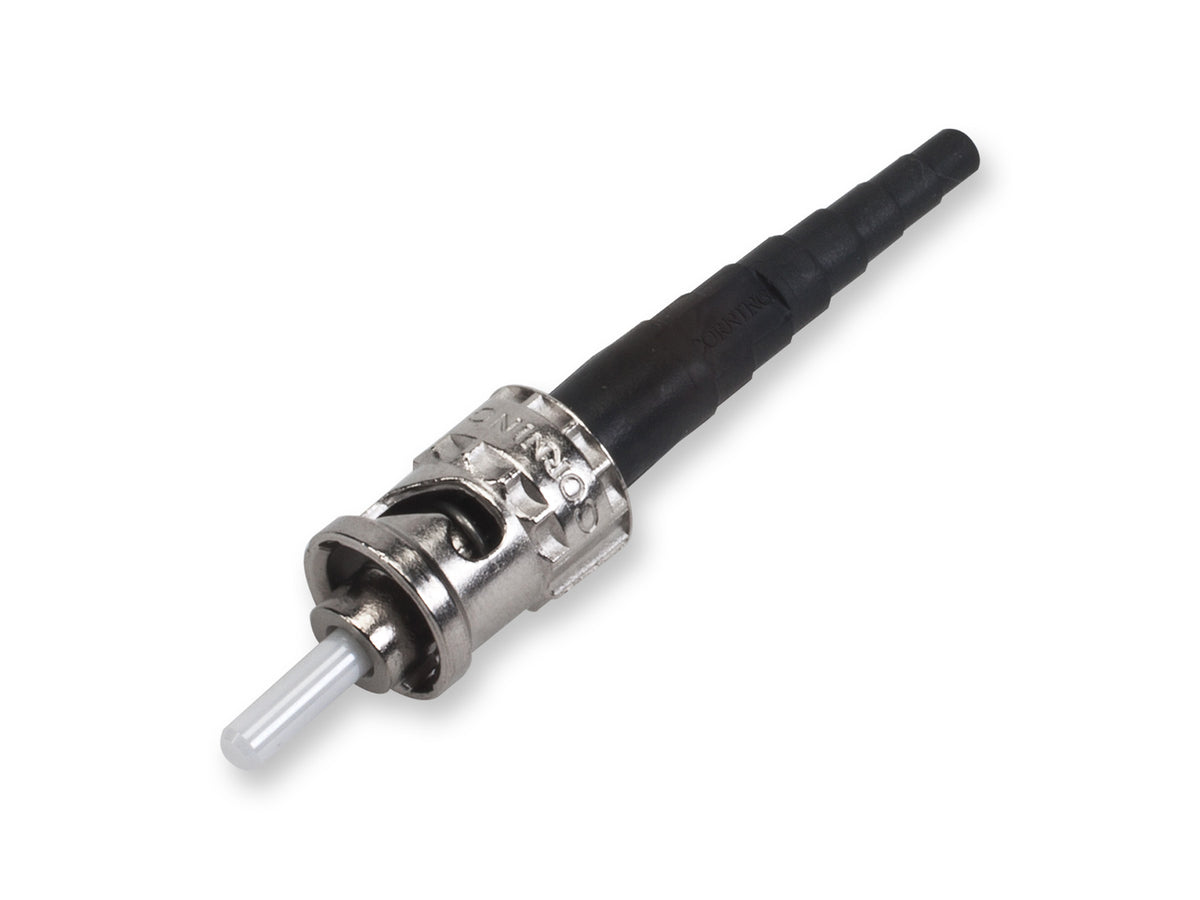

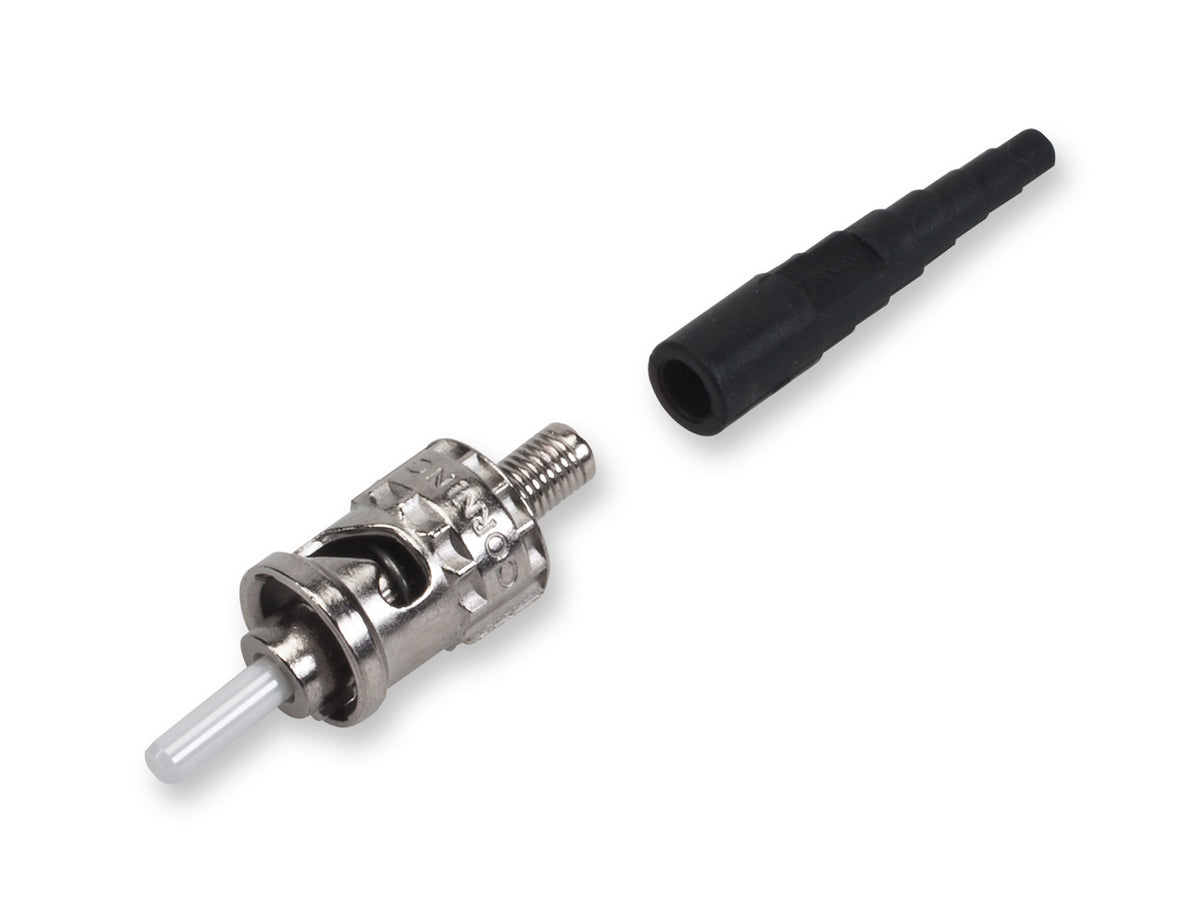

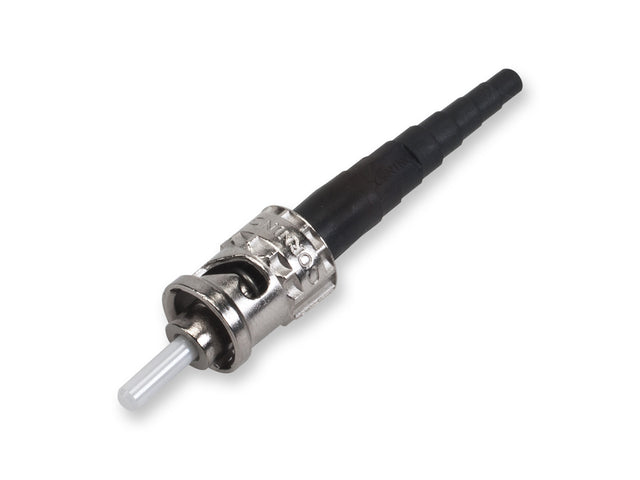

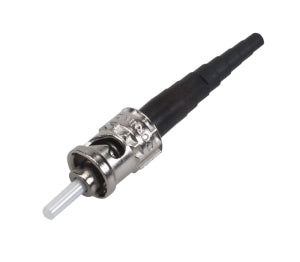

Corning 95-051-52-SP | Anaerobic Connector, ST compatible
Regular price
$12.04
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-051-52-SP | Anaerobic Connector, ST compatible
Regular price
$12.04
Unit price
Description
Description
Corning 95-051-52-SP | Anaerobic Connector, ST compatible 50 µm multimode (OM2)
Corning - 95-051-52-SP - Features
- Quick-cure epoxy
- No lamps or ovens needed
- Minimal tools and no index-matching gel
- Low installation cost
- Hand polished for minimum insertion loss
- Reliability and optical performance
Specifications
Specifications
Corning - 95-051-52-SP - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Connectivity
- Connectors
Corning - 95-051-52-SP - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-051-52-SP |
| EAN Code | 4056418200651 |
| Fiber Category | 50 µm MM (OM2) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | Field Polish (anaerobic) |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Cycling Standard | ? 0.3 dB IL, -40° to +75°C, 21 cycles |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | ST compatible |
| Housing Color | Metal |
| Boot Color | Black |
| Ferrule Material | Ceramic |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.75 dB |
| Reflectance | ? -26 dB |
| Insertion Loss, Typical | ? 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Package Contents | Connector, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm) |
| Units per Delivery | 1/1" |
| Connector Type | ST Field Installable Connector |
| Fiber Type | Multimode 50um |
| Ferrule | Ceramic |
| Installation | Anaerobic Adhesive, Epoxy |
| Color | Metal Housing, Black Boot |
