Brand: Corning
|
SKU:
398304

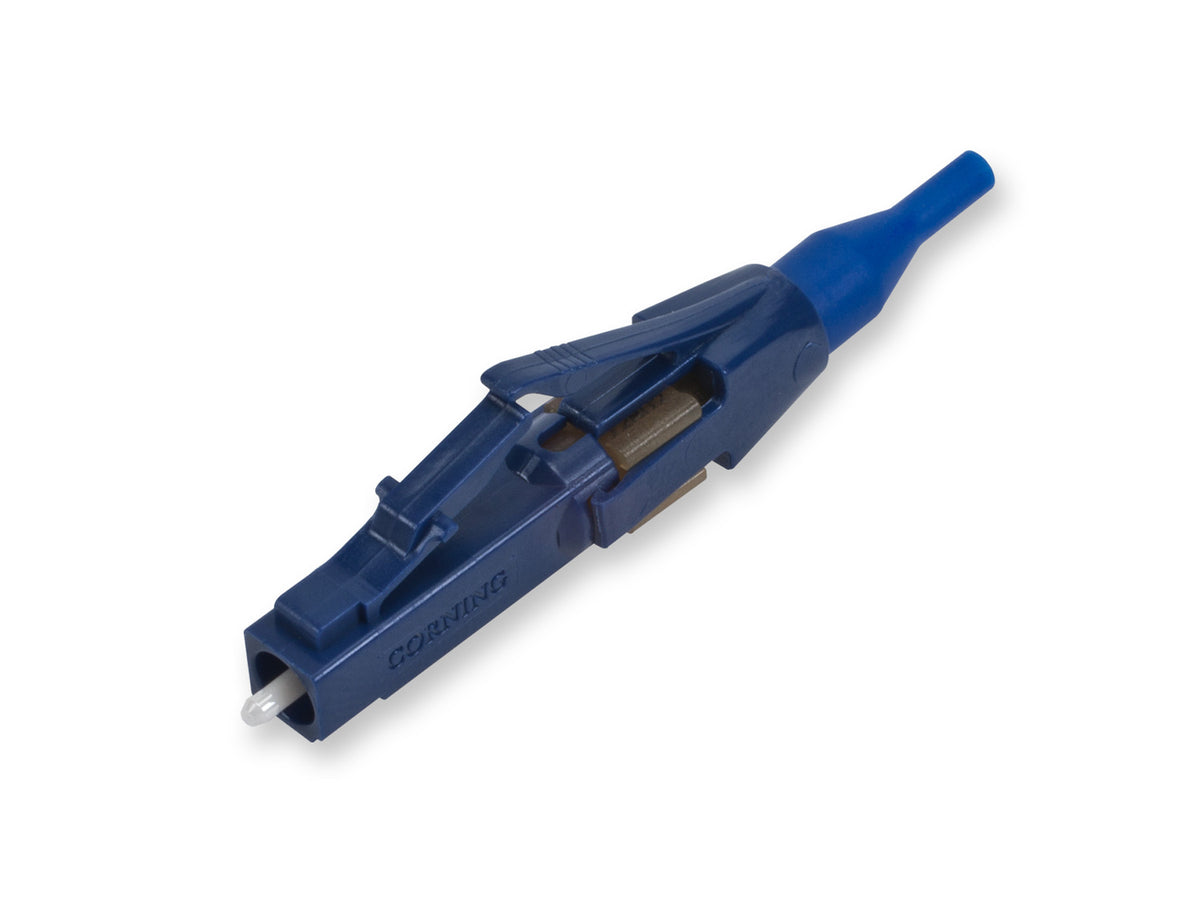

Corning 95-05X-KN | UniCam Secure Keyed LC Connector, 50 µm multimode (OM3/OM4/OM4 extended 10G distance)
Regular price
$24.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-05X-KN | UniCam Secure Keyed LC Connector, 50 µm multimo...
Regular price
$24.85
Unit price
Description
Description
Corning 95-05X-KN | UniCam Secure Keyed LC Connector, 50 µm multimode (OM3/OM4/OM4 extended 10G distance) Blue
Corning - 95-05X-KN - Features
- Keyed connector solution
- Front and rear security in network panel
- Eight color-coded mechanical key positions
- Prevents mismatch of networks
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance
- Keyed connector solution - Front and rear security in network panel
- Eight color-coded mechanical key positions - Prevents mismatch of networks
- Broad operating temperature range (-40? to +75?) - Utility and flexibility
- Factory-polished end face - Consistent optical performance
- Fast termination and no consumables - Low installation cost
- Minimum insertion loss - Optimum optical performance
Specifications
Specifications
Corning - 95-05X-KN - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- DataComm
- Fiber Optic Connectivity
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - 95-05X-KN - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-05X-KN |
| EAN Code | 4056418200156 |
| Fiber Category | 50 µm MM (OM3/OM4/OM4+) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Blue |
| Boot Color | Blue |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 50 N (11.24 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change ? 0.2 dB, FOTP-6 |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.75 dB |
| Insertion Loss, Typical | 0.3 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Package Contents | Keyed connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm) |
| Units per Delivery | 1/1" |
