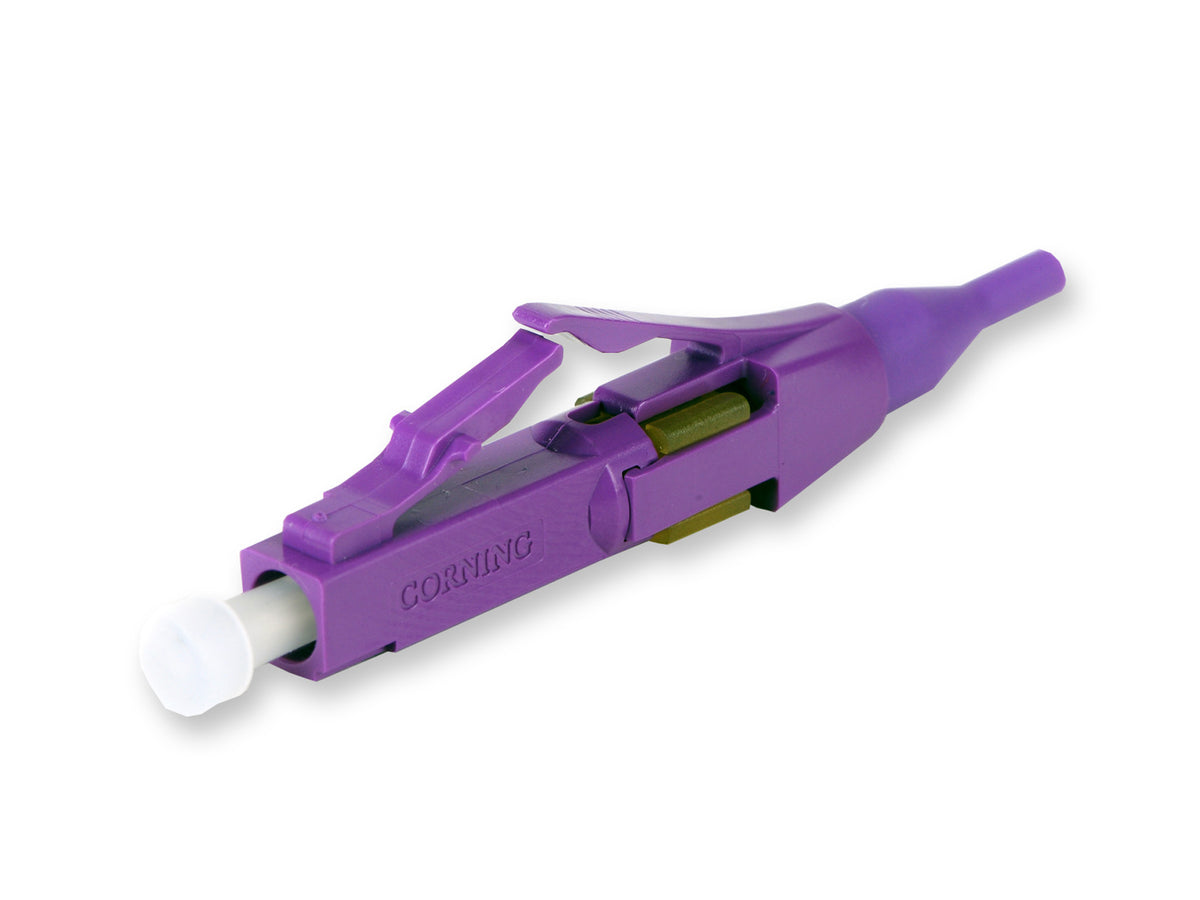

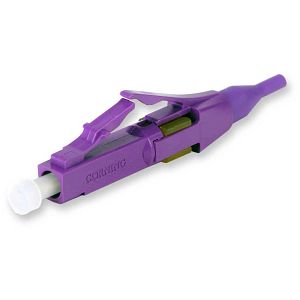

Corning 95-05X-KV | UniCam Secure Keyed LC Connector, 50 µm multimode (OM3/OM4/OM4 extended 10G distance)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-05X-KV | UniCam Secure Keyed LC Connector, 50 µm multimo...
Description
Description
Corning secure keyed LC connector solution offers mechanical network security for organizations desiring to segregate networks due to privacy or security concerns. Utilizing the LC small-form-factor (SFF) format for optical fiber cabling, the keyed LC solution provides physical separation for up to eight networks, applications, or organizations. Eight color-coded key combinations prevent inadvertent or unauthorized access to networks and provide fast and easy network identification. Keyed connectors on the front and back of the patch panel area are used to match access rights to the proper network. The keyed features cannot be duplicated with standard LC components, thereby preventing violation of network security.
Corning - 95-05X-KV - Features
- Keyed connector solution
- Front and rear security in network panel

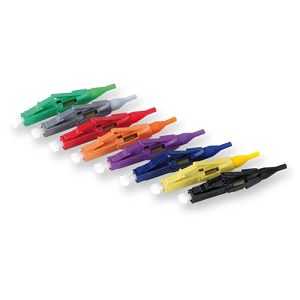

- Eight color-coded mechanical key positions
- Prevents mismatch of networks
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance
- Keyed connector solution
- Front and rear security in network panel Eight color-coded mechanical key positions
- Prevents mismatch of networks Broad operating temperature range (-40;C to +75;C)
- Utility and flexibility Factory-polished end face
- Consiste optical performance Fast termination and no consumables
- Low installation cost Minimum insertion loss
- Optimum optical performance
Specifications
Specifications
Corning - 95-05X-KV - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - 95-05X-KV - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-05X-KV |
| EAN Code | 4056418169965 |
| Fiber Category | 50 µm MM (OM3/OM4/OM4+) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Violet |
| Boot Color | Violet |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 50 N (11.24 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change ? 0.2 dB, FOTP-6 |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.75 dB |
| Insertion Loss, Typical | 0.3 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Package Contents | Keyed connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm) |
| Units per Delivery | 1/1" |
