Brand: Corning
|
SKU:
526989
Corning 95-05X-KY-Z | UniCam Secure Keyed LC Connector, 50 µm multimode (OM3/OM4/OM4 extended 10G distance)
Regular price
$539.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-05X-KY-Z | UniCam Secure Keyed LC Connector, 50 µm multi...
Regular price
$539.66
Unit price
Description
Description

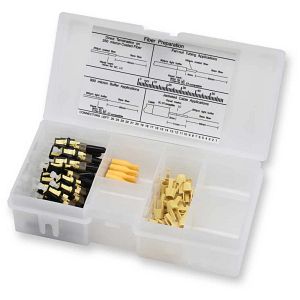

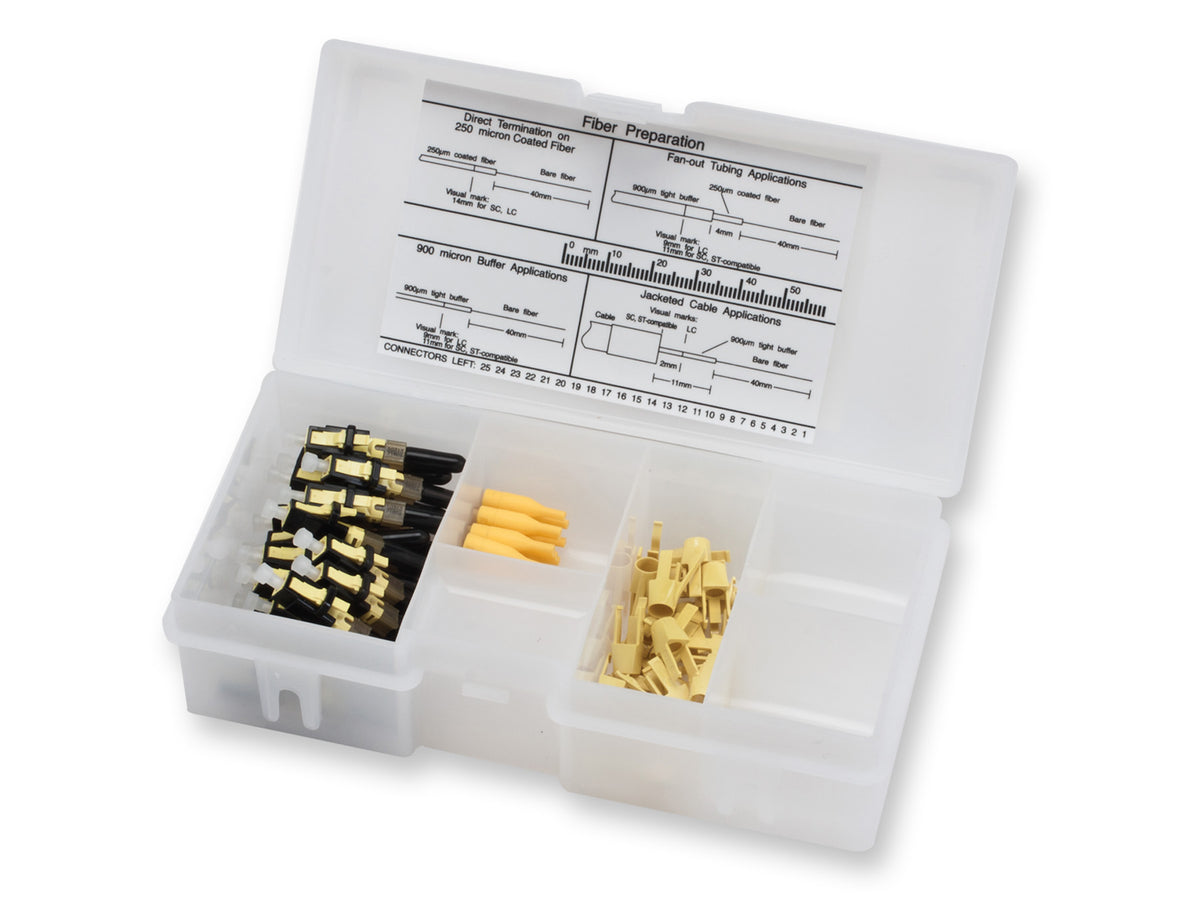

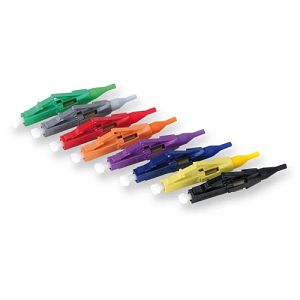

Corning 95-05X-KY-Z | UniCam Secure Keyed LC Connector, 50 µm multimode (OM3/OM4/OM4 extended 10G distance) Yellow
Corning - 95-05X-KY-Z - Features
- Keyed connector solution
- Front and rear security in network panel
- Eight color-coded mechanical key positions
- Prevents mismatch of networks
- Broad operating temperature range (-40°C to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance
- Keyed connector solution
- Front and rear security in network panel Eight color-coded mechanical key positions
- Prevents mismatch of networks Broad operating temperature range (-40;C to +75;C)
- Utility and flexibility Factory-polished end face
- Consiste optical performance Fast termination and no consumables
- Low installation cost Minimum insertion loss
- Optimum optical performance
Specifications
Specifications
Corning - 95-05X-KY-Z - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - 95-05X-KY-Z - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-05X-KY-Z |
| EAN Code | 4056418182780 |
| Fiber Category | 50 µm MM (OM3/OM4/OM4+) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to -40 °C (-40 °F to -40 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Yellow |
| Boot Color | Yellow |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 50 N (11.24 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change ? 0.2 dB, FOTP-6 |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.5 dB |
| Insertion Loss, Typical | ? 0.4 dB |
| Ordering Information | - |
| Packaging | Organizer Pack |
| Package Contents | 25 keyed connectors, 25 triggers, 25 boots (900 µm) |
| Units per Delivery | 25/1" |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| Color Family | Yellow |
| Packaging | 25 per Package |
| Accessory Type | Mechanical Connector |
| Material | Ceramic |
| Product Includes | 25 Boots (900 ?), 25 Keyed Connectors, 25 Triggers |
| Type | Field-Installable |
| Color | Yellow |
| Fiber Adapter Type | LC |
| Fiber Diameter | 125 ? |
| Technology | No-Epoxy/No-Polish |
| Connector Type | LC |
| Fiber Category | Multimode - OM3/OM4 |
