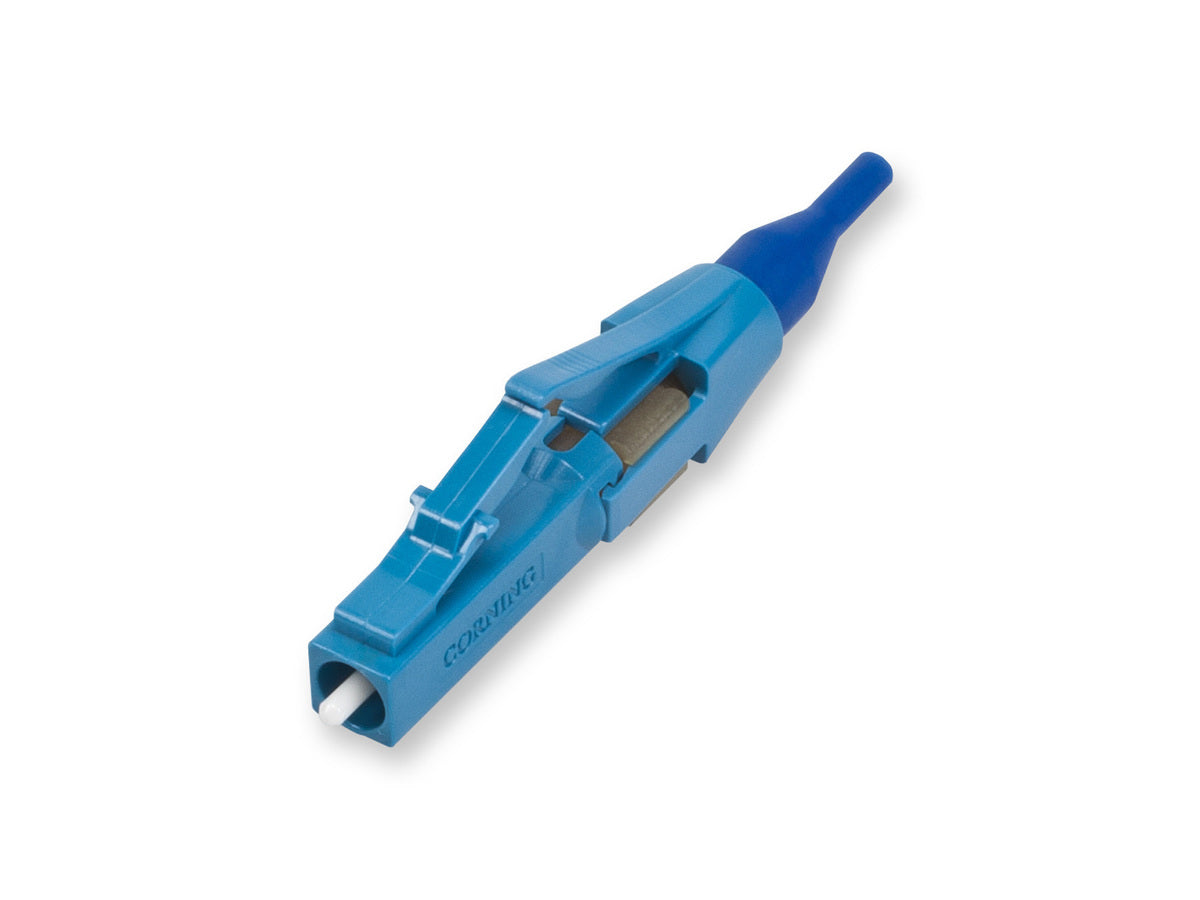

Corning 95-200-99 | Connector, LC Single-mode (OS2)
Regular price
$24.29
Unit price
Brand: Corning
|
SKU:
338908-SEL
Regular price
$24.29
Unit price
Description
Description
Corning 95-200-99 | UniCam Connector, LC Single-mode
Corning - 95-200-99 - Features
- 100 percent yield guarantee
- Utility and flexibility
- Consistent optical performance
- Low installation cost
- Optimum optical performance
Specifications
Specifications
Corning - 95-200-99 - Specifications
| Product Number | 95-200-99 |
|---|---|
| EAN Code | 4042673619437 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | No |
| Technology | No-Epoxy/No-Polish |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Connector Type | LC |
| Housing Color | Blue |
| Boot Color | Blue |
| Ferrule Material | Ceramic |
| Pinned | No |
| Nominal Fiber Outer Diameter | 125 µm |
| Tensile Strength Jacketed Cable | 44 N (9.89 lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 4.9 N (1.1 lb) change ? 0.2 dB, FOTP-6 |
| Polish | UPC |
| Insertion Loss, Max. | 0.5 dB |
| Reflectance | < -55 dB |
| Insertion Loss, Typical | 0.2 dB |
| Package Contents | Connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm) |
| Packaging Method | Individual Pack |
