Brand: Corning
|
SKU:
10229283

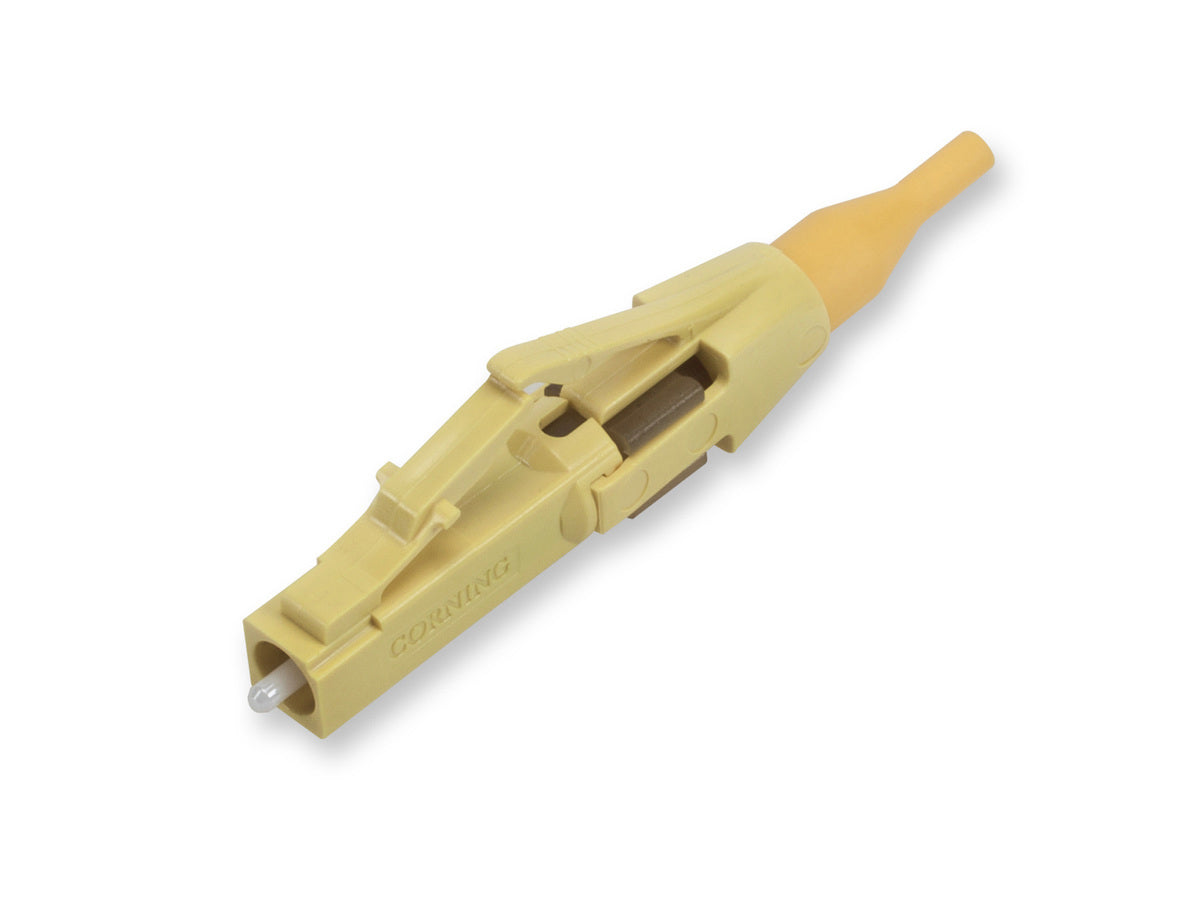

Corning 95-200-KY | UniCam Secure Keyed LC Connector, Single-mode (OS2) Yellow
Regular price
$25.85
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-200-KY | UniCam Secure Keyed LC Connector, Single-mode (...
Regular price
$25.85
Unit price
Description
Description
Corning 95-200-KY | UniCam Secure Keyed LC Connector, Single-mode (OS2) Yellow
Specifications
Specifications
Corning - 95-200-KY - Product Categories
- Fiber Optic Connectivity
- Connectors
- Field Installable
Corning - 95-200-KY - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | 95-200-KY |
| Item Description | UniCam Secure Keyed LC Connector, Single-mode (OS2) Yellow |
| General Specifications | - |
| Product Number | 95-200-KY |
| EAN Code | 4056418199740 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | No-Epoxy/No-Polish |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Passed EIA/TIA 568-B.3 |
| Environmental Conditions | - |
| Temperature Range, Operation | -40°C to 75°C (-40°F to 167°F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Yellow |
| Boot Color | Yellow |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Nominal Fiber Outer Diameter | 125µm |
| Tensile Strength Jacketed Cable | 44N (9.89lbf) |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength 900 µm Cable | 2.2 N (0.5 lb) change ? 0.2 dB, FOTP-6 |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.5dB |
| Reflectance | < -55 dB |
| Insertion Loss, Typical | ? 0.4 dB |
| Ordering Information | - |
| Package Contents | "Keyed connector, trigger, crimp band, boot (900 µm), boot (3.0 mm), boot (2.0 mm)" |
| Packaging Method | Individual Pack |
| Units per Delivery | 1/1 |
