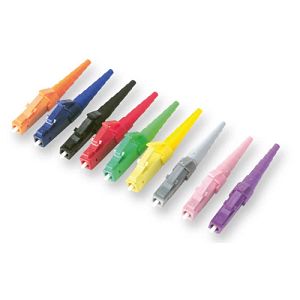

Corning 95-201-98-SP-KN | Anaerobic Connector, Keyed LC, Single-mode (OS2)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning 95-201-98-SP-KN | Anaerobic Connector, Keyed LC, Single-mod...
Description
Description
Corning anaerobic-cured keyed connectors offer optical performance in a fast, easy field-termination solution designed for fiber-to-the-workstation applications for single-mode and multimode connections. This connector combines the quick-cure convenience of anaerobic adhesive with the performance of epoxy-and-polish connectors. Ideal for enterprise networks and any installations requiring field-installed connectors, the anaerobic-cure technology enables fiber optic networks to be installed cost effectively with minimal tools. Installation of the connector can be accomplished in minutes with the anaerobic adhesive two-part epoxy process. The adhesive is first injected into the connector ferrule and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand-polish process, an average insertion loss of 0.2 dB is achieved.
Corning - 95-201-98-SP-KN - Features
- Quick-cure epoxy
- No lamps or ovens needed
- Minimal tools and no index-matching gel
- Low installation cost
- Hand polished for minimum insertion loss
- Reliability and optical performance

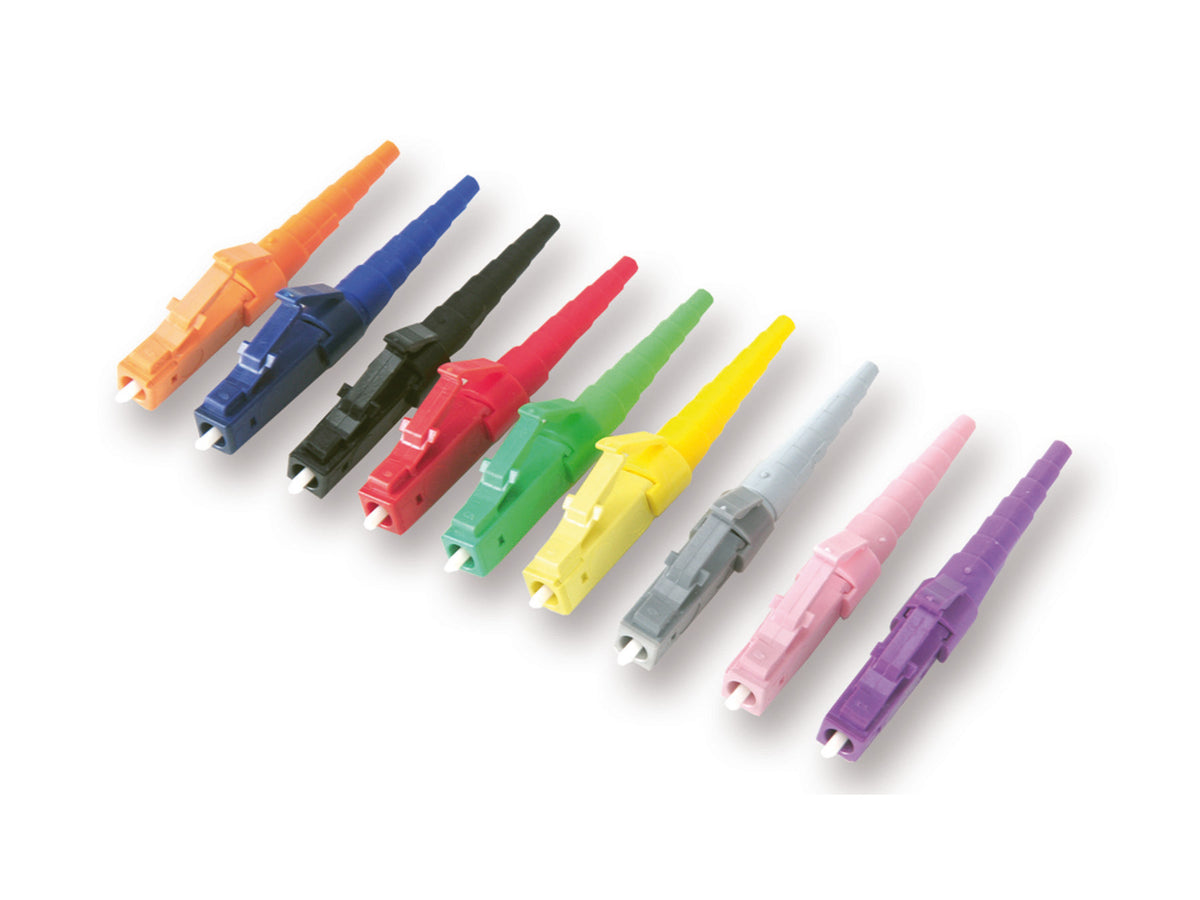

- Twelve color-coded mechanical key positions
- Prevents mismatch of networks
- Keyed connector solution
- Front and rear security in network panel
- Quick-cure epoxy
- No lamps or ovens needed Minimal tools and no index-matching gel
- Low installation cost Hand polished for minimum insertion loss
- Reliability and optical performance Twelve color-coded mechanical key positions
- Prevents mismatch of netwks Keyed connector solution
- Front and rear security in network panel
Specifications
Specifications
Corning - 95-201-98-SP-KN - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - 95-201-98-SP-KN - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-201-98-SP-KN |
| EAN Code | 4056418169002 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | Field Polish (anaerobic) |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Cycling Standard | ? 0.3 dB IL, -40° to +75°C, 21 cycles |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Blue |
| Boot Color | Blue |
| Ferrule Material | Ceramic |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.75 dB |
| Reflectance | ? -40 dB |
| Insertion Loss, Typical | ? 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Package Contents | Keyed Connector, Trigger, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm) |
| Units per Delivery | 1/1" |
