Corning 95-201-98-SP-KR | Anaerobic Connector, Keyed LC, Single-mod...
Regular price
$18.18
Unit price
Brand: Corning
|
SKU:
670356
Regular price
$18.18
Unit price
Description
Description

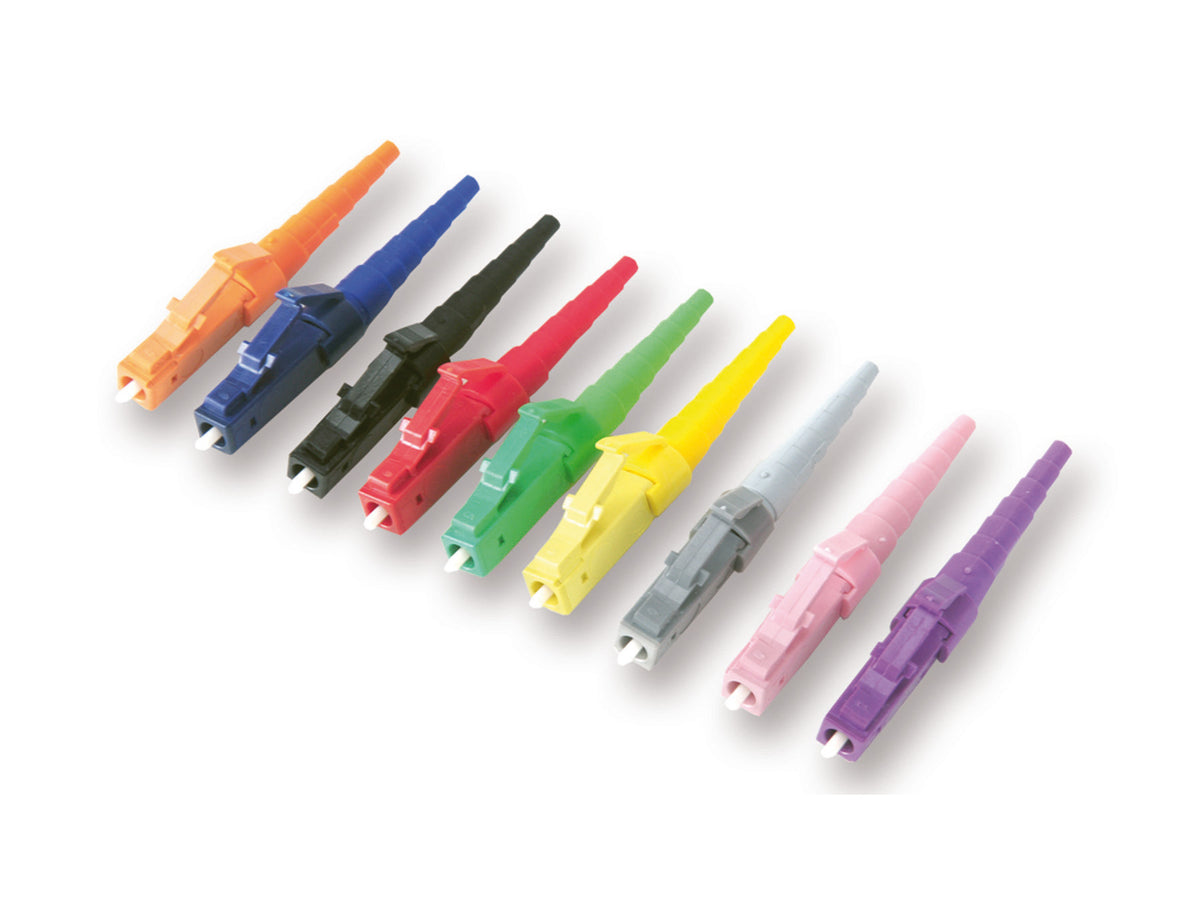

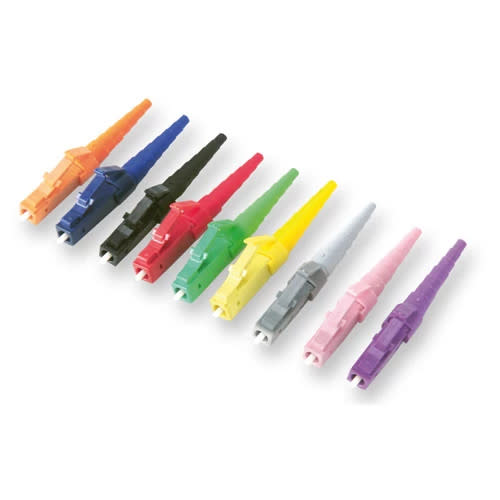

Corning 95-201-98-SP-KR | Anaerobic Connector, Keyed LC, Single-mode (OS2) Red
Corning - 95-201-98-SP-KR - Features
- Quick-cure epoxy
- No lamps or ovens needed
- Minimal tools and no index-matching gel
- Low installation cost
- Hand polished for minimum insertion loss
- Reliability and optical performance
- Twelve color-coded mechanical key positions
- Prevents mismatch of networks
- Keyed connector solution
- Front and rear security in network panel
Specifications
Specifications
Corning - 95-201-98-SP-KR - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Connectivity
- Connectors
Corning - 95-201-98-SP-KR - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-201-98-SP-KR |
| EAN Code | 4056418187976 |
| Fiber Category | Single-mode (OS2) |
| Product Type | Field-Installable Connectors |
| Corning Logo | Yes |
| Keyed (security) | Yes |
| Technology | Field Polish (anaerobic) |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Cycling Standard | ? 0.3 dB IL, -40° to +75°C, 21 cycles |
| Temperature Range, Operation | -40 °C to 75 °C (-40 °F to 167 °F ) |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Red |
| Boot Color | Red |
| Ferrule Material | Ceramic |
| Optical Specifications - Connector | - |
| Insertion Loss, Max. | 0.75 dB |
| Reflectance | ? -40 dB |
| Insertion Loss, Typical | ? 0.1 dB |
| Ordering Information | - |
| Packaging | Individual Pack |
| Package Contents | Keyed Connector, Trigger, Crimp Band (1.6/2.0 mm), Crimp Band (3.0 mm), Boot (900 µm), Boot (2.0 mm), Boot (3.0 mm) |
| Units per Delivery | 1/1" |
| Connector Type | LC Field Installable Connector |
| Fiber Type | Singlemode |
| Ferrule | Ceramic |
| Installation | Anaerobic Adhesive, Epoxy |
| Color | Red Housing, Red Boot |
