Corning 95-212-LC-BP | Heat-Cure Connector, LC
Regular price
$1,261.95
Unit price
Brand: Corning
|
SKU:
608385
Regular price
$1,261.95
Unit price
Description
Description

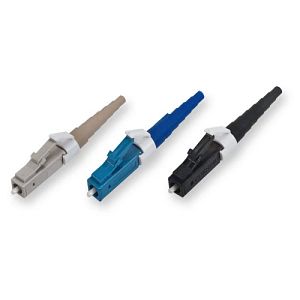

Corning 95-212-LC-BP | Heat-Cure Connector, LC Single-mode (OS2), angled, bulk pack, green housing
Standards RoHS: Free of hazardous substances according to RoHS 2011/65/EU
Corning - 95-212-LC-BP - Features
- Ships preassembled from the factory
- Reduces installation time
- Zirconia ceramic ferrules with preradiused end faces
- Allow for physical contact polishing for APC
- Available with tuned ferrules
- Maximum performance
Specifications
Specifications
Corning - 95-212-LC-BP - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Connectors
- Fiber Optic Connectivity
- Connectors
Corning - 95-212-LC-BP - Specifications
| General Specifications | - |
|---|---|
| Product Number | 95-212-LC-BP |
| Fiber Category | Single-mode (OS2) |
| Product Type | Heat Cure Epoxy and Polish Connectors |
| Keyed (security) | No |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design - Connector | - |
| Connector Type | LC |
| Housing Color | Green |
| Housing Material | Thermoplastic |
| Ferrule Material | Ceramic |
| Design - Connector A | - |
| Housing Color | Green |
| Ferrule Material | Ceramic |
| Mechanical Specifications - Connector | - |
| Durability | ? 0.2 dB change, 500 rematings, FOTP-21 |
| Tensile Strength | ? 0.2 dB change, 15 lb. FOTP-6 |
| Optical Specifications - Connector | - |
| Polish | APC |
| Reflectance | < -65 dB |
| Insertion Loss, Typical | 0.2 dB |
| Ordering Information | - |
| Packaging | Bulk Pack |
| Package Contents | 100 connectors, LC |
| Units per Delivery | 100/1 |
| Color | Green |
| Technology | Epoxy |
| Connector Type | LC |
