Brand: Corning
|
SKU:
180626-TMOB

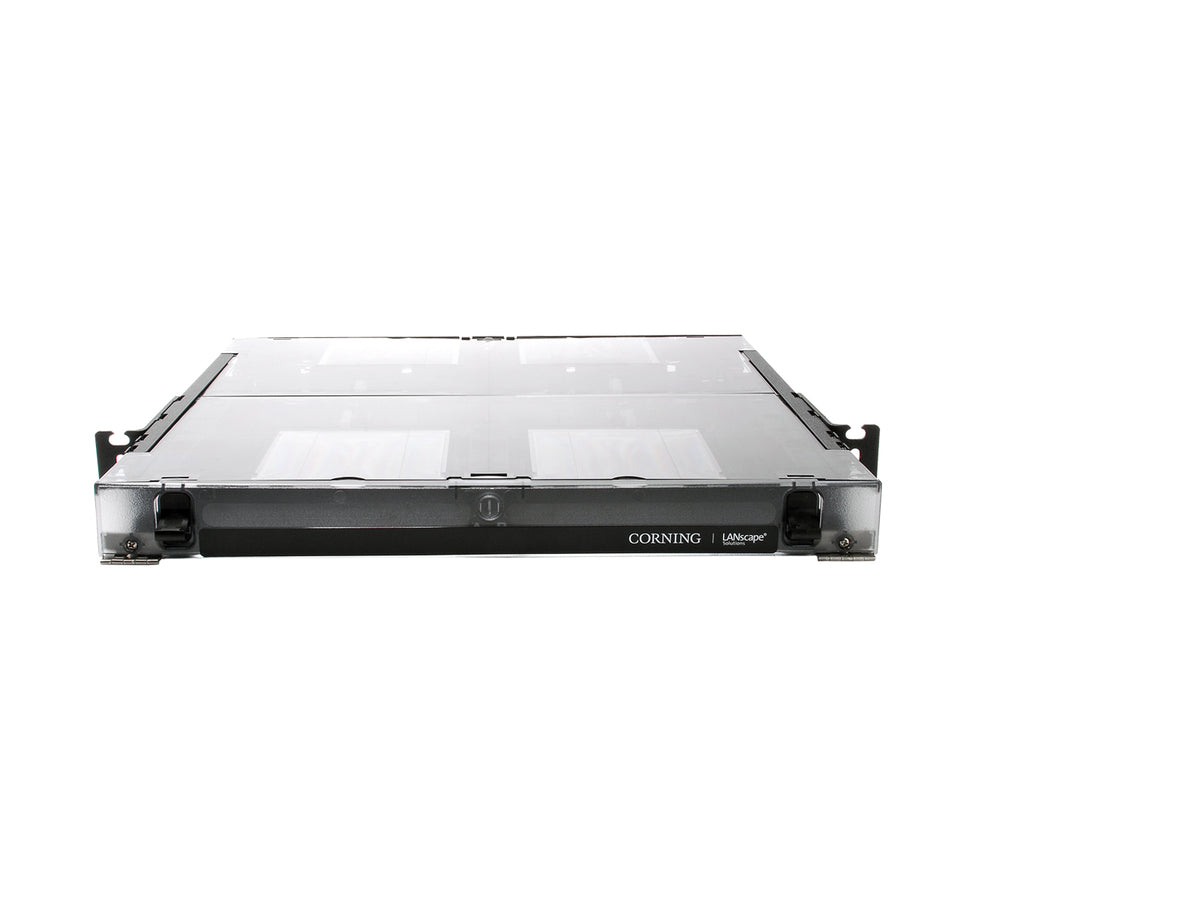

Corning CCH-01U | Closet Connector Housing (CCH) One rack unit, holds two CCH connector panels
Regular price
$340.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning CCH-01U | Closet Connector Housing (CCH) One rack unit, ho...
Regular price
$340.17
Unit price
Description
Description
Corning CCH-01U | Closet Connector Housing (CCH) One rack unit, holds two CCH connector panels
Specifications
Specifications
Corning - CCH-01U - Product Categories
- Fiber Optic Hardware
- Housings
Corning - CCH-01U - Specifications
| Brand Name | Corning |
|---|---|
| Manufacturer Part Number | CCH-01U |
| Item Description | Closet Connector Housing (CCH) One rack unit, holds two CCH connector panels |
| General Specifications | - |
| Product Number | CCH-01U |
| EAN Code | 4056418169491 |
| Product Type | Fiber Optic Hardware |
| Environment | Indoor |
| Access Type | Front and rear access slidable |
| Lockable | Yes |
| Mounting Type | Rack 19-in, Rack 23-in, Cabinet-mount |
| Application | Carrier Networks, Data Center, Enterprise Networks |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-63-CORE, UL1863 - Communication Circuit Accessories |
| UL-Listed | United States and Canadian safety standards |
| Environmental Conditions | - |
| Temperature Range, Operation | -40°C to 70°C (-40°F to 158°F ) |
| Design | - |
| Fiber Count | 48 |
| Housing Material | Powder-coated metal and polycarbonate tray |
| Number of Modules | 2 |
| Cable entry type | External and Internal strain-relief bracket |
| Number of Panels/Cassettes per Housing | 2 |
| Pigtail Length | 2.25m (7.38ft) |
| Housing Type | CCH |
| Locking Availability | Front or rear |
| Panel or Cassette Type | CCH |
| Panel or Module Type | CCH |
| Splice Tray Options | CCH Pigtailed Splice Cassette (CCH-CS) |
| Number of Ports | 24 |
| Dimensions | - |
| Height | 44mm (1.73in) |
| Depth | 430mm (16.93in) |
| Weight | 3.9kg |
| Shipping Dimensions | - |
| Height | 5461cm |
| Width | 57.15mm (2.25in) |
| Depth | 1905cm |
| Ordering Information | - |
| Weight | 3.9kg |
| Package Contents | "Closet Connector Housing 1U, 2 blank panels, Installation kit with mouting screws, Internal and external strain relief brackets, Label Cards" |
| Shipping Weight | 4.5kg |
| Width | 483mm (19.02in) |
| Height Unit | 1 U |
| Units per Delivery | 1/1 |
| Shipping Height | 5461cm |
| Shipping Width | 57.15mm (2.25in) |
| Shipping Depth | 1905cm |
