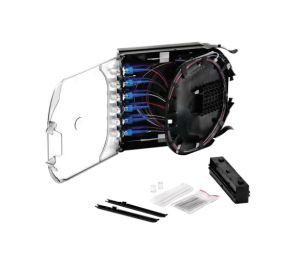

Corning CCH-CS12-91-P00KE | Splice Cassette, SC Duplex, 12 Fiber, Composite Connector

CCH pigtailed splice cassettes enable faster field splicing and easy modular management of connectorization within the housing. The CCH pigtailed splice cassettes are preloaded and pre-routed for quick fusion splicing of either individual or ribbon fiber pigtails, using the same space-saving platform as the standard CCH splice cassette. Pre-routed pigtailed cassettes reduce field labor by streamlining the features and components of the pigtail cassette to allow for efficiencies in the field. They are loaded with a pigtail assembly and a CCH connector panel. The pigtails, with 900 um protection at the connector panel for added durability, are routed into the splice tray layer where they transition to either 250 um fiber or bare ribbon (depending on the splicing method desired) for ease of splicing. The pigtailed cassette eliminates the need for individual splice trays or separate splice housings as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The modular design makes it easy to access the fiber in an individual cassette without disturbing other fibers in the housing.
