Corning CCH-CS12-A9-P00RE | CCH Pigtailed Splice Cassette
Regular price
$575.96
Unit price
Brand: Corning
|
SKU:
474222
Regular price
$575.96
Unit price
Description
Description

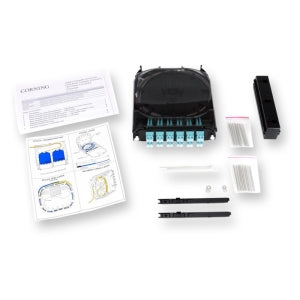

Corning CCH-CS12-A9-P00RE | CCH Pigtailed Splice Cassette 12 F, LC UPC duplex, Single-mode (OS2), single-fiber (250 µm)
Corning - CCH-CS12-A9-P00RE - Features
- Manage cable slack for a CCH panel in a modular footprint
- Fast, easy and reliable initial routing, and quick, simple reaccess for moves, adds and changes (MACs)
- Includes everything needed to convert a CCH housing for modular routing and/or splicing
- Easy ordering and field installation
- Modular splice capability
- Manage all splices inside the housing
- Colored 250 µm at splice point
- Easy to identify and prep colored 250 µm for fast and easy splicing
- Pre-prepped splice cassette
- Saves time in the field with a ready to splice product
- Broad operating temperature range (-40°C to +65°C)
- Utility and flexibility
Specifications
Specifications
Corning - CCH-CS12-A9-P00RE - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - CCH-CS12-A9-P00RE - Specifications
| General Specifications | - |
|---|---|
| Product Number | CCH-CS12-A9-P00RE |
| EAN Code | 4056418151991 |
| Product Type | Rack-Mountable Hardware |
| Fiber Category | Single-mode (OS2) |
| Cable Type | 250 µm |
| Technology | Fusion Splice |
| Mounting Type | Wall-Mountable, CCH Housings |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | Meets ANSI/TIA/EIA-568A and 606, Tested in accordance with Telecordia GR-3125, UL1863 - Communication Circuit Accessories |
| Environmental Conditions | - |
| Temperature Range, Operation | -40 °C to 65 °C (-40 °F to 149 °F ) |
| Design | - |
| Fiber Count | 12 |
| Connector Configuration | LC Duplex |
| Panel or Module Type | CCH |
| Splice Protectors Type | Heat Shrink, single fiber |
| Number of Splice Protectors | 12 |
| Cable Design | - |
| Fiber Count | 12 |
| Connector Specs | - |
| Polish | UPC |
| Dimensions | - |
| Height | 35 mm (1.38 in) |
| Ordering Information | - |
| Width | 162 mm (6.38 in) |
| Depth | 200 mm (7.87 in) |
| Units per Delivery | 1/1" |
| Type | Pigtailed Splice Cassette |
| Capacity - Fiber | 12 |
| Size HxWxD Imperial | 6.40 x 1.40 x 7.90 in |
| Size HxWxD Metric | 162.0 x 35.0 x 200.0 mm |
