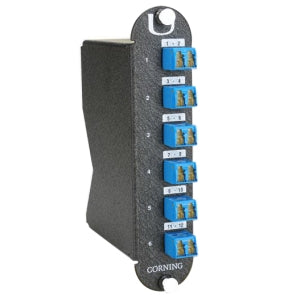

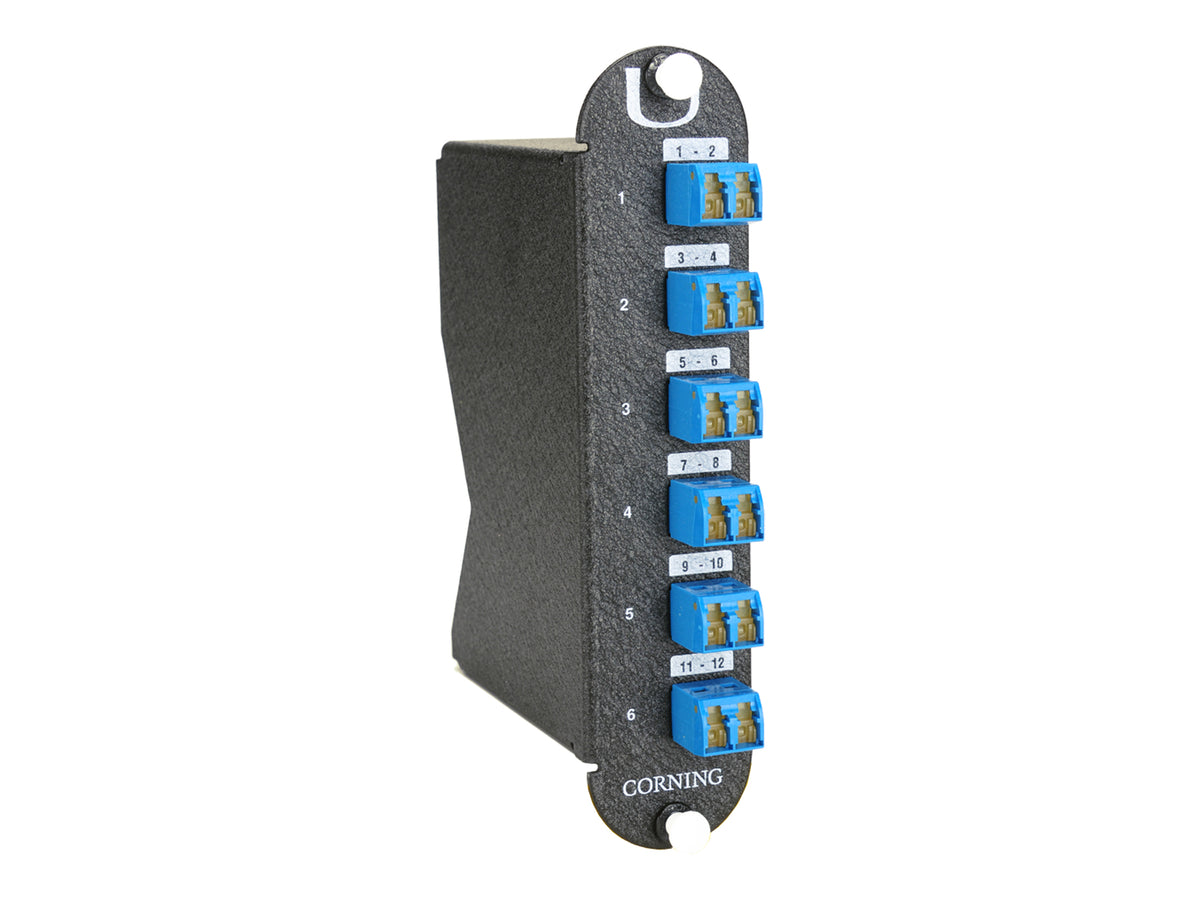

Corning CCH-UM12-04-89G | Plug & Play Universal Module
Regular price
$528.77
Unit price
Brand: Corning
|
SKU:
401472
Regular price
$528.77
Unit price
Description
Description
Corning CCH-UM12-04-89G | Plug & Play Universal Module 12 F, Shuttered LC to MTP, Single-mode (OS2)
Corning - CCH-UM12-04-89G - Features
- Connector modules
- Allow for fibre modularity while offering both front and rear loading capability
- Shuttered modules
- Create one-hand operation while eliminating need to keep up with dust caps
- Universal wired components
- Enable moves, adds and changes without polarity concerns
- Standard and low-loss components
- Provide means of meeting increasingly stringent network performance requirements
Specifications
Specifications
Corning - CCH-UM12-04-89G - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panel Connector Adapters, Loaded
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - CCH-UM12-04-89G - Specifications
| General Specifications | - |
|---|---|
| Product Number | CCH-UM12-04-89G |
| EAN Code | 4042673188575 |
| Product Type | Panels and Modules |
| Fiber Category | Single-mode (OS2) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Black |
| Adapter Color Front | Blue |
| Adapter Type Front | Shuttered LC |
| Housing Type | CCH |
| Number of Adapters per Panel | 6 |
| Cable Design | - |
| Fiber Count | 12 |
| Polarity | Universal |
| Optical Specification - Hardware | - |
| Insertion Loss | 1.25 dB |
| Fiber Category | Single-mode (OS2) |
| Ordering Information | - |
| Weight | 1 kg |
| Fiber Count | 12 |
| Adapter Type | Connector Module |
| Side A | LC |
| Side B | MTP |
| Fiber Type | Singlemode |
| Mounting | Patch Panel |
| Color | Black Panel/Blue Adapter |
