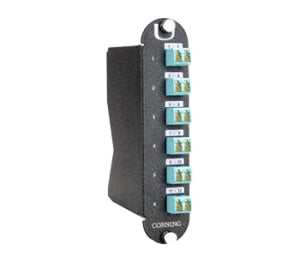

Corning CCH-UM24-05-70K | Plug & Play Universal Module
Regular price
$1,027.32
Unit price
Brand: Corning
|
SKU:
312852
Regular price
$1,027.32
Unit price
Description
Description

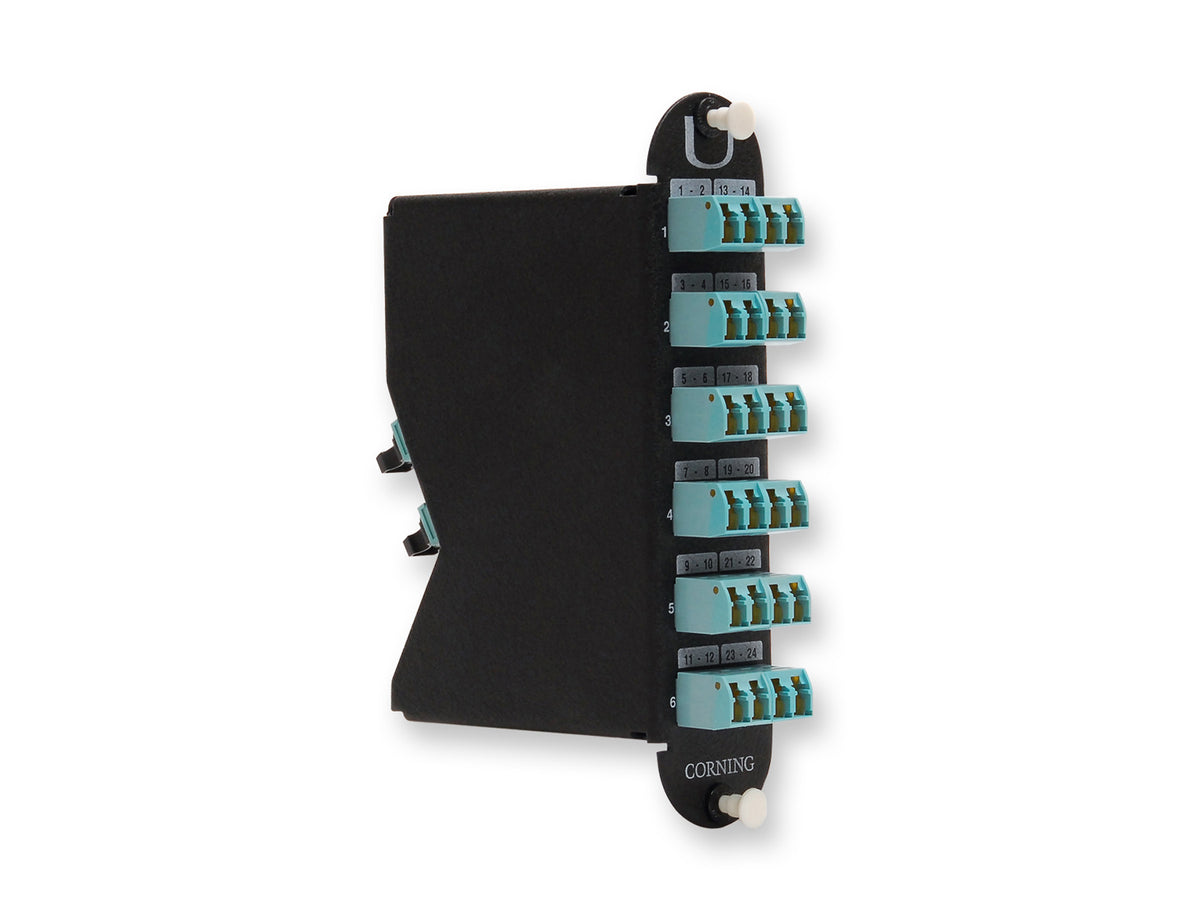

Corning CCH-UM24-05-70K | Plug & Play Universal Module 24 F, Shuttered LC to MTP, 62.5 µm multimode (OM1)
Corning - CCH-UM24-05-70K - Features
- Connector modules
- Allow for fibre modularity while offering both front and rear loading capability
- Shuttered modules
- Create one-hand operation while eliminating need to keep up with dust caps
- Universal wired components
- Enable moves, adds and changes without polarity concerns
- Standard and low-loss components
- Provide means of meeting increasingly stringent network performance requirements
Specifications
Specifications
Corning - CCH-UM24-05-70K - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panel Connector Adapters, Loaded
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - CCH-UM24-05-70K - Specifications
| General Specifications | - |
|---|---|
| Product Number | CCH-UM24-05-70K |
| Product Type | Panels and Modules |
| Fiber Category | 62.5 µm MM (OM1) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 24 |
| Adapter Type Back | MTP |
| Adapter Color Back | Black |
| Adapter Color Front | Beige |
| Adapter Type Front | Shuttered LC |
| Housing Type | CCH |
| Number of Adapters per Panel | 12 |
| Cable Design | - |
| Fiber Count | 24 |
| Optical Specification - Hardware | - |
| Insertion Loss | 0.75 dB |
| Fiber Category | 62.5 µm MM (OM1) |
| Ordering Information | - |
| Weight | 1 kg |
| Fiber Count | 24 |
| Adapter Type | Universal Connector Module |
| Side A | LC Duplex |
| Side B | MTP |
| Fiber Type | Multimode OM1/OM3/OM4-62.5 |
| Color | Beige, Black |
