Corning CSH-05U | Closet Splice Housing (CSH)
Regular price
$514.25
Unit price
Brand: Corning
|
SKU:
180641
Regular price
$514.25
Unit price
Description
Description

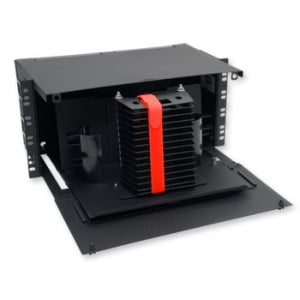

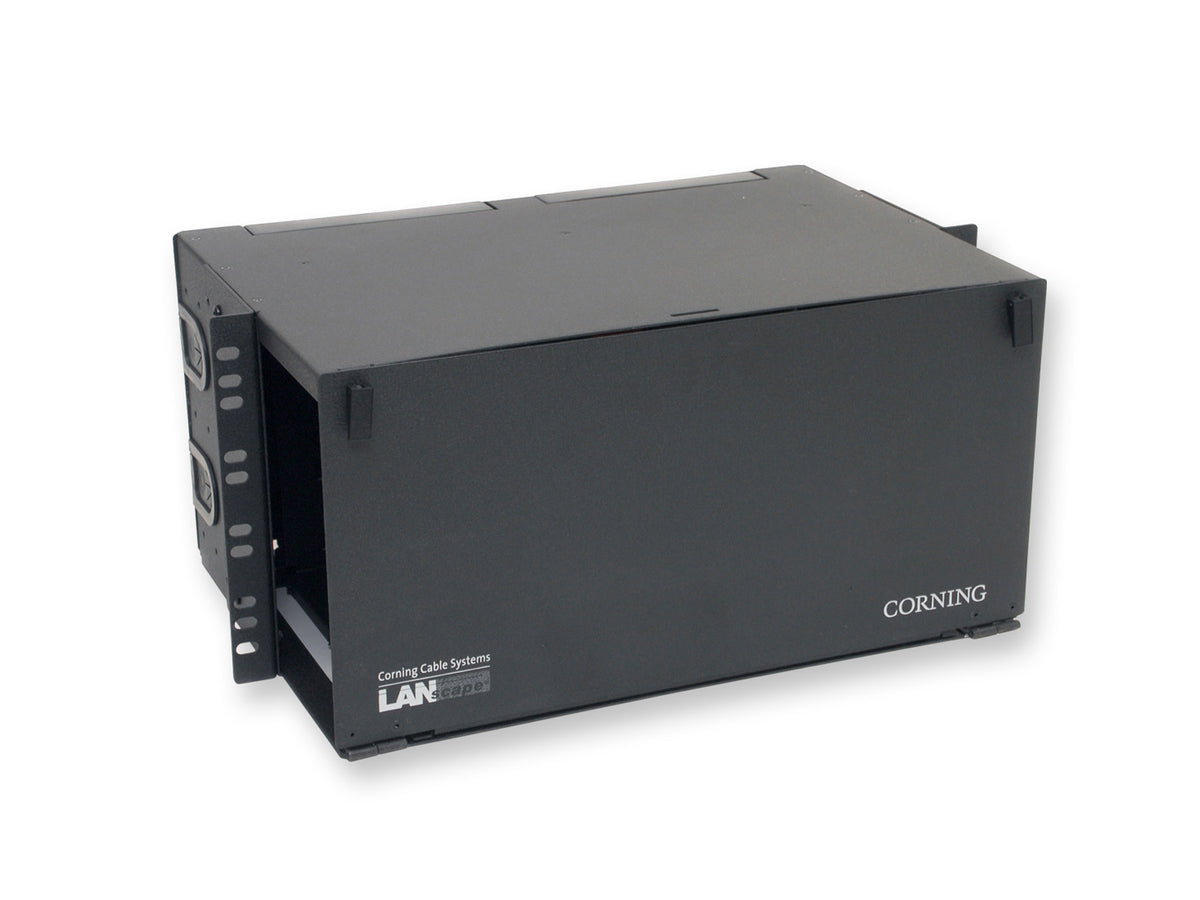

Corning CSH-05U | Closet Splice Housing (CSH) 5 rack units, holds (22) 0.2-in splice trays
Corning - CSH-05U - Features
- Universal cable clamp
- Cable strain-relief
- Open-side design
- Easy fiber egress
- Projection- or flush-mountable
- Various installation options
- Multiple grommeted cable entry ports
- Installation options and protection
Specifications
Specifications
Corning - CSH-05U - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Housings
Corning - CSH-05U - Specifications
| General Specifications | - |
|---|---|
| Product Number | CSH-05U |
| EAN Code | 4056418201535 |
| Product Type | Rack-Mountable Hardware |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Housing Type | Closet Splice Housing (CSH) |
| Locking Availability | Front or rear |
| Splice Tray Options | Up to 22 category 2R, 2S or 2M |
| Design - Adapter | - |
| Housing Color | Black |
| Connector Specs | - |
| Housing Color | Black |
| Dimensions | - |
| Height | 222 mm (8.74 in) |
| Depth | 305 mm (12.01 in) |
| Ordering Information | - |
| Package Contents | Housing with 19-in mounting ears; splice tray stacker with 24-in hook-and-loop strap; flip card label; installation guide; label, unit ID; 12 tie wraps, 1/8 x 4, white; spiral wrap, 3 ft; set of 19-in flush-mount ears; set of 23-in mounting ears; 8 mounting screws, #10-32; 4 mounting screws, #12-24; 4 mounting screws, M6; 2 Universal Cable Clamp (UCC) Kits, with 5 cable inserts; bracket for mounting UCC clamp; 2 central member strain-relief clamp kits; 2 sandpapers, 80 grit, 1-in wide and 2 nylon wing nuts, #6-32 |
| Shipping Weight | 3.6 kg |
| Width | 432 mm (17.01 in) |
| Height Unit | 5 U |
| Units per Delivery | 1/1" |
| Type | Rack Mount Splice Enclosure |
| Size - Rack Units | 5 |
| Size HxWxD Imperial | 8.75 x 17.00 x 12.00 in |
| Size HxWxD Metric | 222.2 x 431.8 x 304.8 mm |
| Color | Black |
