Brand: Corning
|
SKU:
427926

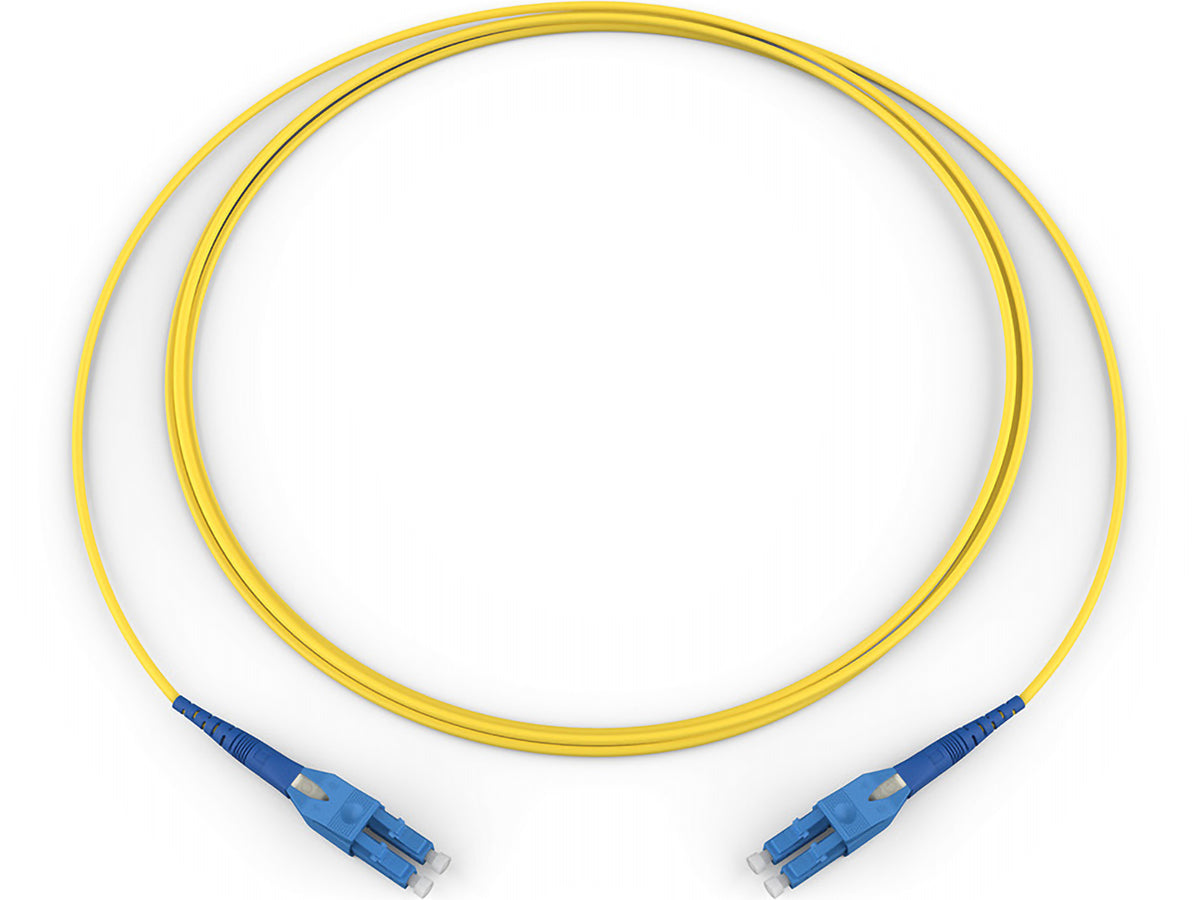

Corning E787802GNZ20005 | EDGE 2.0 MM Single-mode Patch Cord, LSZH, LC UPC Uniboot to LC UPC Uniboot, 5 m
Regular price
$65.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning E787802GNZ20005 | EDGE 2.0 MM Single-mode Patch Cord, LSZH,...
Regular price
$65.84
Unit price
Description
Description
Corning E787802GNZ20005 | EDGE 2.0 MM Single-mode Patch Cord, LSZH, LC UPC Uniboot to LC UPC Uniboot, 5 m
Corning - E787802GNZ20005 - Features
- State-Of-The-Art Manufacturing Processes
- Global operations
- Flexible design options
- Superior Performance Testing
Specifications
Specifications
Corning - E787802GNZ20005 - Specifications
| UNSPSC Code | 26121650 |
|---|---|
| Flame Rating | LSZH/FRNC |
| Fiber Category | Single-mode (OS2) |
| Product Category | Core Product / FastShip |
| Cable Assembly Type | Patch Cords |
| Environment | Indoor |
| Application | Data Center |
| Cable Type | Tight-Buffered |
| Fiber Count | 2 |
| Outer Jacket Material | LSZH/FRNC |
| Outer Jacket Color | Yellow |
| Polarity | Crossed, TIA-568 Type-B |
| Fire Load | 0.3 MJ/m |
| Minimum Bend Radius | 10 mm |
| Tensile Strength | 150 N |
| Nominal Outer Diameter | 2 mm |
| Crush Resistance | 1000 N/10 cm |
| Min. Bend Radius Installation | 20 mm |
| Min. Bend Radius Operation | 10 mm |
| Fiber Type | Single-mode (OS2) / 250 µm |
| Fiber Core Diameter | 8.2 µm |
| Cladding diameter | 125 µm |
| Coating diameter | 242 µm |
| Connector Type | LC UPC uniboot |
| Ferrule Material | Ceramic |
| Housing Color | Blue |
