Corning ECM-RM12-04-89G | EDGE Module
Regular price
$639.03
Unit price
Brand: Corning
|
SKU:
873181
Regular price
$639.03
Unit price
Description
Description

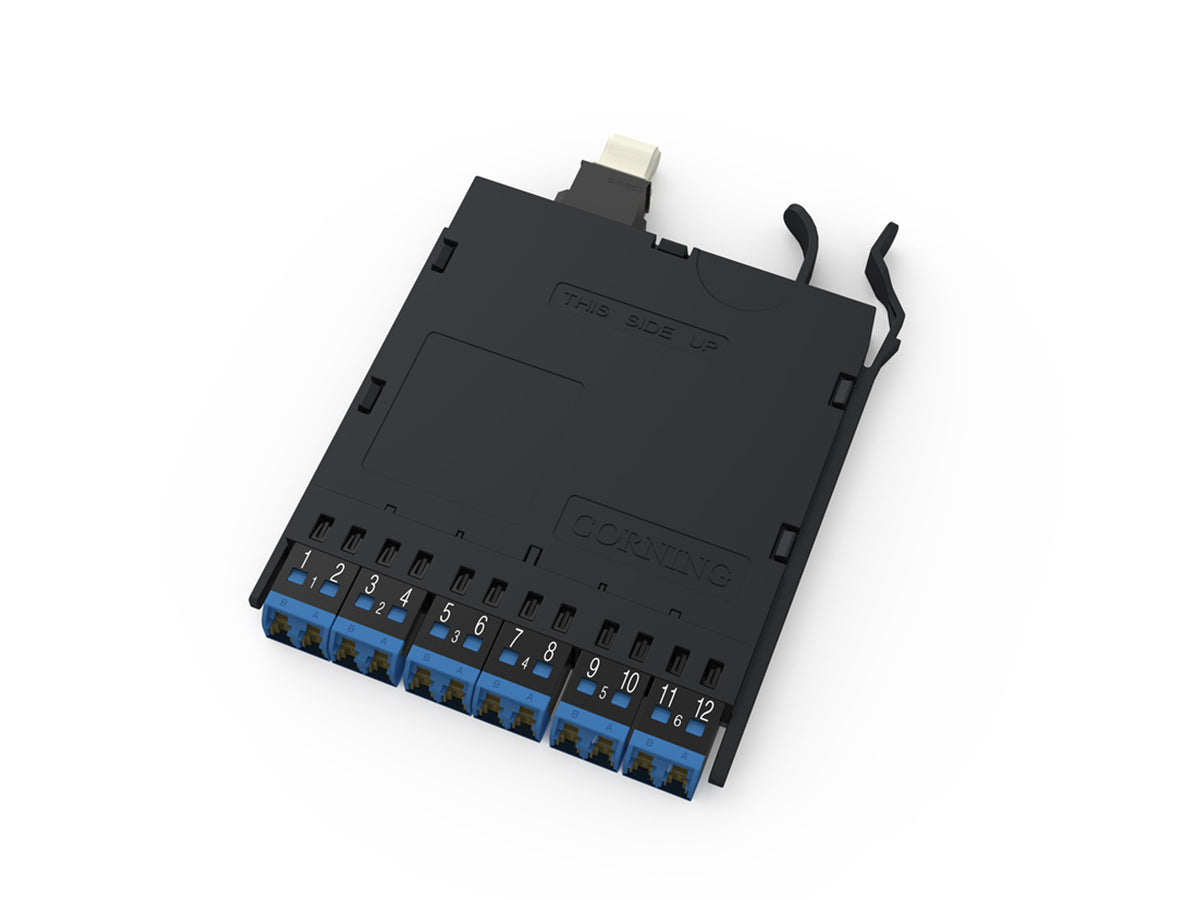

Corning ECM-RM12-04-89G | EDGE Module 12F, Bend-improved Single-mode (OS2)
Specifications
Specifications
Corning - ECM-RM12-04-89G - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM-RM12-04-89G - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM-RM12-04-89G |
| Product Type | Modules |
| Fiber Category | Bend-improved SM (OS2) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Black |
| Adapter Color Front | Blue |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Modules |
| Product Family | EDGE |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 1 dB |
| Wavelengths | 1310 nm / 1550 nm |
| Connector Specs | - |
| Ferrule Material | Ceramic |
| Specifications - Connector A | - |
| Connector Type | MTP (pinned) |
| Polish | UPC |
| Ferrule Material | Composite |
| Endface Type | APC |
| Specifications - Connector B | - |
| Connector Type | LC Duplex |
| Polish | UPC |
| Ferrule Material | Ceramic |
| Endface Type | APC |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Packaging Method | Individual Blister Packs |
| Width | 100 mm (3.94 in) |
| Depth | 125 mm (4.92 in) |
| Units per Delivery | 1/1" |
| Weight | 11 kg |
