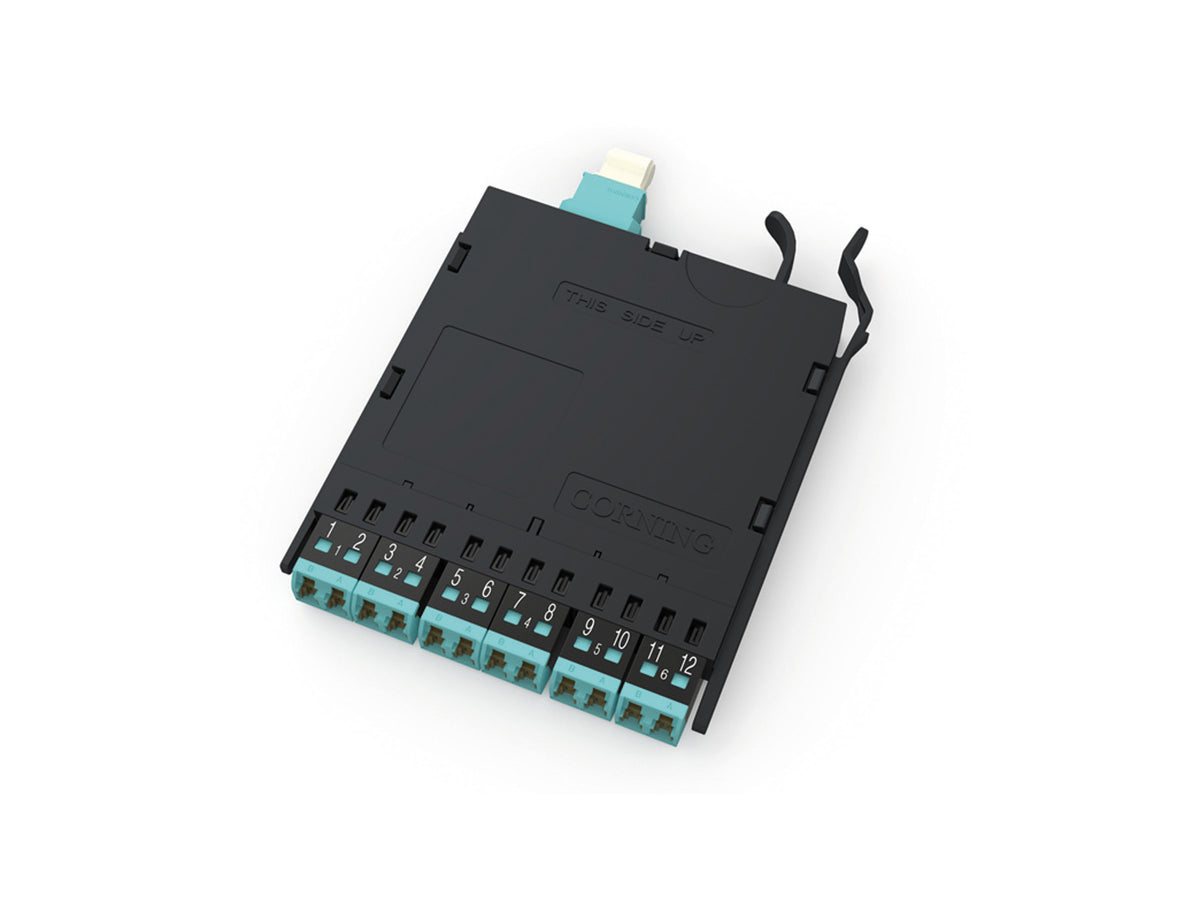

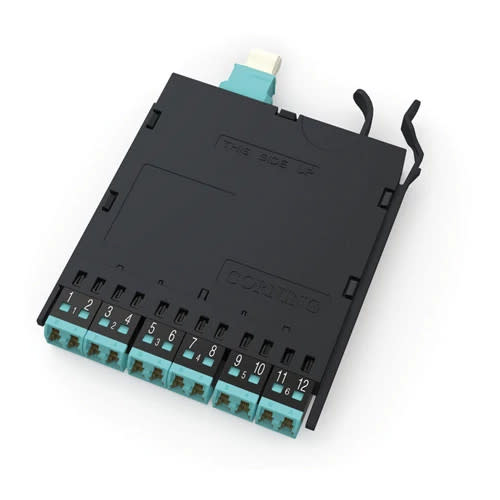

Corning ECM-RM12-05-93T | EDGE Module
Regular price
$609.28
Unit price
Brand: Corning
|
SKU:
520357
Regular price
$609.28
Unit price
Description
Description
Corning ECM-RM12-05-93T | EDGE Module 12F, 50 µm multimode (OM3)
Corning - ECM-RM12-05-93T - Features
- VFL-compatible shuttered LC adapters
- Creates one-hand operation and decreases time needed to test and troubleshoot a link Rear-loading capability
- Decreases the time to prepare and install modules into fiber housings High density
- Module enables 576 fibrs in a 4U housing and 144 fibers in a 1U Low insertion loss performance
- Improved performance specs allow for more mated pairs and/or longer link distances Corning CleanAdvantage technology and optimized dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - ECM-RM12-05-93T - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM-RM12-05-93T - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM-RM12-05-93T |
| Product Type | Modules |
| Fiber Category | 50 µm MM (OM3) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Modules |
| Product Family | EDGE |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.5 dB |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | 50 µm MM (OM3) |
| Connector Specs | - |
| Ferrule Material | Ceramic |
| Specifications - Connector A | - |
| Connector Type | MTP (pinned) |
| Polish | PC |
| Ferrule Material | Composite |
| Specifications - Connector B | - |
| Connector Type | LC Duplex |
| Polish | PC |
| Ferrule Material | Ceramic |
| Endface Type | PC |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Packaging Method | Individual Blister Packs |
| Width | 103 mm (4.06 in) |
| Depth | 125 mm (4.92 in) |
| Units per Delivery | 1/1" |
| Weight | 11 kg |
