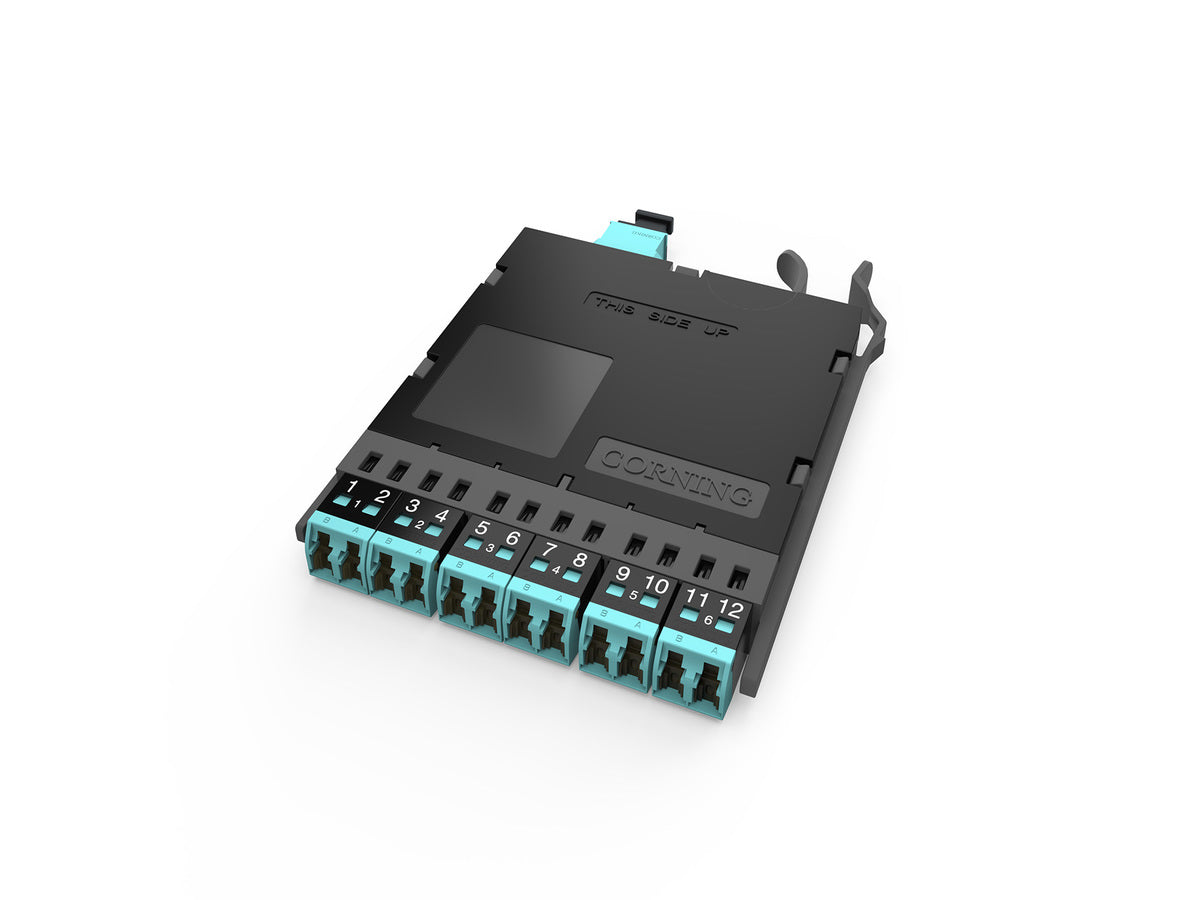

Corning ECM-UM12-05-75Q | Edge Module 12F 50 µm Multimode OM4
Regular price
$622.37
Unit price
Brand: Corning
|
SKU:
426472
Regular price
$622.37
Unit price
Description
Description
Corning ECM-UM12-05-75Q | Edge Module 12F 50 µm Multimode OM4
Specifications
Specifications
Corning - ECM-UM12-05-75Q - Specifications
| Fiber Count | 12 |
|---|---|
| Adapter Type Back | MTP® |
| Adapter Color Back | Aqua |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Modules |
| Product Family | EDGE |
| Polarity | Universal |
| Module Insertion Loss, Max | 0.35 dB |
| Connector A Type | LC Duplex |
| Connector A Polish | PC |
| Connector A Endface Type | PC |
| Connector B Type | MTP® (Non-Pinned) |
| Connector B Polish | PC |
| Connector B Ferrule Material | Ceramic |
| Width | 96 mm |
