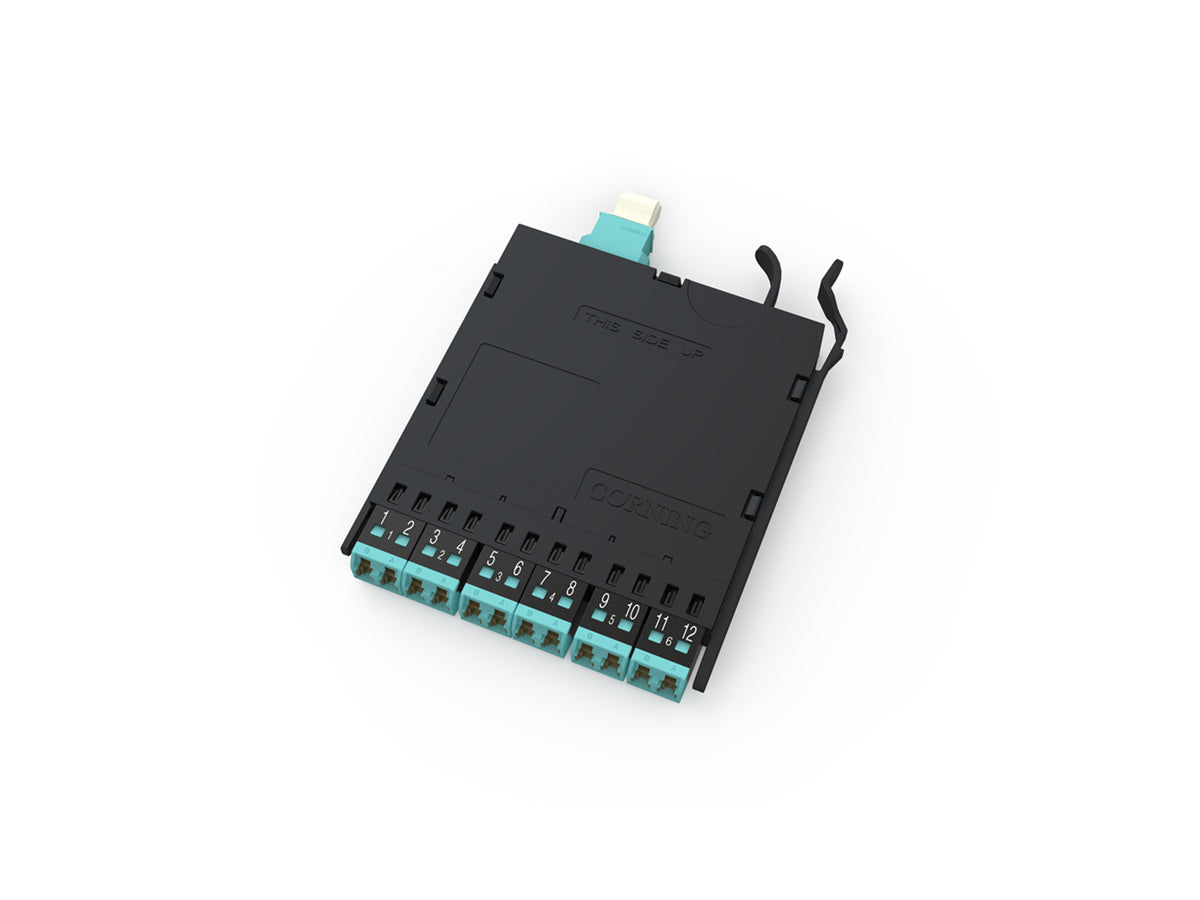

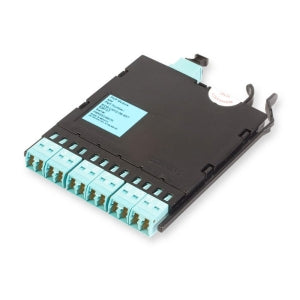

Corning ECM-UM12-05-93Q | EDGE Module
Regular price
$622.37
Unit price
Brand: Corning
|
SKU:
398319
Regular price
$622.37
Unit price
Description
Description
Corning ECM-UM12-05-93Q | EDGE Module 12F, 50 µm multimode (OM4)
Specifications
Specifications
Corning - ECM-UM12-05-93Q - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Data Communications and Networking
- Copper and Fiber Connectivity
- Inserts and Adapters
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM-UM12-05-93Q - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM-UM12-05-93Q |
| Product Type | Modules |
| Fiber Category | 50 µm MM (OM4) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Modules |
| Product Family | EDGE |
| Cable Design | - |
| Polarity | Universal |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.5 dB |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | 50 µm MM (OM4) |
| Connector Specs | - |
| Ferrule Material | Ceramic |
| Specifications - Connector A | - |
| Connector Type | MTP (pinned) |
| Polish | PC |
| Ferrule Material | Composite |
| Endface Type | PC |
| Specifications - Connector B | - |
| Connector Type | LC Duplex |
| Polish | PC |
| Ferrule Material | Ceramic |
| Endface Type | PC |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Weight | 1 kg |
| Packaging Method | Individual Blister Packs |
| Width | 96 mm (3.78 in) |
| Depth | 125 mm (4.92 in) |
| Units per Delivery | 1/1" |
| Module Type | Pre-Terminated Cassette |
| Fiber Type | 50um Multimode |
| Color | Aqua |
