Corning ECM-UM12-18-89G | EDGE Module
Regular price
$650.93
Unit price
Brand: Corning
|
SKU:
591619
Regular price
$650.93
Unit price
Description
Description

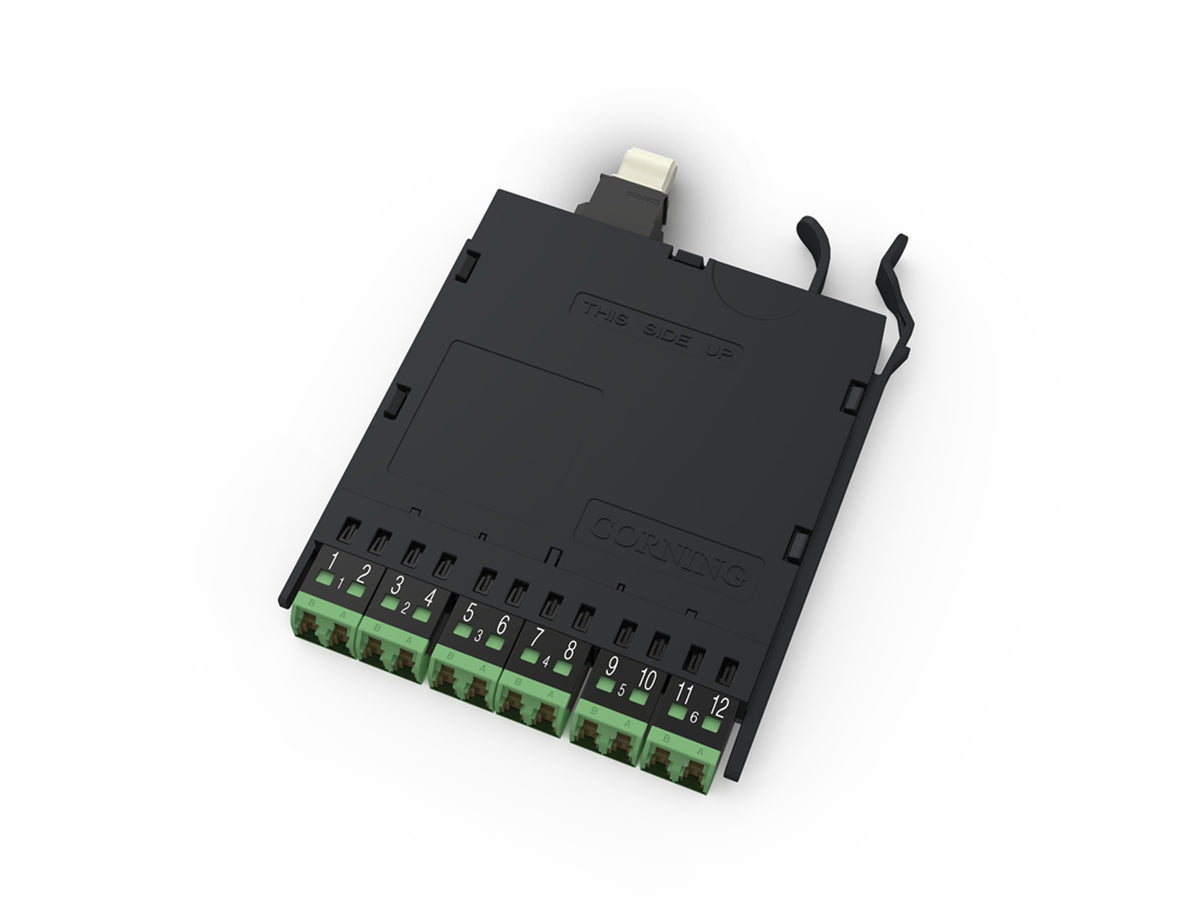

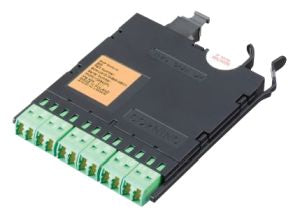

Corning ECM-UM12-18-89G | EDGE Module 12F, Bend-improved Single-mode (OS2)
Specifications
Specifications
Corning - ECM-UM12-18-89G - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM-UM12-18-89G - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM-UM12-18-89G |
| Product Type | Modules |
| Fiber Category | Bend-improved SM (OS2) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Black |
| Adapter Color Front | Green |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Modules |
| Product Family | EDGE |
| Cable Design | - |
| Polarity | Universal |
| Design - Adapter | - |
| Housing Color | Green |
| Housing Material | Composite |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 1 dB |
| Wavelengths | 1310 nm / 1550 nm |
| Connector Specs | - |
| Housing Color | Green |
| Housing Material | Composite |
| Ferrule Material | Ceramic |
| Specifications - Connector A | - |
| Connector Type | MTP (pinned) |
| Housing Color | Green |
| Polish | APC |
| Housing Material | Composite |
| Ferrule Material | Composite |
| Keyed (security) | No |
| Endface Type | APC |
| Insertion Loss, Max. | 0.5 dB |
| Reflectance | ? -65 dB |
| Specifications - Connector B | - |
| Connector Type | LC Duplex |
| Polish | APC |
| Housing Material | Composite |
| Ferrule Material | Ceramic |
| Endface Type | APC |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Packaging Method | Individual Blister Packs |
| Width | 102 mm (4.02 in) |
| Depth | 125 mm (4.92 in) |
| Units per Delivery | 1/1" |
| Weight | 11 kg |
| Connector Type | LC/APC Duplex to MTP/APC Module |
| Fiber Type | Singlemode (OS2) |
| Ferrule | Ceramic, Composite |
| Color | Green |
