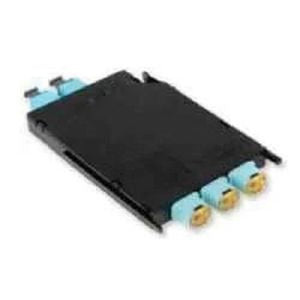

Corning ECM-UM24-93-93Q | EDGE Conversion Modules 24 F, MTP (pinned) to MTP (pinned), 50 µm multimode (OM4)
Corning - ECM-UM24-93-93Q - Features
- VFL-compatible shuttered LC adapters
- Creates one-hand operation and decreases time needed to test and troubleshoot a link
- Rear-loading capability
- Decreases the time to prepare and install modules into fiber housings
- High density
- Low insertion loss performance
- Improved performance specs allow for more mated pairs and/or longer link distances
- Corning CleanAdvantage technology and optimised dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - ECM-UM24-93-93Q - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM-UM24-93-93Q - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM-UM24-93-93Q |
| EAN Code | 4042673646181 |
| Product Type | Panels and Modules |
| Fiber Category | 50 µm MM (OM4) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Environmental Conditions | - |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Design | - |
| Fiber Count | 24 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered MTP 3x8F |
| Housing Type | Panels and Modules |
| Number of Adapters per Panel | 3 |
| Cable Design | - |
| Fiber Count | 24 |
| Polarity | TIA-568 Type-B |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.5 dB |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | 50 µm MM (OM4) |
| Connector Specs | - |
| Ferrule Material | Composite |
| Specifications - Connector A | - |
| Connector Type | MTP (pinned) |
| Ferrule Material | Composite |
| Specifications - Connector B | - |
| Connector Type | MTP (pinned) |
| Ferrule Material | Composite |
| Ordering Information | - |
| Weight | 11 kg |
| Units per Delivery | 1/1" |
| Adapter Type | Fiber Cable Adapter |
| Side A | Shuttered |
| Side B | MTP |
| Fiber Count | 24 |
| Fiber Type | Multimode (OM4), 50? |
| Connector Material | Composite Side A and Side B |
| Color | Aqua |
