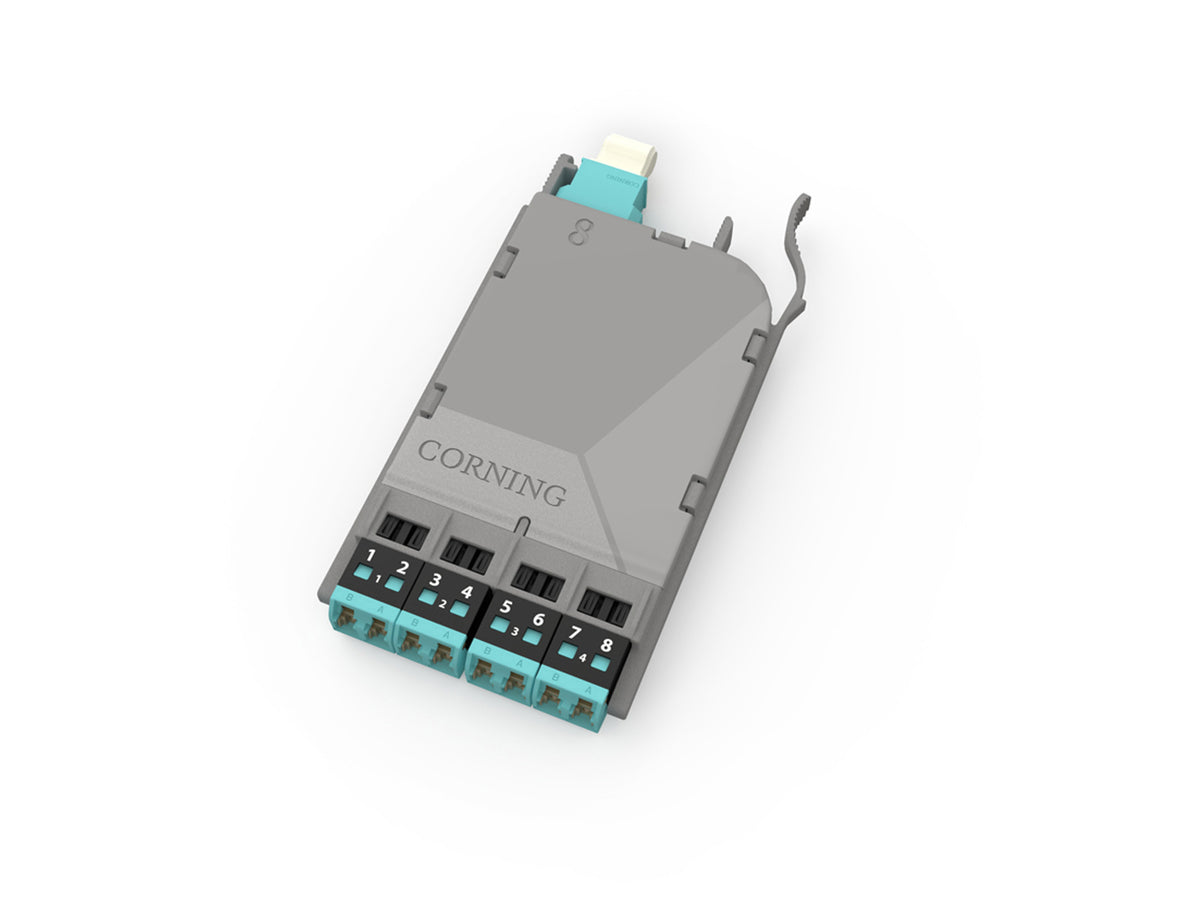

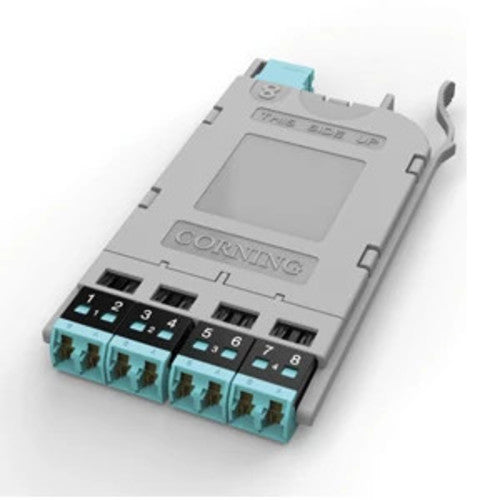

Corning ECM8-RM08-05-E6Q-ULL | EDGE8 MTP to LC Duplex Module
Regular price
$500.94
Unit price
Brand: Corning
|
SKU:
812107
Regular price
$500.94
Unit price
Description
Description
Corning ECM8-RM08-05-E6Q-ULL | EDGE8 MTP to LC Duplex Module 8F, 50 µm multimode (OM4), Ultra-Low-Loss
Corning - ECM8-RM08-05-E6Q-ULL - Features
- VFL-compatible shuttered LC adapters
- Creates one-hand operation and decreases time needed to test and troubleshoot a link
- Rear-loading capability
- Decreases the time to prepare and install modules into fiber housings
- High density
- Low insertion loss performance
- Improved performance specs allow for more mated pairs and/or longer link distances
- Corning CleanAdvantage technology and optimised dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - ECM8-RM08-05-E6Q-ULL - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Data Communications and Networking
- Copper and Fiber Connectivity
- Inserts and Adapters
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ECM8-RM08-05-E6Q-ULL - Specifications
| General Specifications | - |
|---|---|
| Product Number | ECM8-RM08-05-E6Q-ULL |
| Product Type | Modules |
| Fiber Category | 50 µm MM (OM4) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 8 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered LC Duplex |
| Housing Type | Panels and Modules |
| Product Family | EDGE8 |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.35 dB |
| Specifications - Connector A | - |
| Connector Type | MTP (non-pinned) |
| Polish | PC |
| Ferrule Material | Composite |
| Specifications - Connector B | - |
| Connector Type | LC Duplex |
| Polish | PC |
| Ferrule Material | Ceramic |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Packaging Method | Individual Blister Packs |
| Width | 119 mm (4.69 in) |
| Depth | 125 mm (4.92 in) |
| Units per Delivery | 1/1" |
| Weight | 1 kg |
| Module Type | LC Duplex to MTP |
| Fiber Type | Multimode OM4 |
