Brand: Corning
|
SKU:
10074087

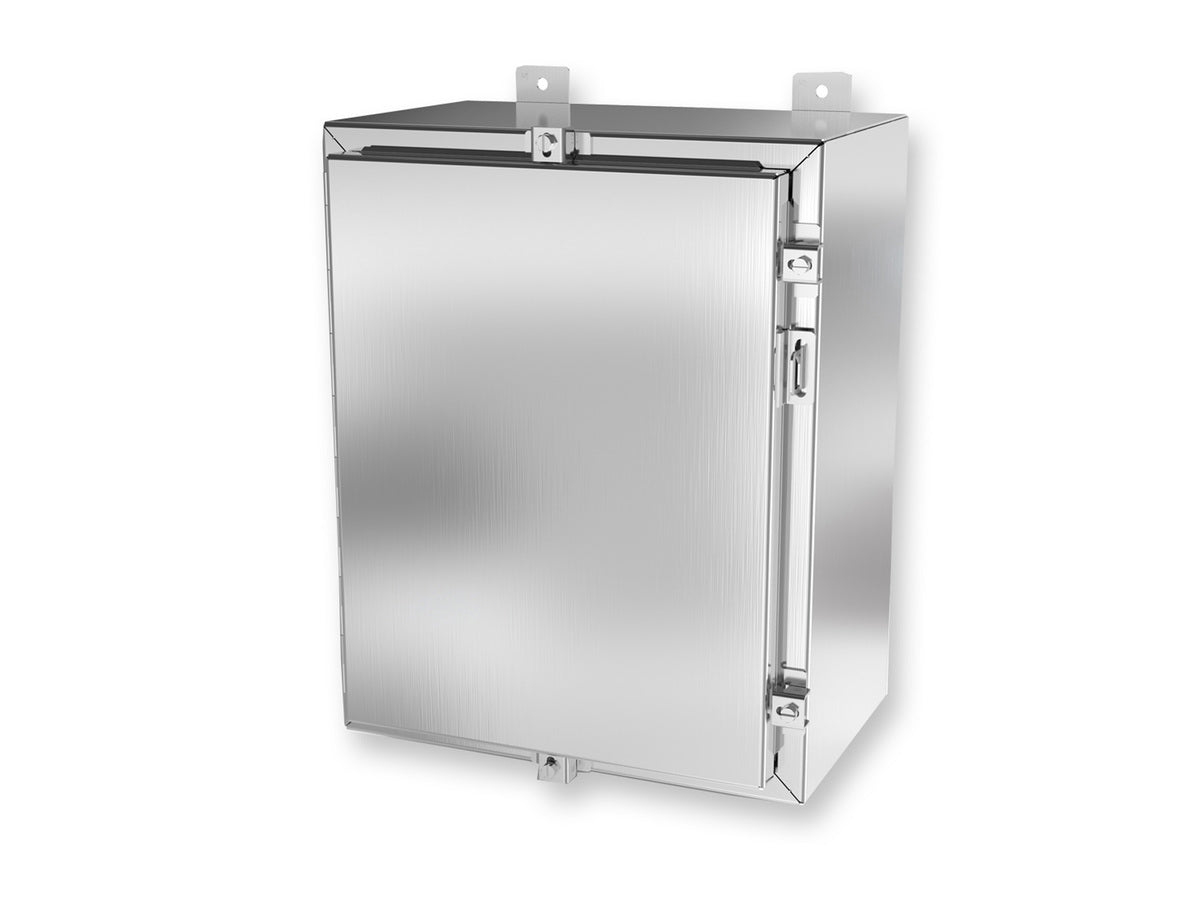

Corning EDC-STEEL-12P | Stainless Steel Environmental Distribution Center (SSEDC) 12 Panel, Stainless
Regular price
$3,644.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning EDC-STEEL-12P | Stainless Steel Environmental Distribution ...
Regular price
$3,644.51
Unit price
Description
Description
Corning EDC-STEEL-12P | Stainless Steel Environmental Distribution Center (SSEDC) 12 Panel, Stainless
Corning - EDC-STEEL-12P - Features
- NEMA 4X or IEC IP66 rated
- Protection and durability from the elements
- Lockable cover
- System security
- Indoor and outdoor use
- Versatility in a variety of applications
- Unit is easy to punch, drill or saw, mounting kit available
- Fast and easy installation
Specifications
Specifications
Corning - EDC-STEEL-12P - Specifications
| Product Number | EDC-STEEL-12P-NH |
|---|---|
| Product Type | FOH Closures |
| Lockable | Yes |
| Mounting Type | Wall-Mountable, Floor mount, Pole-mount |
| Application | Enterprise Networks, General Building Applications, Outdoor |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Housing Material | Metal |
| Cabinet Fiber Capacity | 144 |
| Cable entry type | From top and bottom |
| Cable Entry Direction | Top / Bottom |
| Housing Color | Anodized silver |
| Housing Material | Metal |
| Housing Color | Anodized silver |
| Height | 472 cm |
| Width | 42.2 cm |
| Depth | 262 cm |
| Weight | 15 kg |
| Package Contents,Shipping Weight,Module Capacity,Units per Delivery | Housing with installation guide; 2 blank panels; unit ID label; 6 #8-32 x 0.50-in SS; 6 #8-32 SS nuts; 6 #8 split locker washer, SS; 6 M6 flat washers, SS; central member strain-relief clamp kit; (40) 0.140-in tie wraps; sheath retention hardware kit; quick release latch kit,16.3 kg,12,1/1 |
