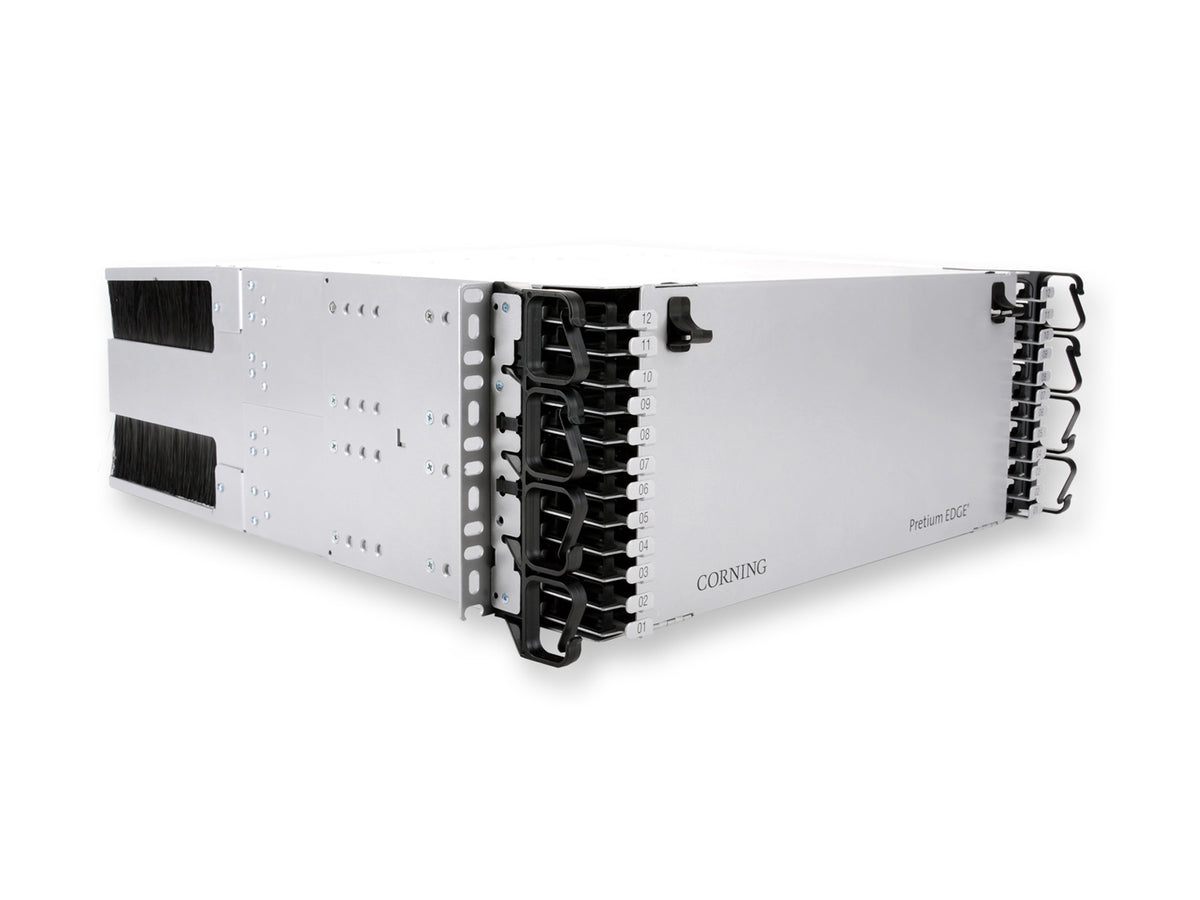

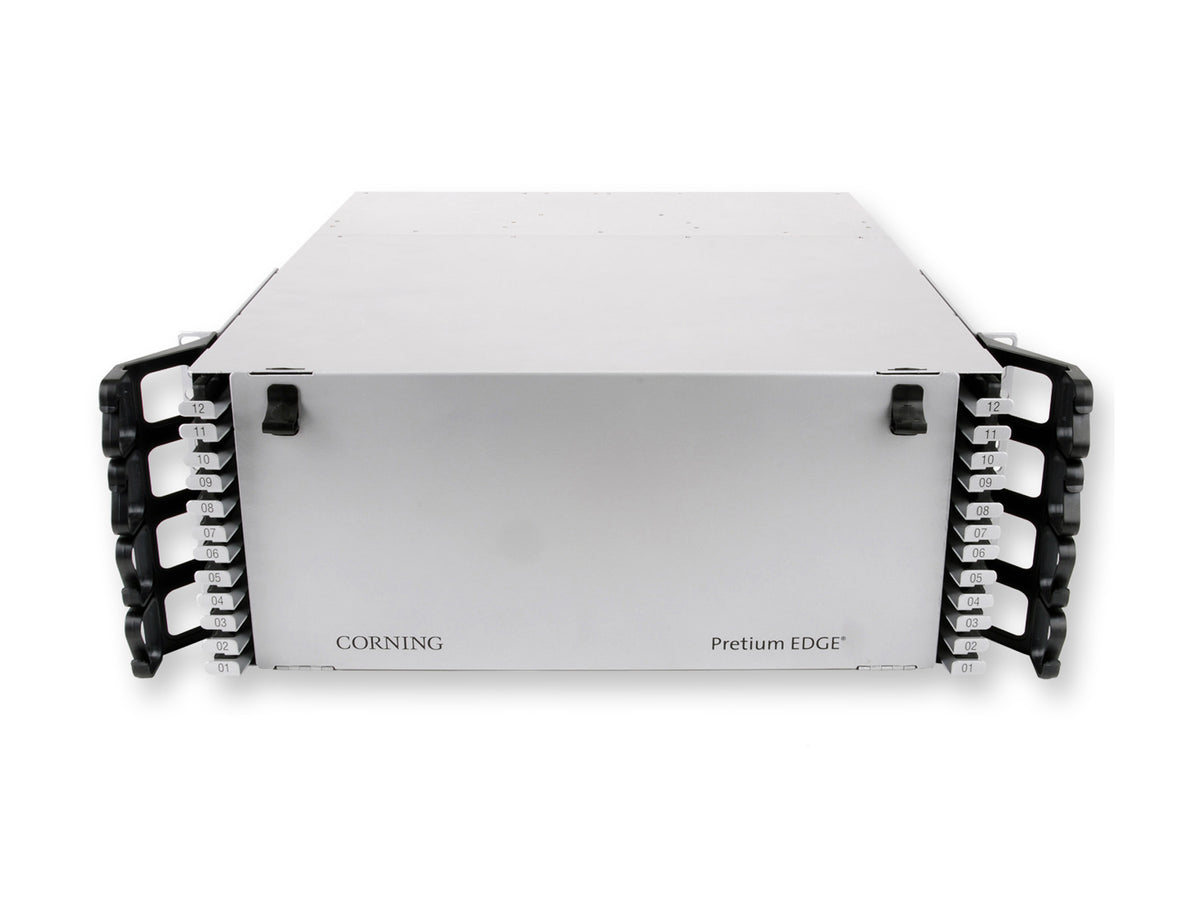

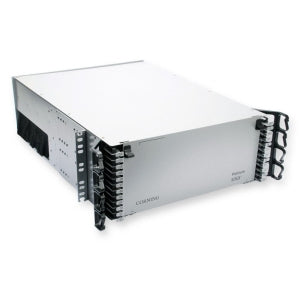

Corning EDGE-04U | EDGE Housing
Regular price
$1,679.08
Unit price
Brand: Corning
|
SKU:
591612
Regular price
$1,679.08
Unit price
Description
Description
Corning EDGE-04U | EDGE Housing 4 rack units, holds up to 48 EDGE modules or panels
Specifications
Specifications
Corning - EDGE-04U - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Housings
Corning - EDGE-04U - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-04U |
| EAN Code | 4056418011516 |
| Product Type | Fiber Optic Hardware |
| Lockable | Yes, rear side |
| Mounting Type | Rack Mount, Cabinet-mount |
| Application | Data Center, Data Center LAN/SAN, Enterprise Networks |
| Brand | EDGE |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Number of Modules | 48 |
| Cable entry type | Side brush entry |
| Number of Panels/Cassettes per Housing | 48 |
| Cable Entry Direction | Rear |
| Housing Type | EDGE |
| Color | Silver |
| Panel or Cassette Type | EDGE |
| Panel or Module Type | EDGE |
| Fiber Capacity | 576 |
| Design - Adapter | - |
| Housing Color | Silver |
| Dimensions | - |
| Height | 177 mm (6.97 in) |
| Width | 432 mm (17.01 in) |
| Depth | 561 mm (22.09 in) |
| Shipping Dimensions | - |
| Height | 305 mm (12.01 in) |
| Width | 565 mm (22.24 in) |
| Depth | 660 mm (25.98 in) |
| Ordering Information | - |
| Weight | 14.5 kg |
| Package Contents | EDGE Housing 4U; Quick Start Guide, #12-24 and #10-32 mounting screws, Cage Nut Mounting Kit, Velcro Strap, Fiber Optic Warning Label |
| Shipping Weight | 16.8 kg |
| Module Capacity | 48 |
| Width | 432 mm (17.01 in) |
| Height Unit | 4 U |
| Units per Delivery | 1/1" |
| Trunk Capacity | 48 (size 1 or 2, double stack cradle) |
| Type | Pretium EDGE Solutions Housing |
| Size | 4RU |
| Mounting | Rack Mount Housing |
