Corning EDGE-CP48-E3 | EDGE Adapter Panel, MTP
Regular price
$199.20
Unit price
Brand: Corning
|
SKU:
412439
Regular price
$199.20
Unit price
Description
Description

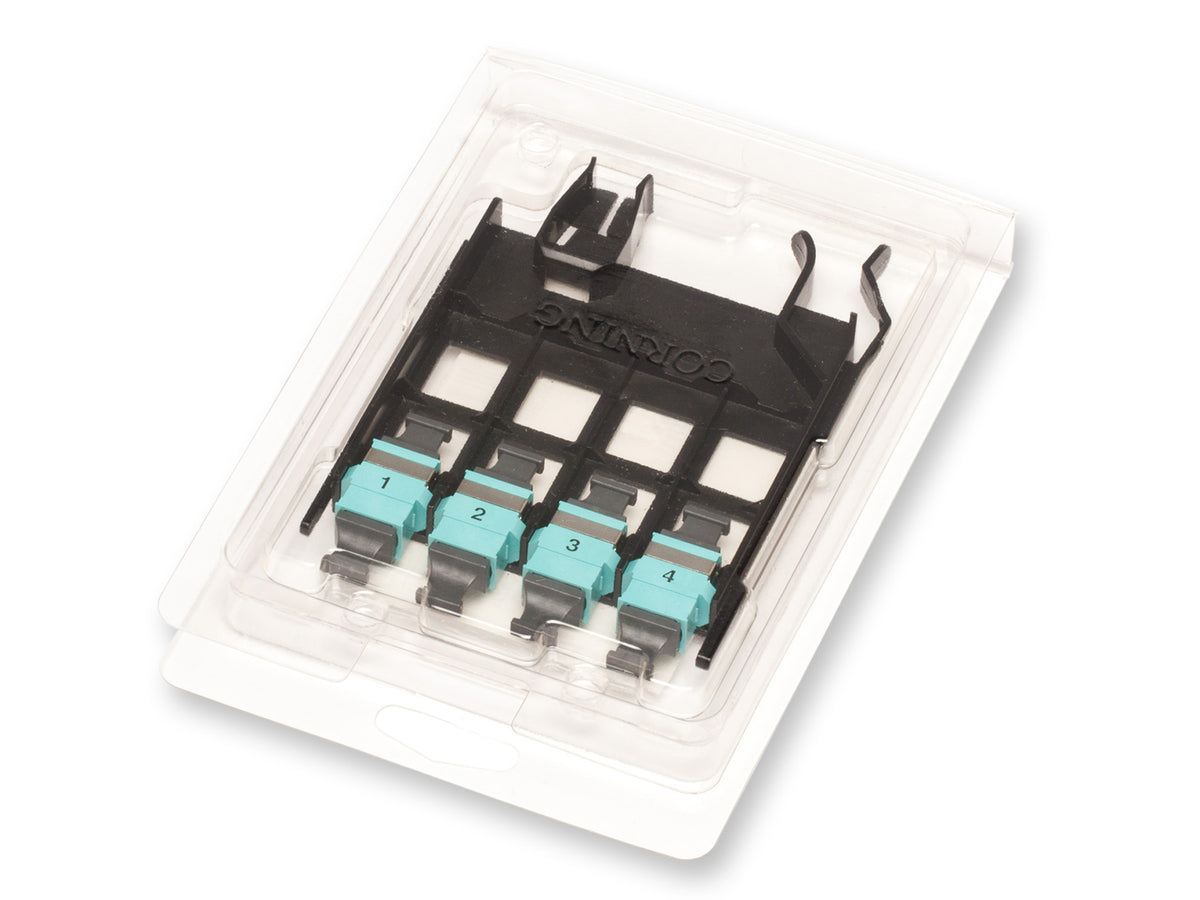

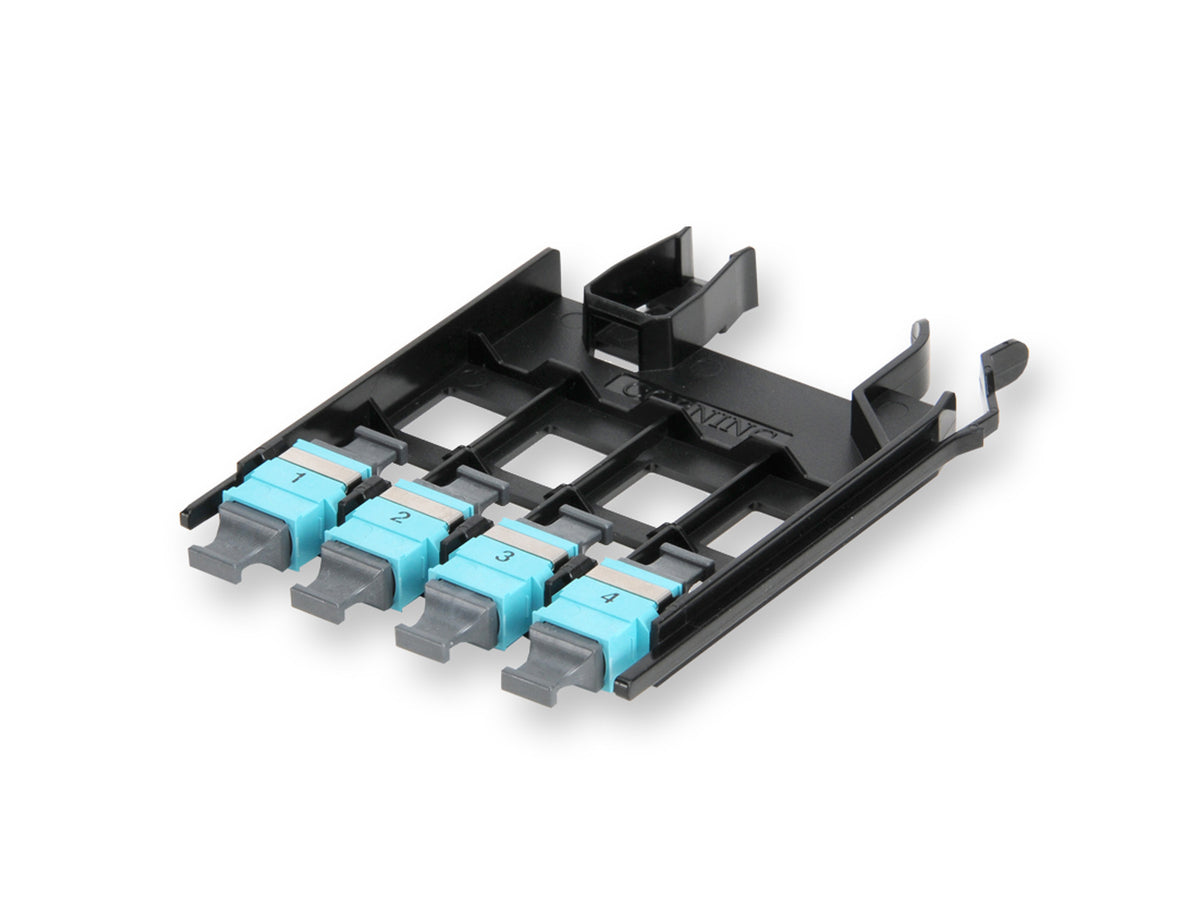

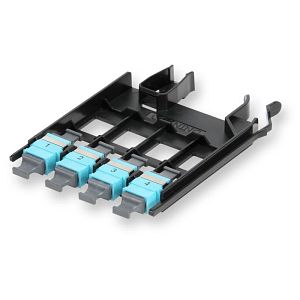

Corning EDGE-CP48-E3 | EDGE Adapter Panel, MTP 48 F, 50 µm multimode (OM3/OM4)
EDGE Adapter Panel, Composite, (4) MTP Adapters; (48) Fibers, Black
Corning - EDGE-CP48-E3 - Features
- Provide MTP connection points
- Between trunks and harnesses or extender trunks
- Installation
- Can be installed or removed from the front or rear of a housing
- Network upgrades
- Facilitate simple upgrades to parallel optics
- Packaging
- Packaged in easy-open containers
Specifications
Specifications
Corning - EDGE-CP48-E3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Panels
- DataComm
- Fiber Optic Hardware
- Fiber Optic Enclosures
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CP48-E3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CP48-E3 |
| EAN Code | 4056418178349 |
| Fiber Category | 50 µm MM (OM3/OM4/OM5) |
| Product Type | Panels and Modules |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 48 |
| Number of Adapters per Panel | 4 |
| Housing Material | Composite |
| Housing Type | Panels and Modules |
| Cable Design | - |
| Fiber Count | 48 |
| Design - Adapter | - |
| Housing Color | Aqua |
| Housing Material | Composite |
| Adapter Style | Standard |
| Adapter Type | MTP |
| Dimensions | - |
| Height | 9 mm (0.35 in) |
| Width | 100 mm (3.94 in) |
| Depth | 125 mm (4.92 in) |
| Shipping Dimensions | - |
| Height | 200 mm (7.87 in) |
| Width | 250 mm (9.84 in) |
| Depth | 130 mm (5.12 in) |
| Ordering Information | - |
| Weight | 0.028 kg |
| Shipping Weight | 0.715 kg |
| Units per Delivery | 1/1" |
Documents and Downloads
Documents and Downloads
