Corning EDGE-CP72-U1 | EDGE Panel
Regular price
$293.30
Unit price
Brand: Corning
|
SKU:
526430
Regular price
$293.30
Unit price
Description
Description

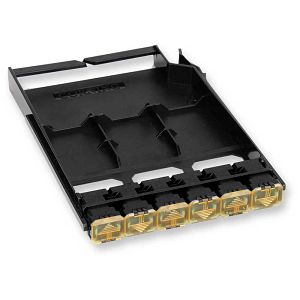

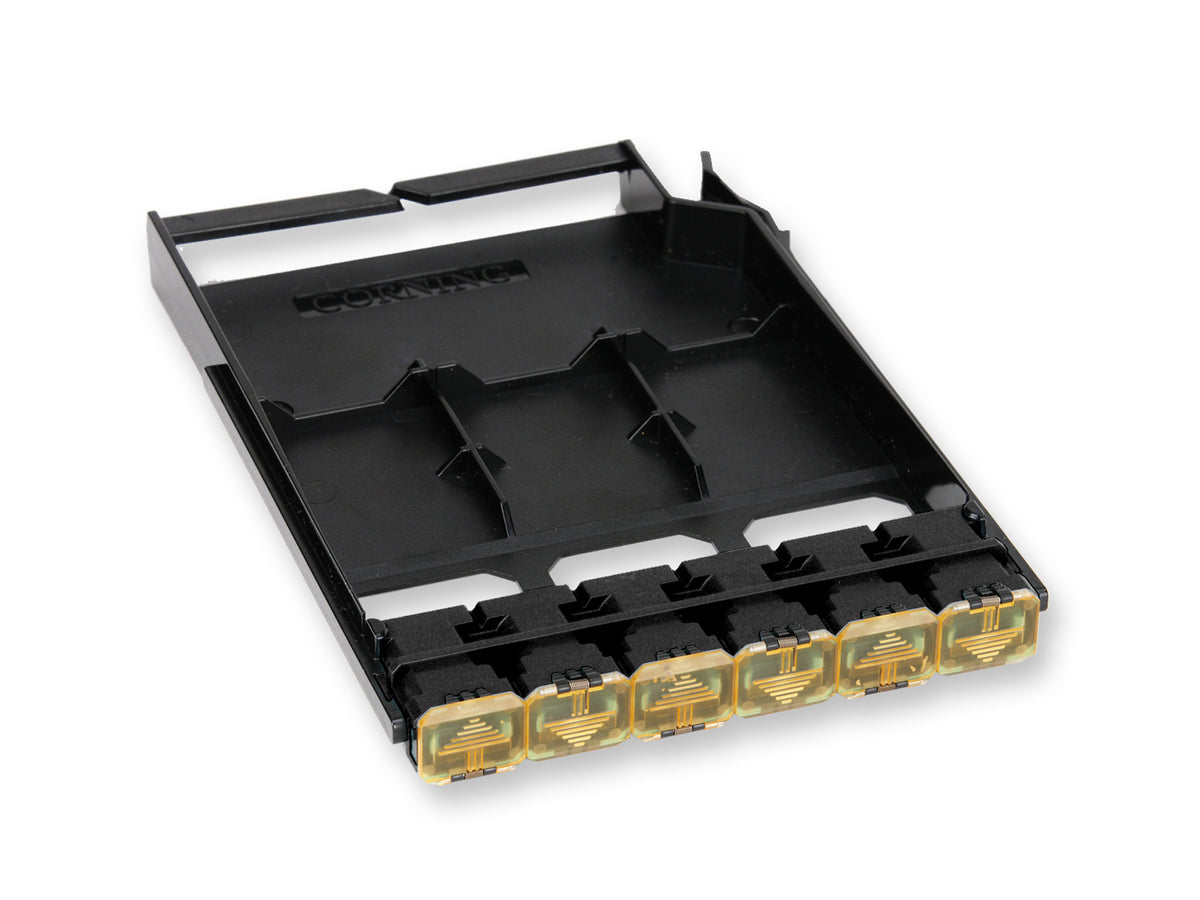

Corning EDGE-CP72-U1 | EDGE Panel 72 F, Single-mode (OS2)
EDGE MTP Adapter panel provide a simple interface to mate MTP Connectors. This occurs when connecting MTP trunks to MTP extended trunks, MTP trunks to trunk harnesses and, in 40G multimode networks, connecting MTP trunks to 40G jumpers.
Corning - EDGE-CP72-U1 - Features
- Reversible MTP adapters allow on-site polarity changes
- Reduced risk of installation delays or errors during commissioning of new devices
- Utilises existing EDGE Solutions hardware and backbone cabling
- Higher return on investment and reduced capitalisation and installation costs
- Corning ClearCurve fiber-enabled components create smaller form factor, more rugged cabling
- Reduced congestion within and between racks for improved airflow; less risk of downtime due to pinched or bent cables
- MTP adapter panels
- Facilitate simple upgrades to parallel optics
- No need for dust caps
- Provide reliable dust protection
- Translucent shutters
- Diffuse VFL light and allows fiber identification for 6 port MTP and LC panels
Specifications
Specifications
Corning - EDGE-CP72-U1 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Panels
- DataComm
- Modular Jacks and Accessories
- Jacks, Outlets, Modules and Adapters
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CP72-U1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CP72-U1 |
| EAN Code | 4056418146621 |
| Product Type | Panels and Modules |
| Fiber Category | Single-mode (OS2) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 72 |
| Adapter Type Back | MTP |
| Adapter Color Back | Black |
| Adapter Type Master Level | MTP MPO |
| Adapter Color Front | Black |
| Adapter Type Front | Shuttered MTP |
| Housing Type | Panels and Modules |
| Number of Adapters per Panel | 6 |
| Cable Design | - |
| Fiber Count | 72 |
| Design - Adapter | - |
| Housing Color | Black |
| Dimensions | - |
| Depth | 1.443 mm (0.06 in) |
| Ordering Information | - |
| Weight | 11 kg |
| Units per Delivery | 1/1" |
