Corning EDGE-CP72-U3 | EDGE Panel
Regular price
$290.40
Unit price
Brand: Corning
|
SKU:
519521
Regular price
$290.40
Unit price
Description
Description

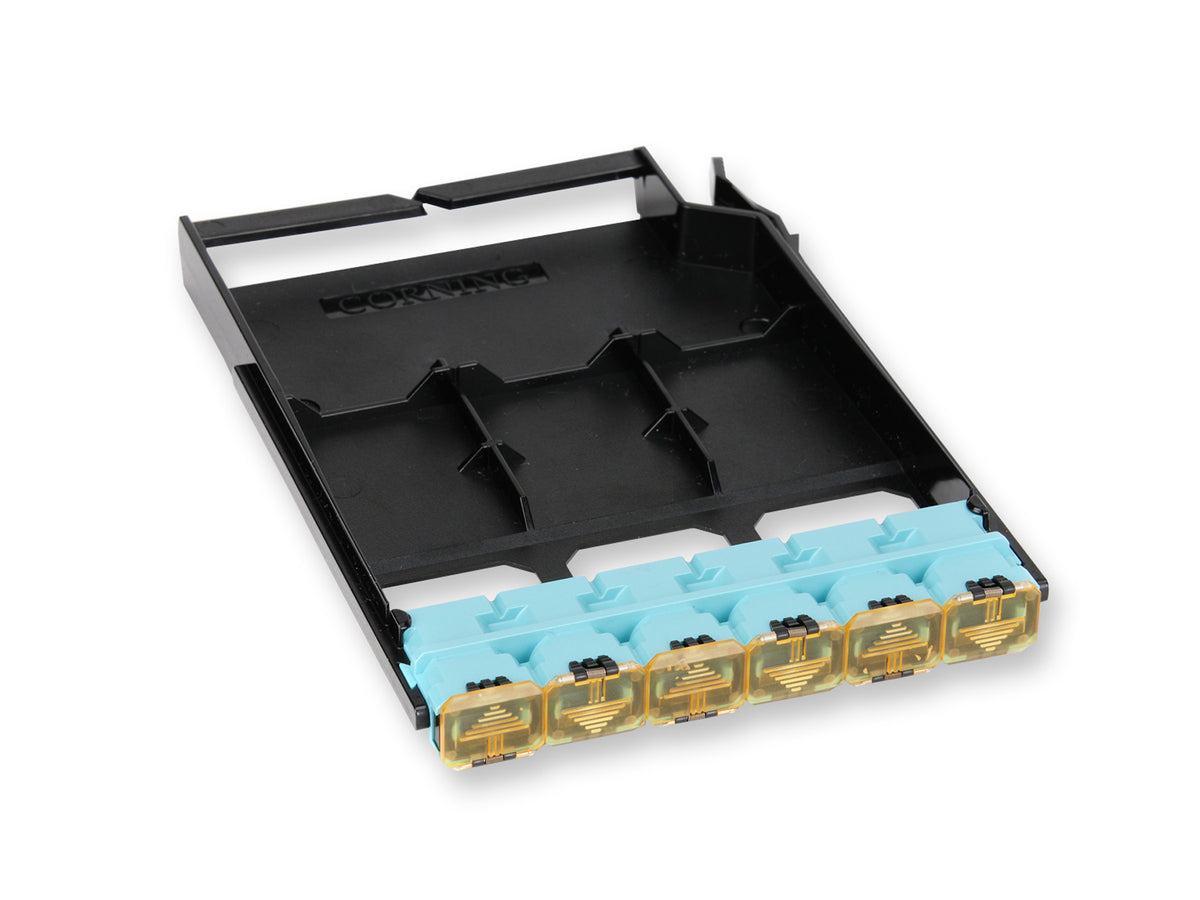

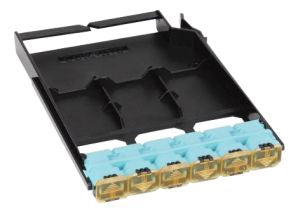

Corning EDGE-CP72-U3 | EDGE Panel 72 F, 50 µm multimode (OM3/OM4)
Corning - EDGE-CP72-U3 - Features
- Reversible MTP adapters allow on-site polarity changes
- Reduced risk of installation delays or errors during commissioning of new devices
- Utilises existing EDGE Solutions hardware and backbone cabling
- Higher return on investment and reduced capitalisation and installation costs
- Corning ClearCurve fiber-enabled components create smaller form factor, more rugged cabling
- Reduced congestion within and between racks for improved airflow; less risk of downtime due to pinched or bent cables
- MTP adapter panels
- Facilitate simple upgrades to parallel optics
- No need for dust caps
- Provide reliable dust protection
- Translucent shutters
- Diffuse VFL light and allows fiber identification for 6 port MTP and LC panels
Specifications
Specifications
Corning - EDGE-CP72-U3 - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Panels
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panels - Loaded
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CP72-U3 - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CP72-U3 |
| EAN Code | 4056418146614 |
| Product Type | Panels and Modules |
| Fiber Category | 50 µm MM (OM3/OM4/OM5) |
| Application | Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 72 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua |
| Adapter Type Master Level | MTP MPO |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered MTP |
| Housing Type | Panels and Modules |
| Number of Adapters per Panel | 6 |
| Cable Design | - |
| Fiber Count | 72 |
| Design - Adapter | - |
| Housing Color | Aqua |
| Dimensions | - |
| Depth | 1.443 mm (0.06 in) |
| Ordering Information | - |
| Weight | 11 kg |
| Units per Delivery | 1/1" |
| Type | Fiber AO Panel |
| Mounting Style | Rack |
| Connector Type | MTP |
| Fiber Count | 72 |
| Fiber Type | Multimode 50 um (OM3/OM4) |
| Size - Rack Units | 1U |
| Dimensions | 0.46 in. H x 3.53 in. W x 5.68 in. D |
| Color | Aqua |
