Corning EDGE-CS12-AE-P00RJ | EDGE Splice Cassette
Regular price
$749.70
Unit price
Brand: Corning
|
SKU:
1046531
Regular price
$749.70
Unit price
Description
Description

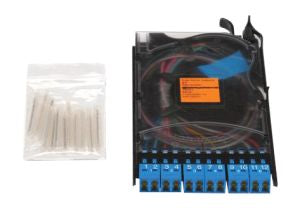

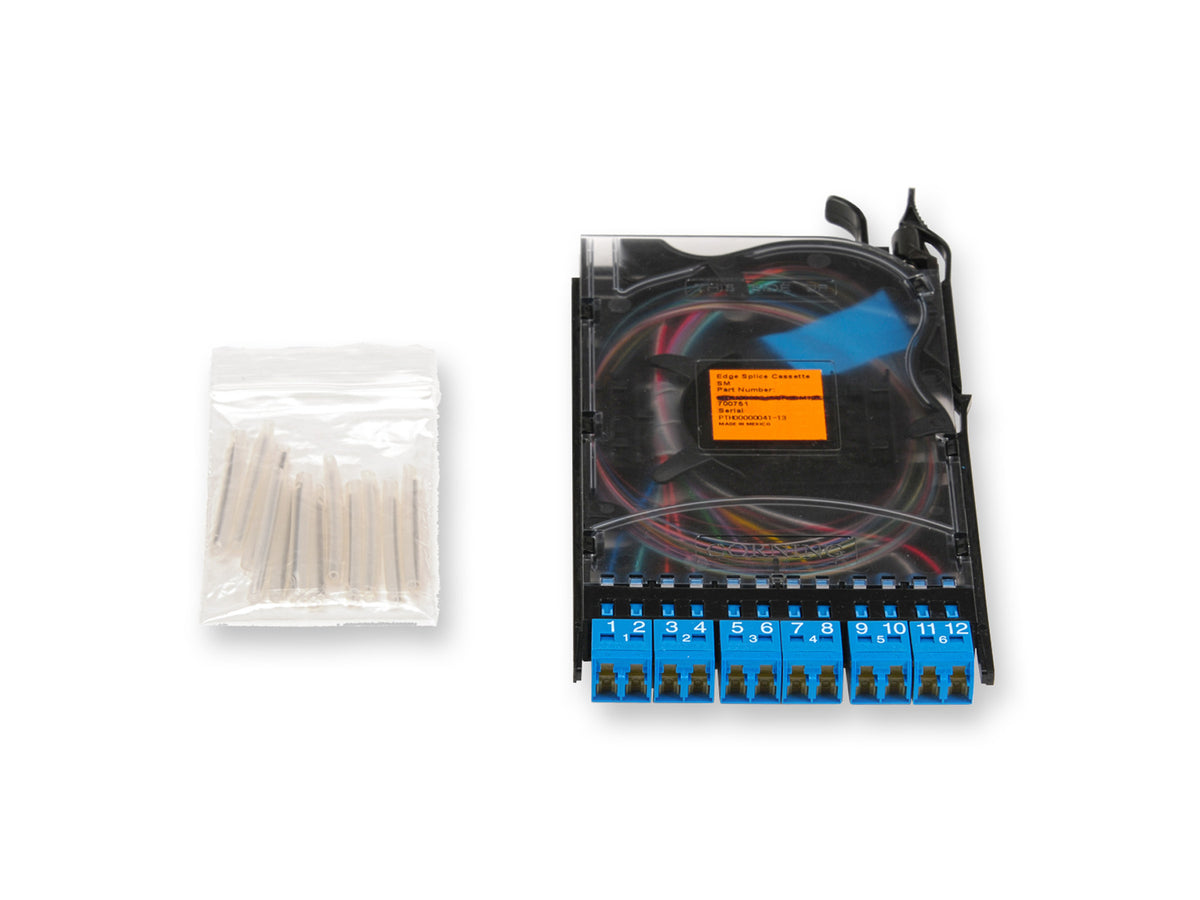

Corning EDGE-CS12-AE-P00RJ | EDGE Splice Cassette 12 F, LC duplex, Single-mode UPC, Ribbon, Straight Through
Specifications
Specifications
Corning - EDGE-CS12-AE-P00RJ - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CS12-AE-P00RJ - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CS12-AE-P00RJ |
| EAN Code | 4056418147147 |
| Product Type | Cassettes |
| Fiber Category | Single-mode (OS2) |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -20 °C to 60 °C (-4 °F to 140 °F ) |
| Temperature Range, Storage | -25 °C to 70 °C (-13 °F to 158 °F ) |
| Design | - |
| Fiber Count | 12 |
| Adapter Color Front | Blue |
| Adapter Type Front | Shuttered LC |
| Housing Type | Cassettes |
| Panel or Module Type | EDGE |
| Fiber Capacity | 12 |
| Number of Adapters per Panel | 6 |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.25 dB |
| Pigtail reflectance | -55 dB |
| Connector Specs | - |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Module Capacity | 12 |
| Width | 90 mm (3.54 in) |
| Depth | 176 mm (6.93 in) |
| Units per Delivery | 1/1" |
| Adapter Type | Pigtailed Splice Cassette |
| Side A | LC Duplex |
| Fiber Count | 12 |
| Fiber Type | Singlemode (OS2) |
| Color | Blue |
