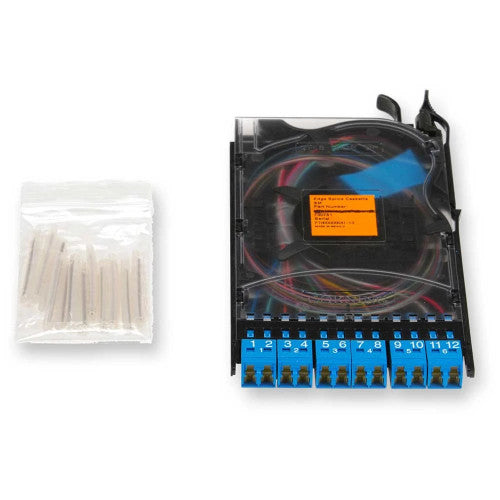

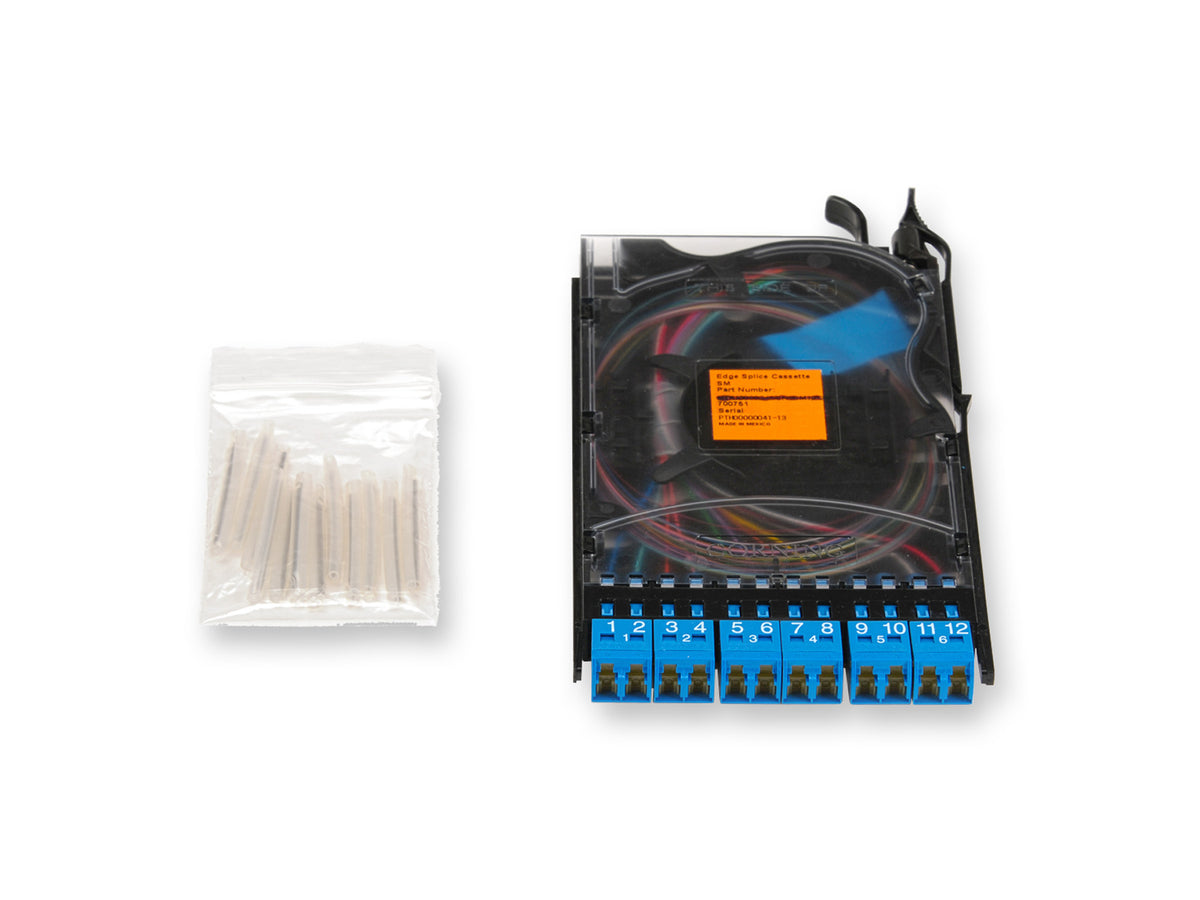

Corning EDGE-CS12-AE-P00RU | EDGE Splice Cassette
Regular price
$749.70
Unit price
Brand: Corning
|
SKU:
601819
Regular price
$749.70
Unit price
Description
Description
Corning EDGE-CS12-AE-P00RU | EDGE Splice Cassette 12 F, LC duplex, Single-mode UPC, Ribbon, Universal
Corning - EDGE-CS12-AE-P00RU - Features
- Shuttered Adapters Create One-Hand Operation While Eliminating Need to Keep up with Dust Caps
- Modules Connectors Mate Directly to Trunk Eliminates One MTP Connector Pair for Reduced Overall Link Loss
- Splicing with Edge Cassette Eliminates the Need for a Separate Splice Tray Within the Housing
Specifications
Specifications
Corning - EDGE-CS12-AE-P00RU - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CS12-AE-P00RU - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CS12-AE-P00RU |
| EAN Code | 4056418147130 |
| Splice option | Yes |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -20 °C to 60 °C (-4 °F to 140 °F ) |
| Design | - |
| Fiber Count | 12 |
| Splice Tray Type | EDGE splice cassette with organizers |
| Number of pigtails | 12 |
| Number of Splice Trays | 1 |
| Pigtail Length | 1.5 m (4.92 ft) |
| Adapter Color Front | Blue |
| Adapter Type Front | Shuttered LC Duplex |
| Polish | UPC |
| Housing Type | Cassettes |
| Number of pigtail bundles | 1 |
| Panel or Module Type | EDGE |
| Pigtail Type | Universal color-coded for buffers and fibers |
| Splice Protectors Type | Heat Shrink Splice Protection |
| Fiber Capacity | 12 |
| Number of Splice Protectors | 12 |
| Number of Adapters per Panel | 6 |
| Design - Adapter | - |
| Housing Color | Blue |
| Housing Material | Composite |
| Keyed adapter | No |
| Shuttered adapter | Yes |
| Insert | Ceramic |
| Optical Specification - Hardware | - |
| Pigtail reflectance | -55 dB |
| Specifications - Connector A | - |
| Connector Type | LC Duplex |
| Polish | UPC |
| Ferrule Material | Ceramic |
| Ordering Information | - |
| Weight | 0.081 kg |
| Shipping Weight | 0.1268 kg |
| Module Capacity | 12 |
| Units per Delivery | 1/1" |
