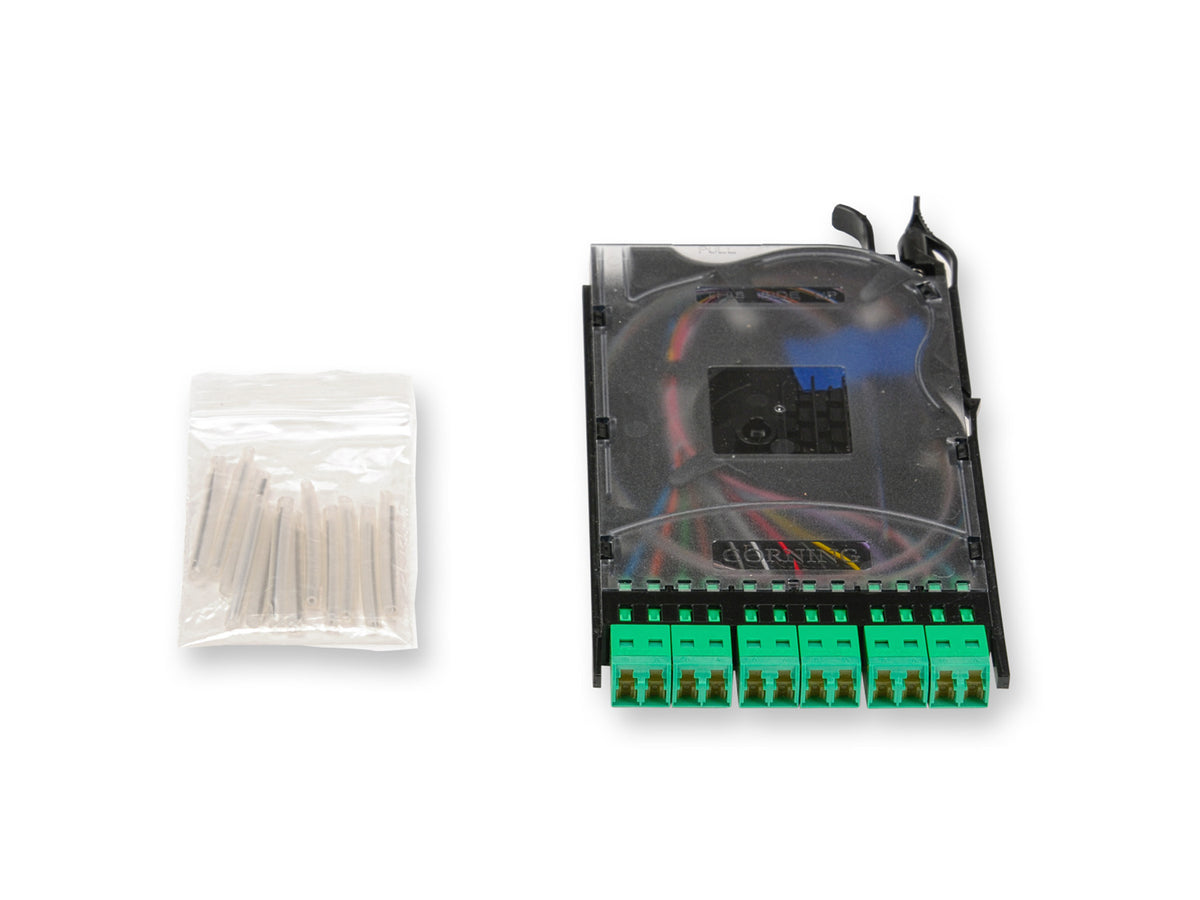

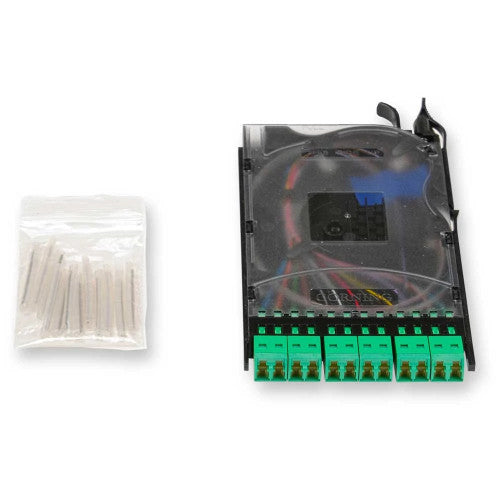

Corning EDGE-CS12-AF-P00RE | EDGE Splice Cassette
Regular price
$896.07
Unit price
Brand: Corning
|
SKU:
550406
Regular price
$896.07
Unit price
Description
Description
Corning EDGE-CS12-AF-P00RE | EDGE Splice Cassette 12 F, LC duplex, Single-mode APC, single-fiber
Specifications
Specifications
Corning - EDGE-CS12-AF-P00RE - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Splices
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE-CS12-AF-P00RE - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-CS12-AF-P00RE |
| EAN Code | 4056418147123 |
| Product Type | Cassettes |
| Fiber Category | Single-mode (OS2) |
| Splice option | Yes |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -20 °C to 60 °C (-4 °F to 140 °F ) |
| Temperature Range, Storage | -25 °C to 70 °C (-13 °F to 158 °F ) |
| Design | - |
| Fiber Count | 12 |
| Splice Tray Type | EDGE splice cassette with organizers |
| Number of pigtails | 12 |
| Number of Splice Trays | 1 |
| Pigtail Length | 1.5 m (4.92 ft) |
| Adapter Color Front | Green |
| Adapter Type Front | Shuttered LC |
| Housing Type | Cassettes |
| Number of pigtail bundles | 1 |
| Panel or Module Type | EDGE |
| Pigtail Type | Telcordia color-coded for buffers and fibers |
| Splice Protectors Type | Heat Shrink Splice Protection |
| Fiber Capacity | 12 |
| Number of Splice Protectors | 12 |
| Number of Adapters per Panel | 6 |
| Cable Design | - |
| Fiber Count | 12 |
| Design - Adapter | - |
| Housing Color | Green |
| Housing Material | Composite |
| Keyed adapter | No |
| Shuttered adapter | Yes |
| Insert | Ceramic |
| Optical Specification - Hardware | - |
| Module Insertion Loss, Max | 0.5 dB |
| Pigtail reflectance | -58 dB |
| Connector Specs | - |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Polish | APC |
| Specifications - Connector A | - |
| Ferrule Material | Ceramic |
| Dimensions | - |
| Height | 12 mm (0.47 in) |
| Ordering Information | - |
| Weight | 0.08 kg |
| Shipping Weight | 0.13 kg |
| Module Capacity | 12 |
| Width | 90 mm (3.54 in) |
| Depth | 176 mm (6.93 in) |
| Units per Delivery | 1/1" |
