Brand: Corning
|
SKU:
9811454

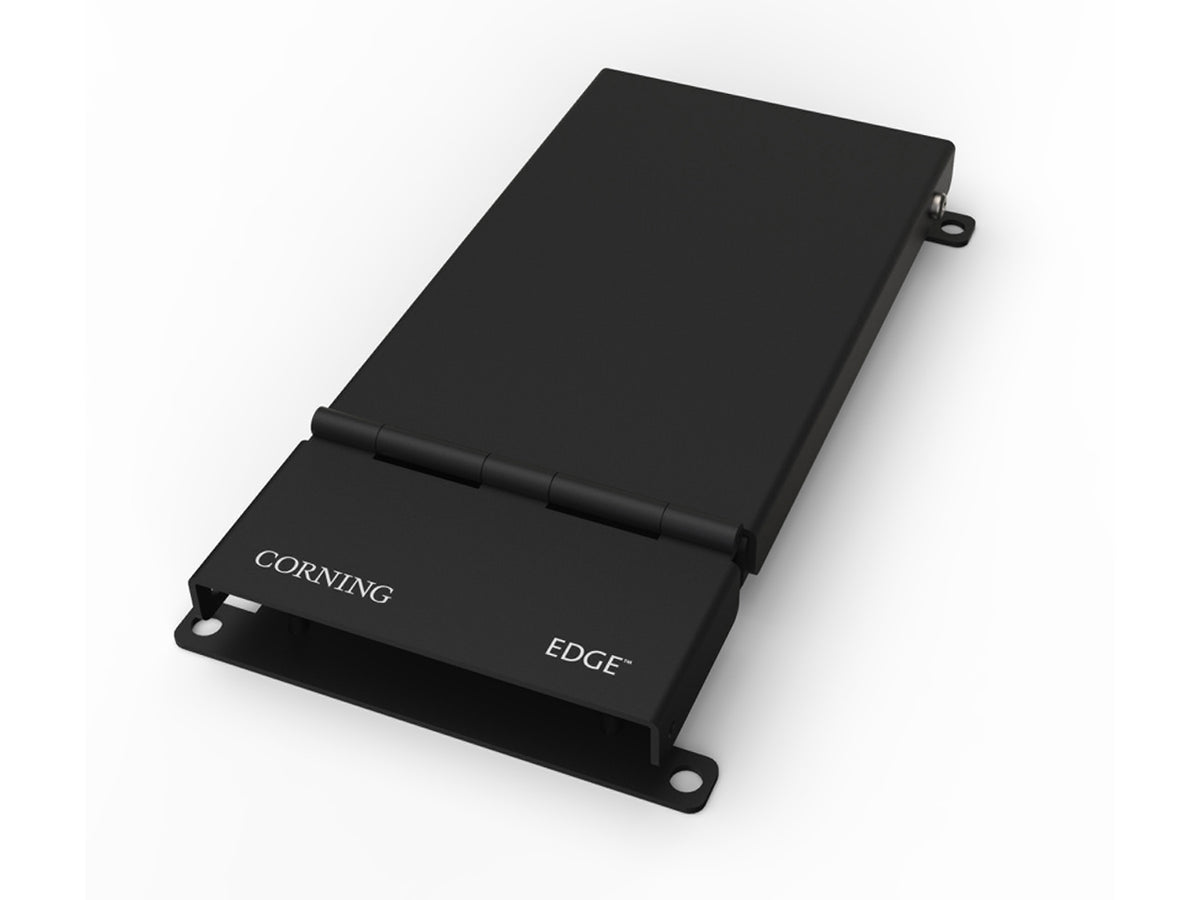

Corning EDGE-SMH-SPLC | EDGE Single Module Housing
Regular price
$220.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning EDGE-SMH-SPLC | EDGE Single Module Housing
Regular price
$220.95
Unit price
Description
Description
Corning EDGE-SMH-SPLC | EDGE Single Module Housing Single-Cassette
Single-module housing for pigtail splicing is a compact option for storage, protection and termination of optical fiber cables in applications with minimal mounting space.
Specifications
Specifications
Corning - EDGE-SMH-SPLC - Product Categories
- Shop by Manufacturer/Corning
- DataComm
- Fiber Optic Hardware
- Fiber Optic Enclosures
- Fiber Optic Hardware
- Housings
Corning - EDGE-SMH-SPLC - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE-SMH-SPLC |
| Lockable | Yes |
| Mounting Type | Wall-Mountable, Floor mount |
| Application | Data Center, Data Center LAN/SAN |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Number of Modules | 1 |
| Panel or Cassette Type | EDGE |
| Panel or Module Type | EDGE |
| Splice Tray Options | EDGE Pigtailed Splice Cassettes |
| Fiber Capacity | 12 |
| Cable Design | - |
| Weight | 0.14 kg/km (0.09 lb/1000 ft) |
| Design - Adapter | - |
| Housing Color | Black |
| Dimensions | - |
| Height | 114 mm (4.49 in) |
| Width | 21 mm (0.83 in) |
| Depth | 204 mm (8.03 in) |
| Shipping Dimensions | - |
| Height | 105 mm (4.13 in) |
| Width | 133 mm (5.24 in) |
| Depth | 305 mm (12.01 in) |
| Ordering Information | - |
| Weight | 1 kg |
| Package Contents | EDGE Single Module Housing and SRP |
| Shipping Weight | 0.45 kg |
| Width | 114 mm (4.49 in) |
| Units per Delivery | 1/1" |
