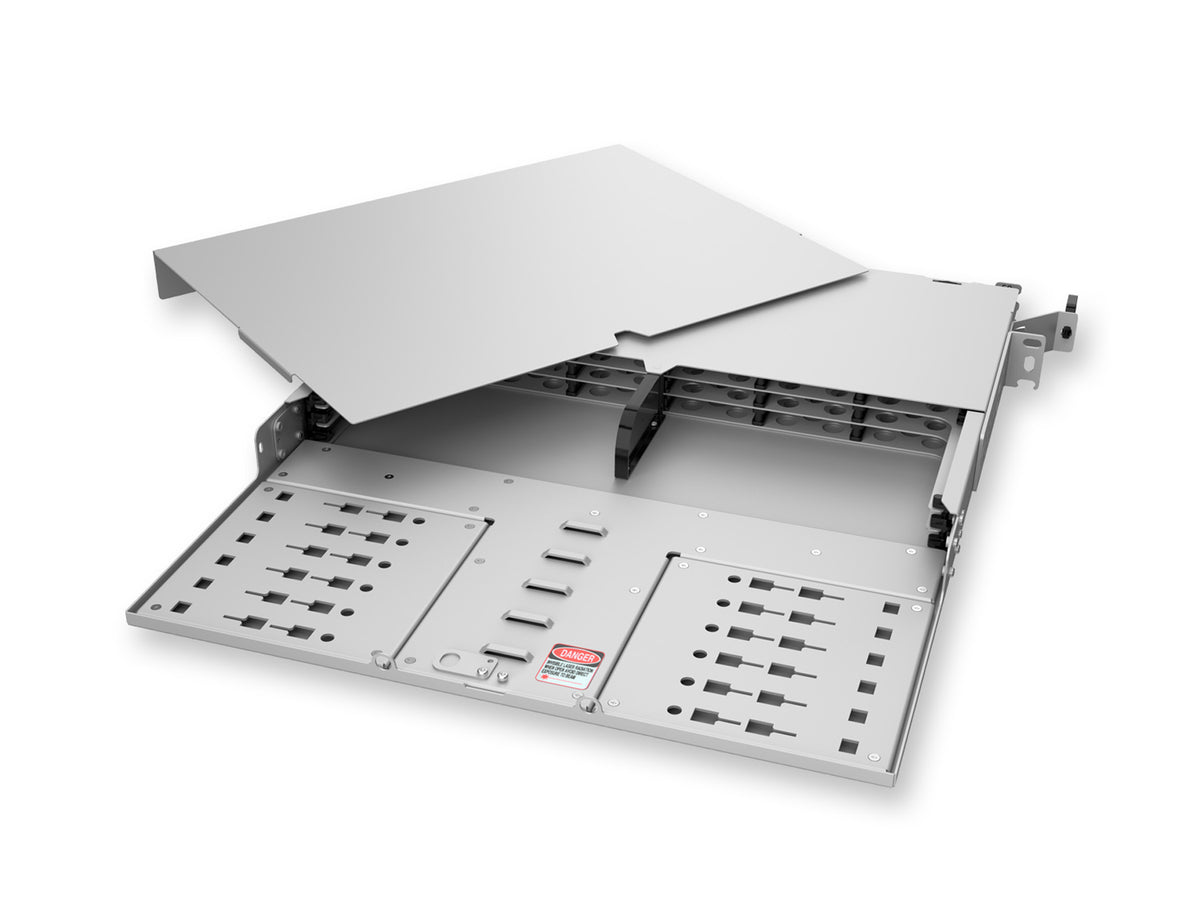

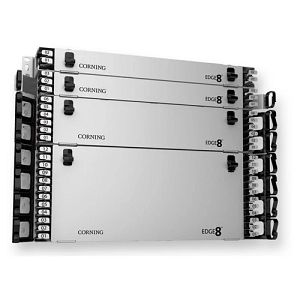

Corning EDGE8-01U-SP | EDGE8 Housings
Regular price
$903.83
Unit price
Brand: Corning
|
SKU:
660259
Regular price
$903.83
Unit price
Description
Description
Corning EDGE8-01U-SP | EDGE8 Housings 1 rack unit, holds up to 18 EDGE8 modules or panels
EDGE8 Fiber Optic Hardware, (18) EDGE8 Modules or Panels, White, Rack Mount, Rack Units: 1
Corning - EDGE8-01U-SP - Features
- Smaller footprint design with Base-8 components in housings
- Greater flexibility with six open slots per tray, for easy deployment of EDGE8 modules and panels
- Key identifiers
- EDGE8 printed on housing for easy identification as a Base-8 component
- Sliding drawer-style hardware with integrated cable routing guides and port identification
- Optimized finger access to connectors combined with industry leading port density
- Integrated strain-relief plate can rotate 90º
- Allows for rear cable entry direction, as well as the traditional side cable entry
- Removable top covers on the 1U and 2U housings
- Provides easier access to modules and panels
- Quick mounting system
- Enables one-person installation and depth adjustment of the housing in the rack
Specifications
Specifications
Corning - EDGE8-01U-SP - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Enclosures
- DataComm
- Fiber Optic Hardware
- Fiber Optic Enclosures
- Fiber Optic Hardware
- Housings
Corning - EDGE8-01U-SP - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE8-01U-SP |
| EAN Code | 4056418139777 |
| Product Type | Fiber Optic Hardware |
| Mounting Type | Rack 19-in |
| Application | Data Center |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Number of Modules | 18 |
| Housing Type | EDGE |
| Number of Panels per Housing | 18 |
| Panel or Module Type | EDGE8 |
| Fiber Capacity | 144 |
| Design - Adapter | - |
| Housing Color | Silver |
| Connector Specs | - |
| Housing Color | Silver |
| Dimensions | - |
| Height | 44 mm (1.73 in) |
| Depth | 561 mm (22.09 in) |
| Shipping Dimensions | - |
| Height | 197 mm (7.76 in) |
| Width | 581 mm (22.87 in) |
| Depth | 667 mm (26.26 in) |
| Ordering Information | - |
| Package Contents | EDGE8 Housing 1U; Quick Start Guide, #12-24 and #10-32 mounting screws, Cage Nut Mounting Kit, Velcro Strap, Fiber Optic Warning Label |
| Shipping Weight | 8.2 kg |
| Width | 432 mm (17.01 in) |
| Height Unit | 1 U |
| Units per Delivery | 1/1" |
| Trunk Capacity | 12 (size 1 or 2) |
