Corning EDGE8-CP16-V1 | EDGE8 Adapter Panels, MTP
Regular price
$94.44
Unit price
Brand: Corning
|
SKU:
675001
Regular price
$94.44
Unit price
Description
Description

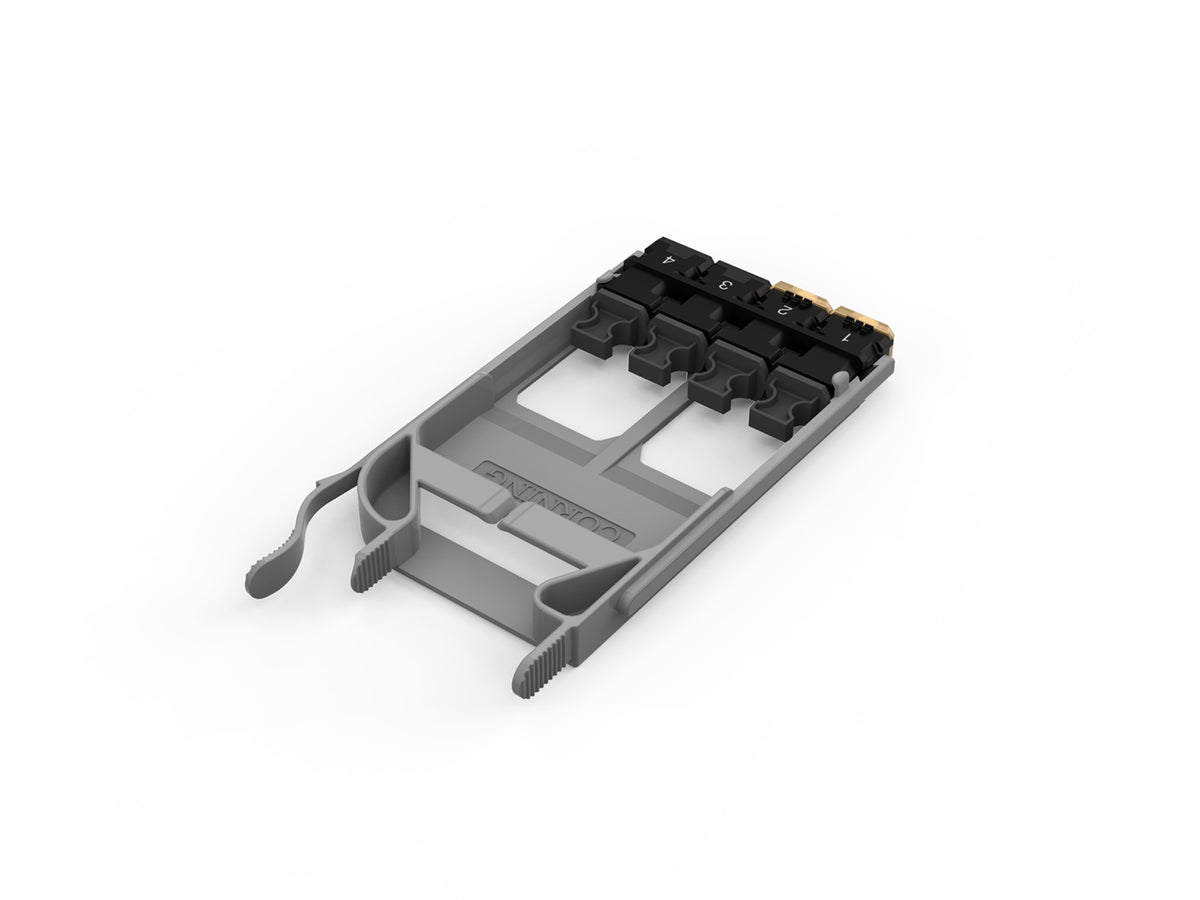

Corning EDGE8-CP16-V1 | EDGE8 Adapter Panels, MTP 16F, RPS, 2 port panel with 2 black adapters
Corning - EDGE8-CP16-V1 - Features
- Installation
- Can be installed or removed from the front or rear of a housing
- Key identifiers
- Gray color for easy identification as a Base-8 component
- Network upgrades
- Facilitate in easy-open containers
- 32-fiber Panel
- Provide MTP connection points between trunks and harness or extender trunks
- 12 color-coded mechanical key positions
- Prevents mismatch of networks
- Keyed and non-keyed connectors and adapters
- Provide security in network panel
- Adapter options
- Adapters are colored to provide network segmentation
Specifications
Specifications
Corning - EDGE8-CP16-V1 - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EDGE8-CP16-V1 - Specifications
| General Specifications | - |
|---|---|
| Product Number | EDGE8-CP16-V1 |
| EAN Code | 4056418139579 |
| Product Type | Panels |
| Fiber Category | Single-mode (OS2) |
| Application | Data Center |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 16 |
| Adapter Type Back | MTP |
| Number of MTP Ports | 2 |
| Adapter Color Back | Black |
| Adapter Type Master Level | MTP MPO |
| Adapter Color Front | Black |
| Housing Type | FBT |
| Number of Adapters | 2 |
| Cable Design | - |
| Fiber Count | 16 |
| Dimensions | - |
| Height | 11.8 mm (0.46 in) |
| Width | 60.9 mm (2.4 in) |
| Depth | 1259 mm (49.57 in) |
| Shipping Dimensions | - |
| Height | 19 mm (0.75 in) |
| Width | 178 mm (7.01 in) |
| Depth | 121 mm (4.76 in) |
| Ordering Information | - |
| Weight | 1 kg |
| Shipping Weight | 2 kg |
| Units per Delivery | 1/1" |
