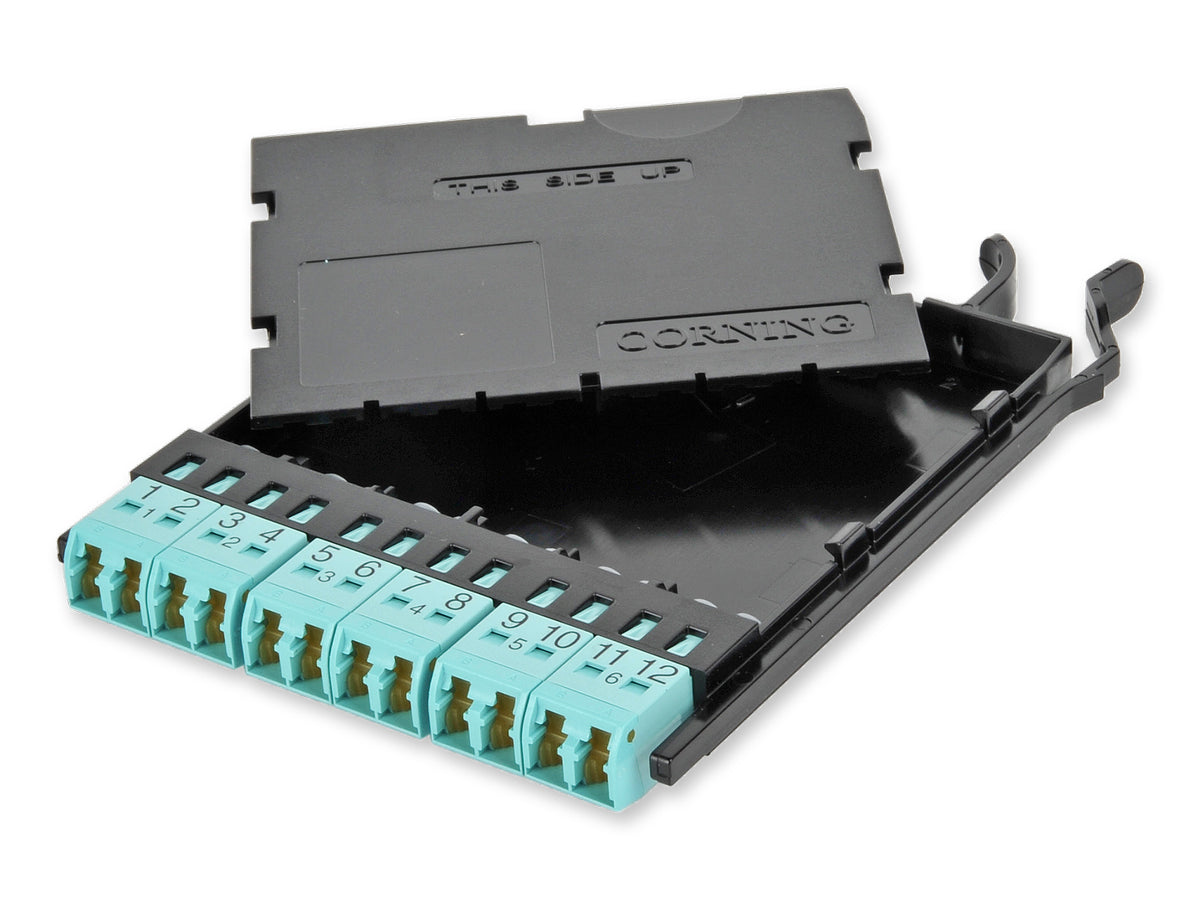

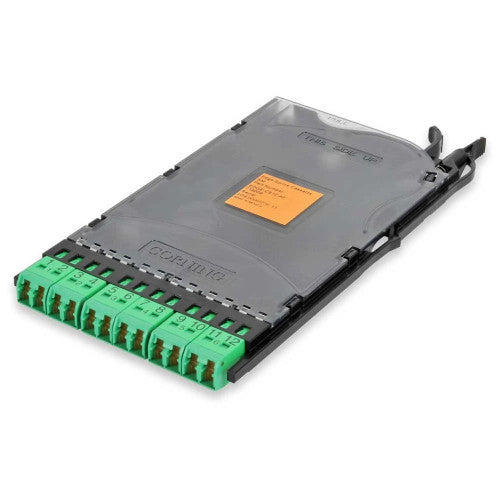

Corning EMOD-CP12-AD | EDGE Adapter Panel, LC Duplex
Regular price
$175.45
Unit price
Brand: Corning
|
SKU:
538586
Regular price
$175.45
Unit price
Description
Description
Corning EMOD-CP12-AD | EDGE Adapter Panel, LC Duplex 12 fibres, Multimode (OM3/OM4)
Corning - EMOD-CP12-AD - Features
- Installation
- Can be installed or removed from the front or rear of a housing
- Packaging
- Packaged in easy-open containers
Specifications
Specifications
Corning - EMOD-CP12-AD - Product Categories
- Shop by Manufacturer/Corning
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - EMOD-CP12-AD - Specifications
| General Specifications | - |
|---|---|
| Product Number | EMOD-CP12-AD |
| Product Type | Panels and Modules |
| Fiber Category | 50 µm MM (OM3/OM4) |
| Application | Data Center LAN/SAN, Data Center |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Design | - |
| Fiber Count | 12 |
| Housing Material | Composite |
| Number of Adapters per Panel | 6 |
| Design - Adapter | - |
| Housing Material | Composite |
| Adapter Style | Shuttered LC |
| Adapter Type | LC Duplex |
| Connector Specs | - |
| Connector Type | LC Duplex |
| Housing Color | Black |
| Housing Material | Composite |
| Dimensions | - |
| Length | 90 mm (3.54 in) |
| Height | 12 mm (0.47 in) |
| Depth | 124 mm (4.88 in) |
| Shipping Dimensions | - |
| Height | 200 mm (7.87 in) |
| Width | 130 mm (5.12 in) |
| Depth | 250 mm (9.84 in) |
| Ordering Information | - |
| Weight | 0.028 kg |
| Shipping Weight | 0.715 kg |
| Units per Delivery | 1/1" |
