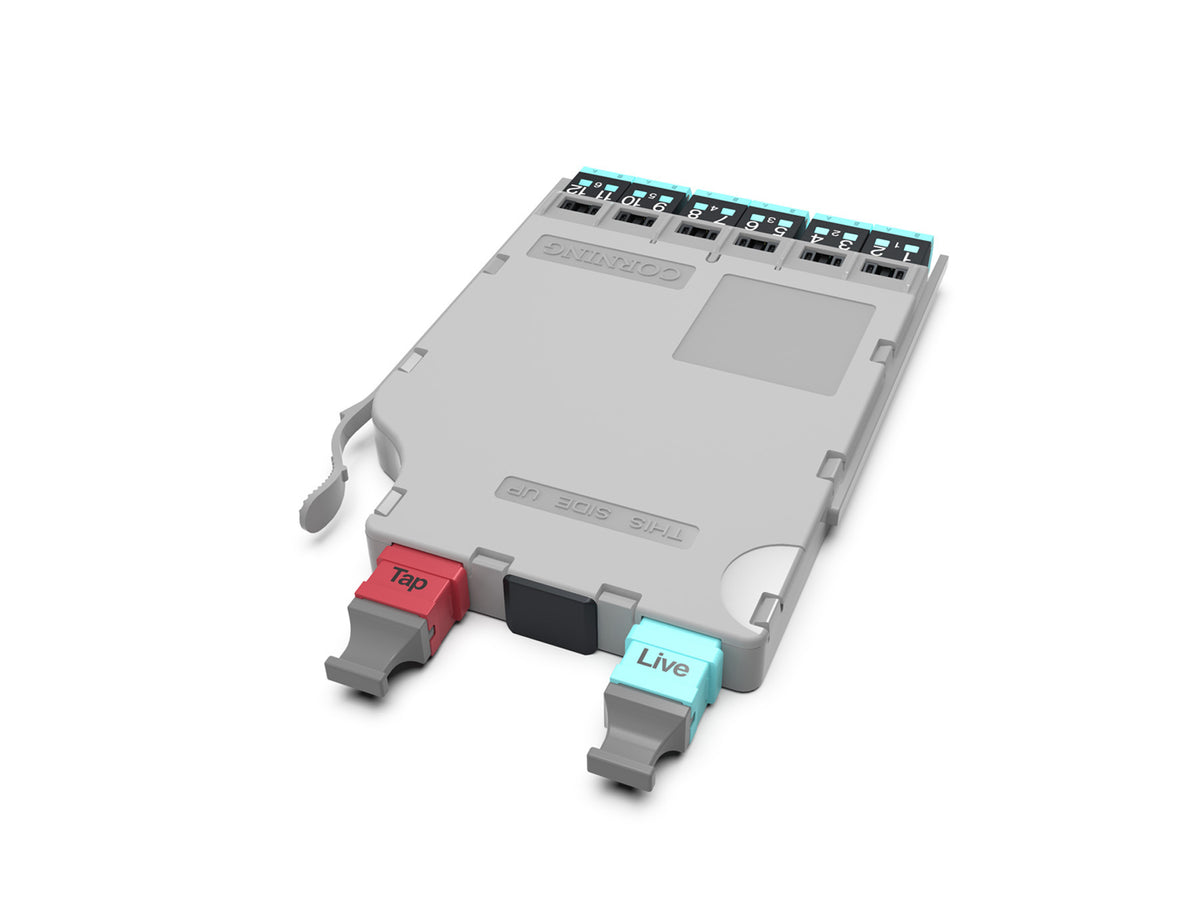

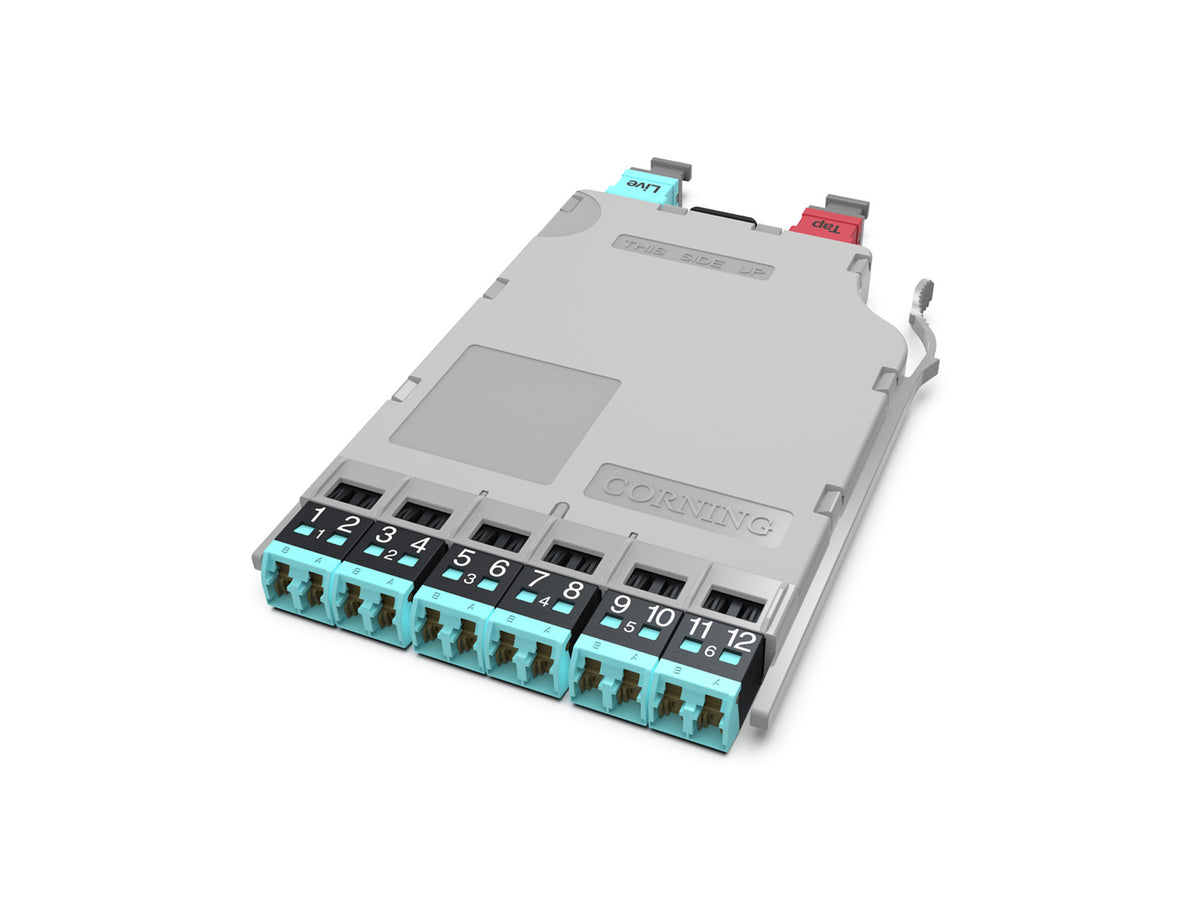

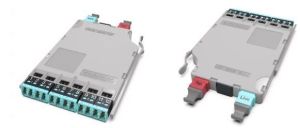

Corning ETM-7B-Q | EDGE Tap Module
Regular price
$4,101.93
Unit price
Brand: Corning
|
SKU:
493504
Regular price
$4,101.93
Unit price
Description
Description
Corning ETM-7B-Q | EDGE Tap Module 50 µm MM (OM4), 70/30 split ratio (live/tap), 12 F LC duplex ports, one pinned MTP adapter labeled LIVE, one pinned red MTP adapter labeled TAP, enables six monitored ports
Corning - ETM-7B-Q - Features
- Designed for Duplex based infrastructure solutions
- Utilizes advanced splitter technology
- Maintains equal modal power distribution, reducing insertion loss for increased link reach
- EDGE Solutions-based footprint
Specifications
Specifications
Corning - ETM-7B-Q - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panel Connector Adapters, Loaded
- Fiber Optic Hardware
- Panels Modules and Cassettes
Corning - ETM-7B-Q - Specifications
| General Specifications | - |
|---|---|
| Product Number | ETM-7B-Q |
| EAN Code | 4056418149943 |
| Product Type | Modules |
| Fiber Category | 50 µm MM (OM4) |
| Application | Data Center LAN/SAN |
| Design | - |
| Fiber Count | 12 |
| Adapter Type Back | MTP |
| Adapter Color Back | Aqua / Red |
| Adapter Color Front | Aqua |
| Adapter Type Front | Shuttered LC |
| Housing Type | Modules |
| Number of Adapters per Panel | 6 |
| Cable Design | - |
| Fiber Count | 12 |
| Polarity | Universal |
| Optical Specification - Hardware | - |
| Split Ratio Live/Tap | 70/30 |
| Splitter Loss for Tap Modules | 1.8 dB LIVE / 6.6 dB TAP |
| Fiber Category | 50 µm MM (OM4) |
| Connector Specs | - |
| Connector Type | LC |
| Ferrule Material | Ceramic |
| Specifications - Connector A | - |
| Connector Type | LC Duplex |
| Ferrule Material | Ceramic |
| Specifications - Connector B | - |
| Connector Type | MTP (pinned) |
| Ferrule Material | Composite |
| Ordering Information | - |
| Units per Delivery | 1/1" |
| Weight | 1 kg |
| Adapter Type | Tap Module |
| Number of Adapters | (6) Adapters |
| Side A | (12) F LC Duplex Ports |
| Side B | (2) Pinned MTP Adapters (LIVE, TAP) |
| Fiber Count | 12 |
| Fiber Type | 50 ? MM (OM4) |
| Connector Material | Ceramic |
| Color | Gray Housing, Aqua/Red Adapters |
