Brand: Corning | SKU: 903687

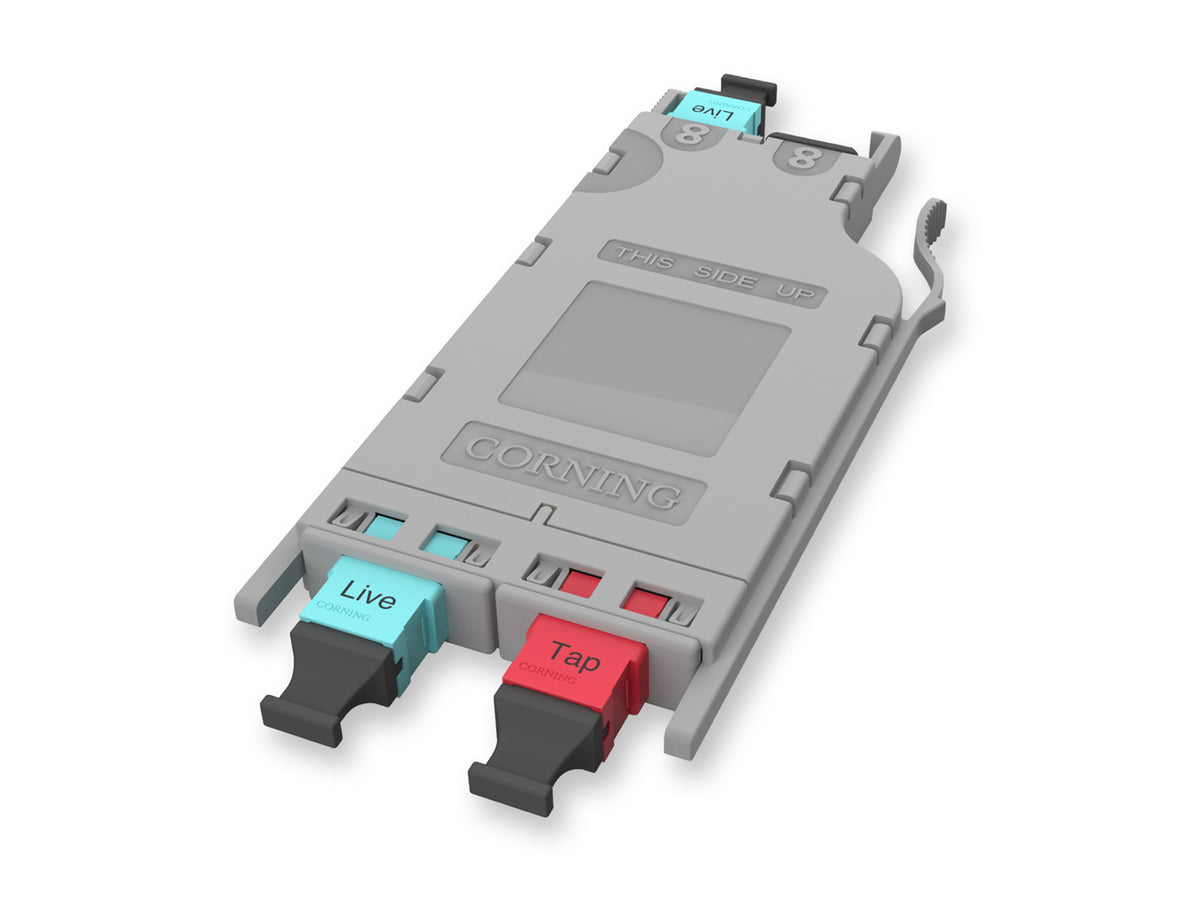

Corning ETM8-50C-Q | EDGE8 Tap Module

Name: Corning ETM8-50C-Q | EDGE8 Tap Module
Brand: Anixter
SKU: 903687
Price: 4142.95 USD
Availability: InStock

$4,142.95

Description

Corning ETM8-50C-Q | EDGE8 Tap Module 4-Port; Conf C (MTP-MTP); OM4; 50/50 Split Ratio

Shuttered adapters
Creates one-hand operation while eliminating the need to remove and store dust caps
VFL-compatible shutters
Decreases time needed to test and troubleshoot a link
Key identifiers
8 on module and slider for easy identification as a Base-8 component
Rear-loading capability
Decreases the time to prepare and install modules into fiber housings
High density
Low insertion loss performance
Improved performance specs allow for more mated pairs and/or longer link distances
Universal wiring
Decreases complexity and risks associated with managing polarity during moves, adds and changes

General Specifications	-
Product Number	ETM8-50C-Q
EAN Code	4056418344485
Product Type	Panels and Modules
Fiber Category	50 µm MM (OM4)
Application	Data Center LAN/SAN
Standards	-
RoHS	Free of hazardous substances according to RoHS 2011/65/EU
Design	-
Fiber Count	8
Adapter Type Back	MTP
Adapter Color Back	Aqua (non-pinned)
Adapter Color Front	Aqua (pinned) / Red (non-pinned)
Adapter Type Front	MTP
Housing Type	Panels and Modules
Panel or Module Type	EDGE8
Number of Adapters per Panel	2
Cable Design	-
Polarity	Universal
Optical Specification - Hardware	-
Split Ratio Live/Tap	50/50
Wavelengths	850 nm / 1300 nm
Fiber Category	50 µm MM (OM4)
Dimensions	-
Height	1.377 mm (0.05 in)
Ordering Information	-
Package Contents	Modules packaged in individual blister packs.
Width	133 mm (5.24 in)
Depth	1181 mm (46.5 in)
Units per Delivery	1/1"
Weight	9 kg
