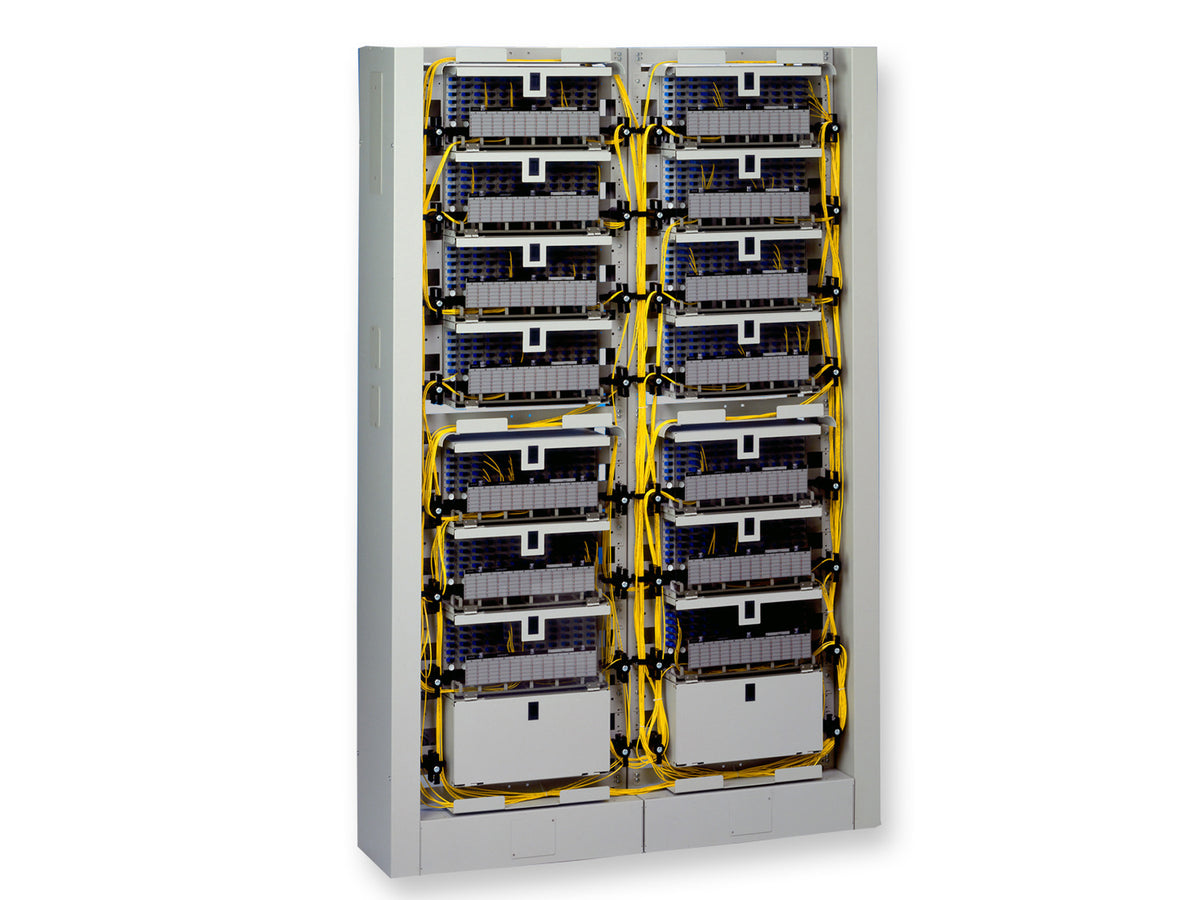

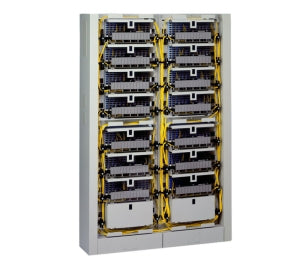

Corning FDC-CMH-024 | FDC Unit Connector Housing
Regular price
$602.58
Unit price
Brand: Corning
|
SKU:
135169
Regular price
$602.58
Unit price
Description
Description
Corning FDC-CMH-024 | FDC Unit Connector Housing Accepts (4) 6-in FDC Connector panels or modules or eight jumper storage modules
Corning - FDC-CMH-024 - Features
- 19- or 23-in rack-mount option or wall-mountable with optional kit
- Front and rear door slide latches for easier access
- Used as a component of Corning's fiber distribution frame
- Flipcard for easier record keeping
- Field connectorization or pigtail splicing in conjunction with splice module housings
- Larger routing guides for better jumper management
- Suitable for loose tube, tight-buffered and ribbon cables
- More open design for easier connector access
- Frontal projection of 4.25 in (10.8 cm) or flush-mounted with an optional kit
- Smoke-tinted front door, removable hinged front and rear doors
- Accepts Corning FDC unit connector panels, jumper storage modules and connector modules
Specifications
Specifications
Corning - FDC-CMH-024 - Product Categories
- Shop by Manufacturer/Corning
- Data Communications and Networking
- Copper and Fiber Connectivity
- Fiber Optic Termination and Splicing
- Fiber Optic Hardware
- Accessories
Corning - FDC-CMH-024 - Specifications
| General Specifications | - |
|---|---|
| Product Number | FDC-CMH-024 |
| EAN Code | 4056418193632 |
| Product Type | Rack-Mountable Hardware |
| Accessory Type | FDC |
| Mounting Type | Rack 19-in, Rack 23-in, Wall-Mountable |
| Design | - |
| Housing Type | FDC |
| Panel or Module Type | FDC |
| Design - Adapter | - |
| Housing Color | Beige |
| Ordering Information | - |
| Shipping Weight | 6.3 kg |
| Width | 432 cm |
| Depth | 279 cm |
| Height | 133 cm |
| Units per Delivery | 1/1" |
| Type | Wall-Mountable Splice Housing |
| Size | HxWxD: 5.2 x 17 x 11 in. |
| Mounting | Rack 19 in., Rack 23 in. |
| Color | Beige |
