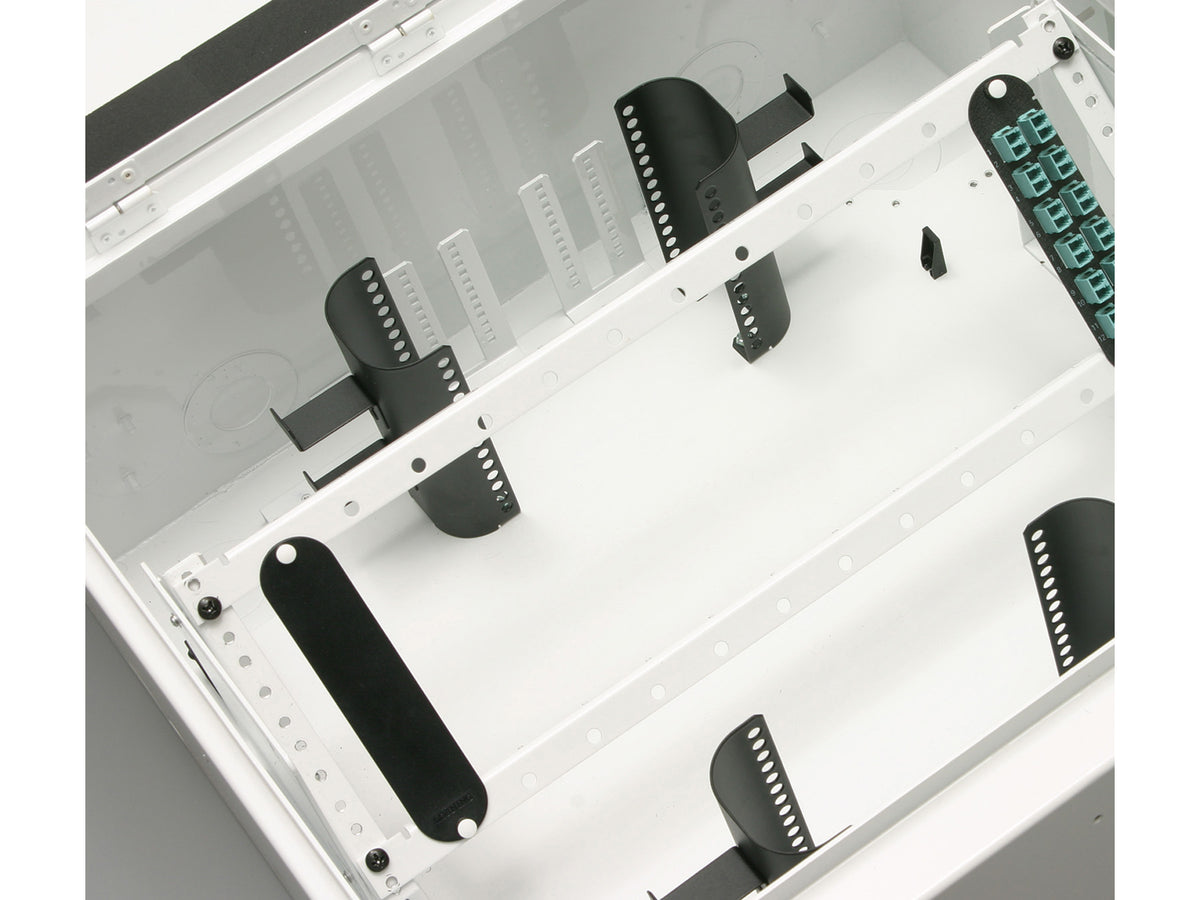

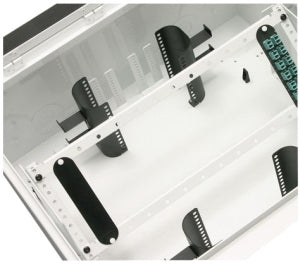

Corning FZB-04U | Fiber Zone Box
Regular price
$1,229.47
Unit price
Brand: Corning
|
SKU:
308958
Regular price
$1,229.47
Unit price
Description
Description
Corning FZB-04U | Fiber Zone Box 4 rack units, holds 12 CCH panels or modules
Corning - FZB-04U - Features
- Removable backplate
- Eases installation
- Robust lock
- Additional security
- UL-Listed to United States and Canadian standards, NEMA 1, 2, 5, 12K rated
- Safety
- Includes 4U of 19-in rack space
- Copper and fiber options
- Multiposition bulkhead
- Dramatically increases ease of use in subfloor/overhead applications
Specifications
Specifications
Corning - FZB-04U - Product Categories
- Shop by Manufacturer/Corning
- Hardware
- Racks And Cabinets
- Cabinets
- Data Communications and Networking
- Patch Panels and Enclosures
- Fiber Optic Patch Panels - Unloaded
- Fiber Optic Hardware
- Housings
Corning - FZB-04U - Specifications
| General Specifications | - |
|---|---|
| Product Number | FZB-04U |
| EAN Code | 4056418201771 |
| Product Type | Wall-Mountable Hardware |
| Mounting Type | Wall-Mountable, Ceiling mount, Floor mount |
| Application | Data Center, Enterprise Networks |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | UL Listed to United States and Canadian safety standards, NEMA, 1, 2, 5, 12K rated |
| Design | - |
| Number of Modules | 12 |
| Housing Type | FZB |
| Number of Panels per Housing | 12 |
| Panel or Module Type | CCH |
| Splice Tray Options | Up to 12 0.2-in or 6 0.4-in category S or category R splice trays |
| Fiber Capacity | 288 |
| Design - Adapter | - |
| Housing Color | White |
| Connector Specs | - |
| Housing Color | White |
| Dimensions | - |
| Height | 54 cm |
| Width | 54 cm |
| Depth | 216 cm |
| Ordering Information | - |
| Package Contents | Housing; installation guide; label, unit ID; label, port identification for 12 panels; 12 blank panels; 12 tie wraps, 1/8 x 4, white; edge grommet, nylon, 12-in; 32 screws, #6-32 x 0.25-in; 2 Universal Cable Clamp (UCC) Kits with 5 cable inserts; 2 brackets for mounting UCC clamp; 2 fan-out brackets; 4 wall-/floor-mounting brackets; 2 trim plates, floor, FZB-04U; 6 6-32 x .25 Phillips; ground bar EM4250-3550; 2 screws, #8-32 and 2 lock washers, #8 |
| Shipping Weight | 6.8 kg |
| Width | 540 mm (21.26 in) |
| Units per Delivery | 1/1" |
| Type | Fiber Zone Box |
| Mounting | Wall, Ceiling, Floor Mount |
| Outlet Type | Adapter Modules |
| Capacity - Adapters | 12 |
| Dimensions | WxHxD: 21.25 x 21.25 x 8.5 in. (539.8 x 539.8 x 215.9mm) |
| Color | White |
