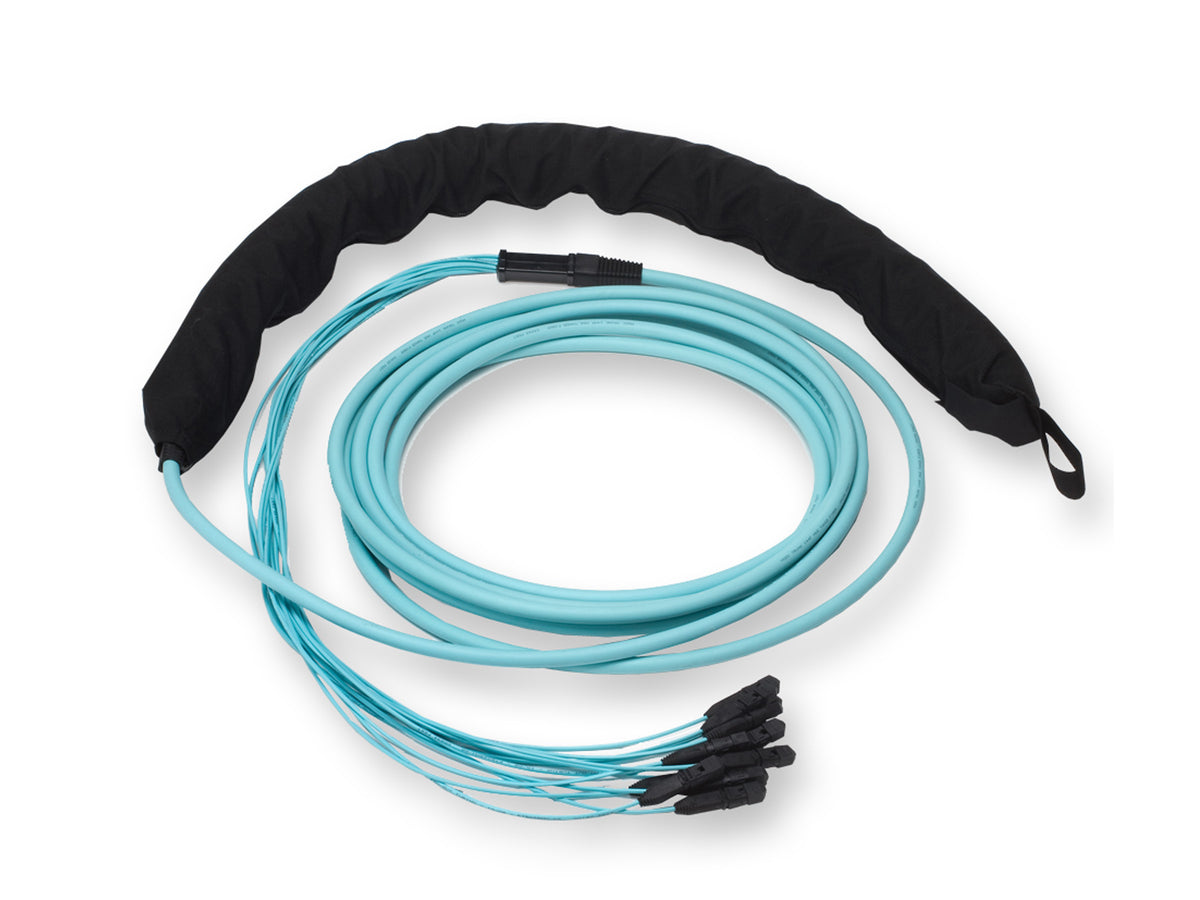

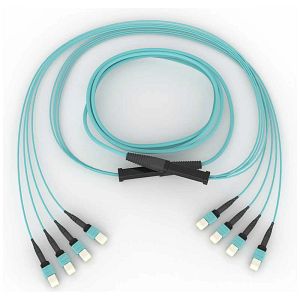

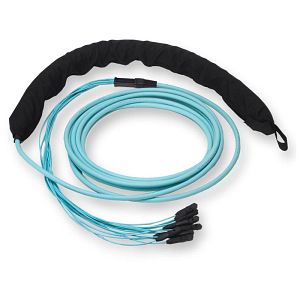

Corning G757524TPNDDU120F | EDGE MTP Trunk
Regular price
$2,653.96
Unit price
Brand: Corning
|
SKU:
398525
Regular price
$2,653.96
Unit price
Description
Description
Corning G757524TPNDDU120F | EDGE MTP Trunk 50 µm multimode (OM3), MTP Connector to MTP Connector, 24 F, with 33/33 inch legs, pulling grip one side, 120 ft
Corning - G757524TPNDDU120F - Features
- Snap-in strain-relief clips
- Provide easier cable management
- Small outer diameter
- Improves cable tray fill ratio and allows for imported airflow
- Low-loss connectivity
- Enables system design flexibility
- Bend-improved fibre
- Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
- Corning CleanAdvantage technology and optimised dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
- Snap-in strain-relief clips
- Provide easier cable management Small outer diameter
- Improves the cable tray fill ratio and allows for improved airflow Low-loss connectivity
- Enables system design flexibility Bend-improved fiber
- Allows tighter cable bendsor slack storage and routing, less risk of downtime due to pinched or bent cables Corning CleanAdvantage technology and optimized dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - G757524TPNDDU120F - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - G757524TPNDDU120F - Specifications
| General Specifications | - |
|---|---|
| Product Number | G757524TPNDDU120F |
| EAN Code | 4056418180038 |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | 50 µm MM (OM3) |
| Cable Assembly Type | EDGE Trunk |
| Cable Type | Indoor: ANSI/ICEA S-83-596 |
| Connector Assembly Type | MTP to MTP |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | NFPA 262, National Electrical Code (NEC), OFNP, CSA FT-6 |
| Environmental Conditions | - |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Design | - |
| Fiber Count | 24 |
| Outer Jacket Color | Aqua |
| Polarity | Universal, TIA-568 Type-B |
| Strain-Relief Bracket Type | 1 |
| Fiber Type | Multimode |
| Mechanical Specifications | - |
| Nominal Outer Diameter | 7.7 mm ± 0.3mm (0.3 in ± 0.01in) |
| Max. Tensile Strength for Installation | 660 N (148.37 lbf) |
| Min. Bend Radius Installation | 115.5 mm (4.55 in) |
| Min. Bend Radius Operation | 38.5 mm (1.52 in) |
| Minimum Conduit Size with 18-in Elbow | 63.5 mm (2.5 in) |
| Optical Characteristics | - |
| Fiber Code | T |
| Fiber Type | Multimode |
| Performance Option Code | 80 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 2000 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 600 MHz*km |
| Serial 10 Gigabit Ethernet | 300 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM3 |
| Specifications - Connector A | - |
| Insertion Loss, Max. | 0.25 dB |
| Connector Type | MTP (non-pinned) |
| Ferrule Material | Composite |
| Reflectance | < -20 dB |
| Specifications - Connector B | - |
| Insertion Loss, Max. | 0.25 dB |
| Connector Type | MTP (non-pinned) |
| Ferrule Material | Composite |
| Reflectance | < -20 dB |
| Pulling Grip - Connector A | - |
| Pulling grip | Yes |
| Tensile Strength | 440 N (98.92 lbf) |
| Min. Duct Size Diameter | 64 mm (2.52 in) |
| Grip Outer Diameter | 41 mm (1.61 in) |
| Ordering Information | - |
| Weight | 50 kg/km (33.6 lb/1000 ft) |
| Reel Diameter | 23.5 in |
| Reel Width | 5 in |
| Units per Delivery | 1/1" |
| Furcation - Connector A | - |
| Furcation Type | EDGE Size 1, 14.7 mm x 14.7 mm x 108.6 mm |
| Leg Color | Aqua |
| Leg Diameter | 2 mm (0.08 in) |
| Leg Length | 838 mm -0 / +76mm (32.99 in -0 / +2.99in) |
| Furcation - Connector B | - |
| Furcation Type | EDGE Size 1, 14.7 mm x 14.7 mm x 108.6 mm |
| Leg Color | Aqua |
| Leg Diameter | 2 mm (0.08 in) |
| Leg Length | 838 mm -0 / +76mm (32.99 in -0 / +2.99in) |
| ECCN | EAR99 |
| Country of Origin | MX - Mexico |
| Length | 36.58 m. |
| Jacket Color | Aqua |
| No. of Connectors | 2 |
| Connector Configurations | MTP to MTP |
| Fiber Category | Multimode - OM3 |
