Brand: Corning
|
SKU:
10523249

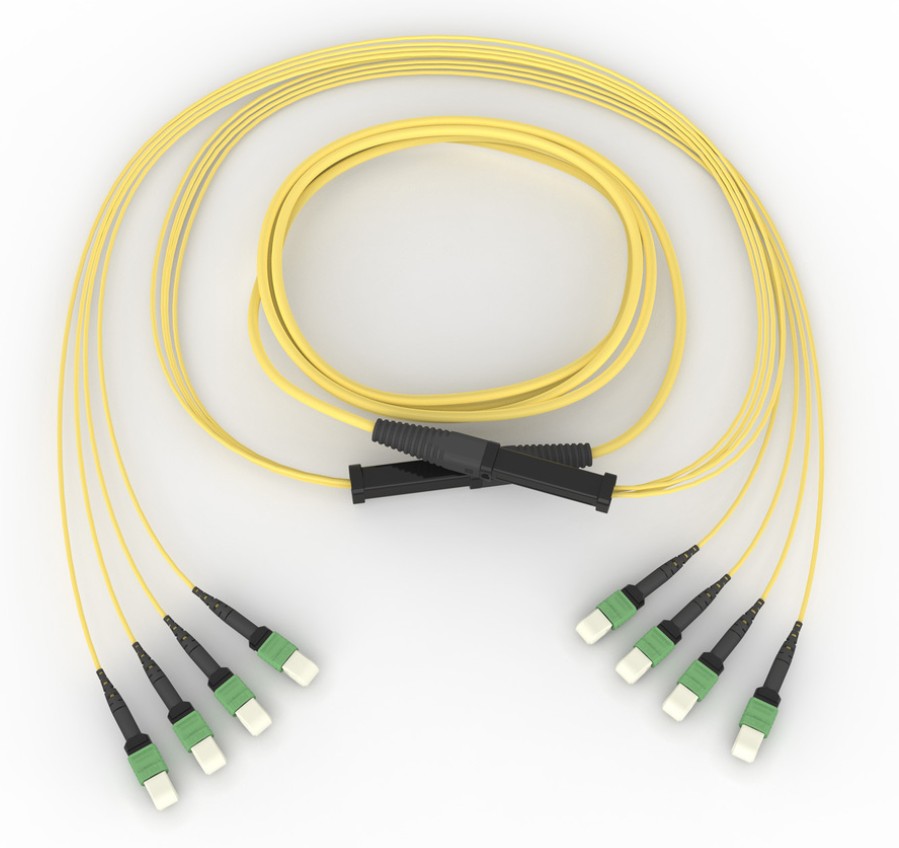

Corning G909072GPNDDU50 | EDGE MTP Trunk 72F, Bend-Improved Single-Mode (OS2), 50 ft
Regular price
$5,333.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Corning G909072GPNDDU50 | EDGE MTP Trunk 72F, Bend-Improved Single...
Regular price
$5,333.25
Unit price
Description
Description
Corning G909072GPNDDU50 | EDGE MTP Trunk 72F, Bend-Improved single-mode (OS2), 50 ft
Corning - G909072GPNDDU50 - Features
- Snap-in strain-relief clips
- Small outer diameter
- Low-loss connectivity
- Bend-improved fibre
- Corning CleanAdvantage technology and optimized dust cap
Specifications
Specifications
Corning - G909072GPNDDU50 - Specifications
| EAN Code | 4056418687742 |
|---|---|
| Flame Rating | Plenum (OFNP) |
| Fiber Category | Bend-improved Single-Mode (OS2) |
| Cable Assembly Type | EDGE™ Trunk |
| Environment | Indoor |
| Application | Data Center LAN/SAN |
| Connector Assembly Type | MTP to MTP |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Fiber Count | 72 |
| Polarity | Universal, TIA-568 Type-B |
| Nominal Outer Diameter | 10.5 mm ± 0.3mm |
| Max. Tensile Strength for Installation | 660 N |
| Min. Bend Radius Installation | 157.5 mm |
| Min. Bend Radius Operation | 52.5 mm |
| Weight | 93 kg/km |
| Minimum Conduit Size with 18-in Elbow | 77 mm |
| Insertion Loss, Max. | 0.35 dB |
| Boot Color | Black |
| Connector Type | MTP® (non-pinned) |
| Ferrule Material | Composite |
| Reflectance | < -65 dB |
| Length | 100 ft |
| Cable Weight | 93 kg/km |
