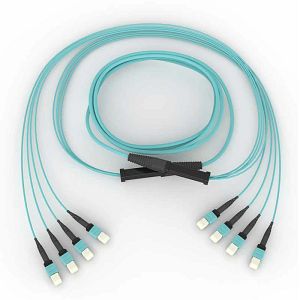

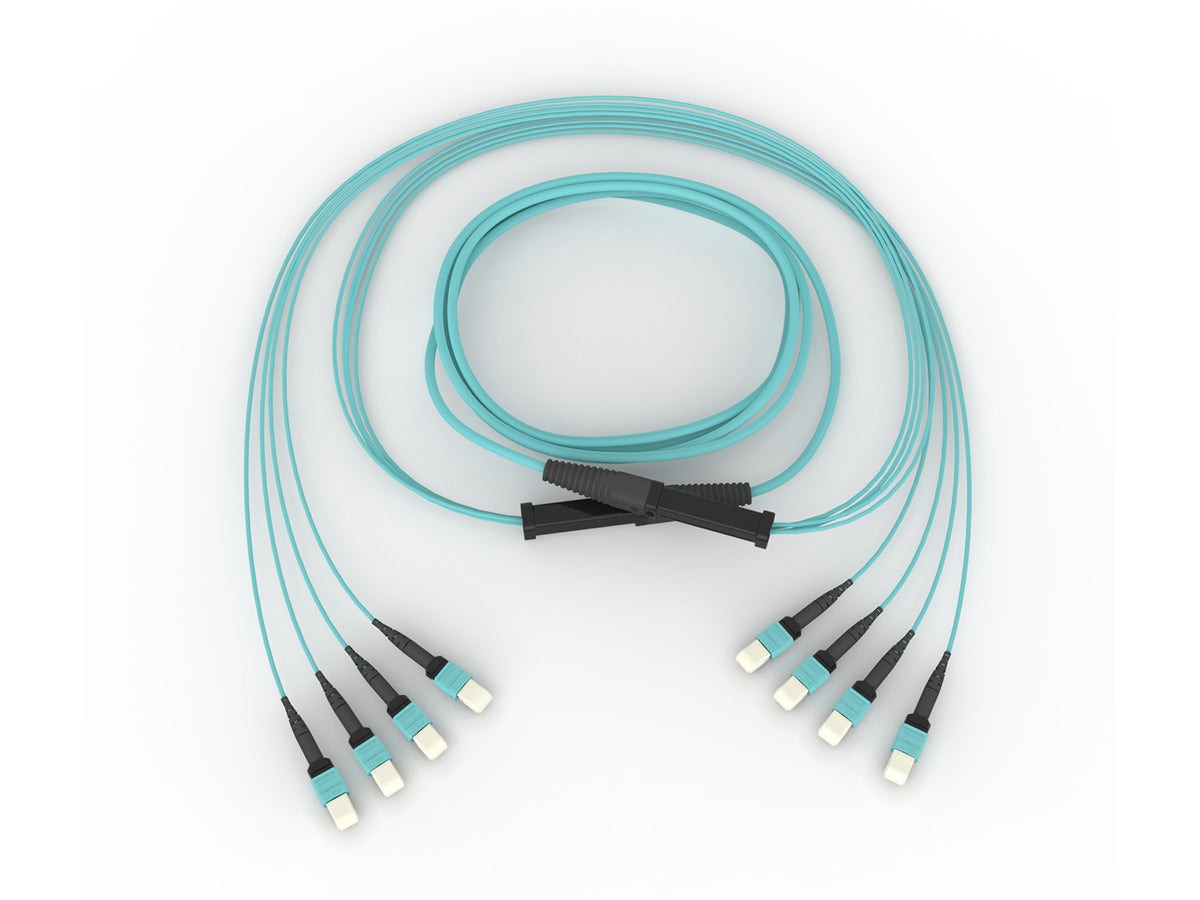

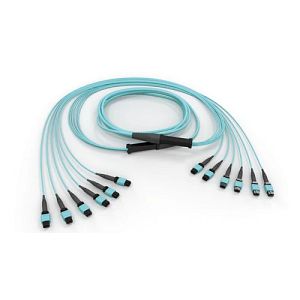

Corning GE5E548QPNDDU100F | EDGE8 MTP Trunk
Regular price
$6,319.15
Unit price
Brand: Corning
|
SKU:
674983
Regular price
$6,319.15
Unit price
Description
Description
Corning GE5E548QPNDDU100F | EDGE8 MTP Trunk 48F, 50 µm multimode (OM4), 100 ft
Corning - GE5E548QPNDDU100F - Features
- Snap-in strain-relief clips
- Provide easier cable management
- Small outer diameter
- Improves the cable tray fill ratio and allows for improved airflow
- Low-loss connectivity
- Enables system design flexibility
- Bend-improved fibre
- Allows tighter cable bends for slack storage and routing, less risk of downtime due to pinched or bent cables
- Corning CleanAdvantage technology and optimised dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
- Snap-in strain-relief clips
- Provide easier cable management Small outer diameter
- Improves the cable tray fill ratio and allows for improved airflow Low-loss connectivity
- Enables system design flexibility Bend-improved fiber
- Allows tighter cable bendsor slack storage and routing, less risk of downtime due to pinched or bent cables Corning CleanAdvantage technology and optimized dust cap
- Eliminates the need for scoping and cleaning prior to initial field connection
Specifications
Specifications
Corning - GE5E548QPNDDU100F - Product Categories
- Shop by Manufacturer/Corning
- Communications
- Fiber Optic Cabling Infrastructure
- Fiber Optic Cable Assemblies
- Fiber Optic Cable Assemblies
- Indoor Cable Assemblies
Corning - GE5E548QPNDDU100F - Specifications
| General Specifications | - |
|---|---|
| Product Number | GE5E548QPNDDU100F |
| Flame Rating | Plenum (OFNP) |
| Fiber Category | 50 µm MM (OM4) |
| Cable Assembly Type | EDGE8 Trunk |
| Environment | Indoor |
| Cable Type | Indoor: ANSI/ICEA S-83-596 |
| Connector Assembly Type | MTP to MTP |
| Standards | - |
| RoHS | Free of hazardous substances according to RoHS 2011/65/EU |
| Approvals and Listings | NFPA 262, National Electrical Code (NEC), OFNP, CSA FT-6 |
| Standards | - |
| Fiber Standards | TIA/EIA-492AAAC-A, Tested with minEMBc method to TIA/EIA-455-220, IEC 60793-2-10 Type A1a.2 Ed.2.0, IEC 60793-1-49 Ed.2.0, ITU-T G.651, ISO/IEC 11801 Ed.2.2 Cat. OM3 |
| Environmental Conditions | - |
| Temperature Range, Installation | -5 °C to 50 °C (23 °F to 122 °F ) |
| Temperature Range, Operation | -10 °C to 60 °C (14 °F to 140 °F ) |
| Design | - |
| Fiber Count | 48 |
| Outer Jacket Color | Aqua |
| Polarity | Universal, TIA-568 Type-B |
| Fiber Type | Multimode |
| Mechanical Specifications | - |
| Min. Bend Radius Installation | 121.5 mm (4.78 in) |
| Min. Bend Radius Operation | 40.5 mm (1.59 in) |
| Weight | 57.6 kg/km (38.71 lb/1000 ft) |
| Optical Characteristics | - |
| Fiber Code | Q |
| Fiber Type | Multimode |
| Fiber Compliance | IEC 60793-2-10 for A1a class 50/125 multimode fibers; TIA/EIA 492AAAD (OM4); ITU-T Recommendation G.651; ISO/IEC 11801 Ed.2.2 Grade OM4 |
| Fiber Core Diameter | 50 µm |
| Minimum Effective Modal Bandwidth (EMB) | 4700 MHz*km / - |
| Maximum Attenuation | 2.8 dB/km / 1.0 dB/km |
| Min. Overfilled Launch (OFL) Bandwidth | 1500 MHz*km / 500 MHz*km |
| Serial 1 Gigabit Ethernet | 1000 MHz*km / 550 MHz*km |
| Parallel Optics 40 Gigabit Ethernet | 150 m / - |
| Serial 10 Gigabit Ethernet | 550 MHz*km / - |
| Wavelengths | 850 nm / 1300 nm |
| Fiber Category | OM4 |
| Specifications - Connector A | - |
| Insertion Loss, Max. | 0.25 dB |
| Boot Color | Black |
| Connector Type | MTP (pinned) |
| Ferrule Material | Composite |
| Reflectance | < -20 dB |
| Specifications - Connector B | - |
| Insertion Loss, Max. | 0.25 dB |
| Boot Color | Black |
| Connector Type | MTP (pinned) |
| Ferrule Material | Composite |
| Reflectance | < -20 dB |
| Pulling Grip - Connector A | - |
| Pulling grip | Yes |
| Tensile Strength | 440 N (98.92 lbf) |
| Min. Duct Size Diameter | 89 mm (3.5 in) |
| Grip Outer Diameter | 56 mm (2.2 in) |
| Ordering Information | - |
| Packing Type | Plastic reel |
| Package Contents | 2x EDGE clip size 2 single stack, 1x EDGE clip size 2 dou- ble stack, test reports are online |
| Packaging Method | Plastic reel |
| Units per Delivery | 1/1" |
| Furcation - Connector A | - |
| Furcation Type | EDGE Size 2, 20 mm x 20 mm x 108.6 mm |
| Leg Color | Aqua |
| Leg Diameter | 2 mm (0.08 in) |
| Leg Count | 6 |
| Plug Height | 20 mm (0.79 in) |
| Plug Width | 20 mm (0.79 in) |
| Plug Depth | 108.6 mm (4.28 in) |
| Leg Length | 840 mm -0 / +76mm (33.07 in -0 / +2.99in) |
| Furcation - Connector B | - |
| Furcation Type | EDGE Size 2, 20 mm x 20 mm x 108.6 mm |
| Leg Color | Aqua |
| Leg Diameter | 2 mm (0.08 in) |
| Leg Count | 6 |
| Leg Length | 840 mm -0 / +76mm (33.07 in -0 / +2.99in) |
| ECCN | EAR99 |
| Length | 30 m. |
| Jacket Color | Aqua |
| No. of Connectors | 12 |
| Connector Configurations | MTP to MTP |
| Fiber Category | Multimode - OM4 |
